Description
Crafted for high-performance campus and branch deployments, the Juniper Networks EX4100 Multigigabit Ethernet Switch is an AI-driven, cloud-ready access switching platform. The switch offers Multigigabit speeds of 100M/1/2.5/5/10GbE and PoE++ capability for Wi-Fi 6E access points. It’s differentiated by features such as EVPN-VXLAN, micro segmentation using group-based policies (GBP), MACsec AES-256, Power over Ethernet (PoE++), Precision Timing Protocol – Transparent Clock, and flow-based telemetry.
As part of the underlying infrastructure for Juniper Mist™ Wired Assurance, the EX4100 Multigigabit Ethernet Switch is easy to onboard, configure, and manage. The Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI™ simplifies operations and improves visibility into the performance of connected devices.

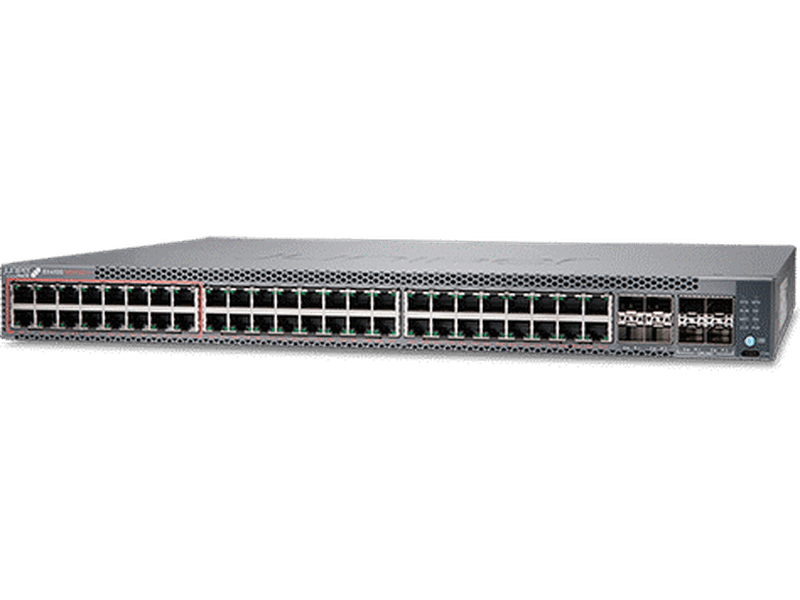

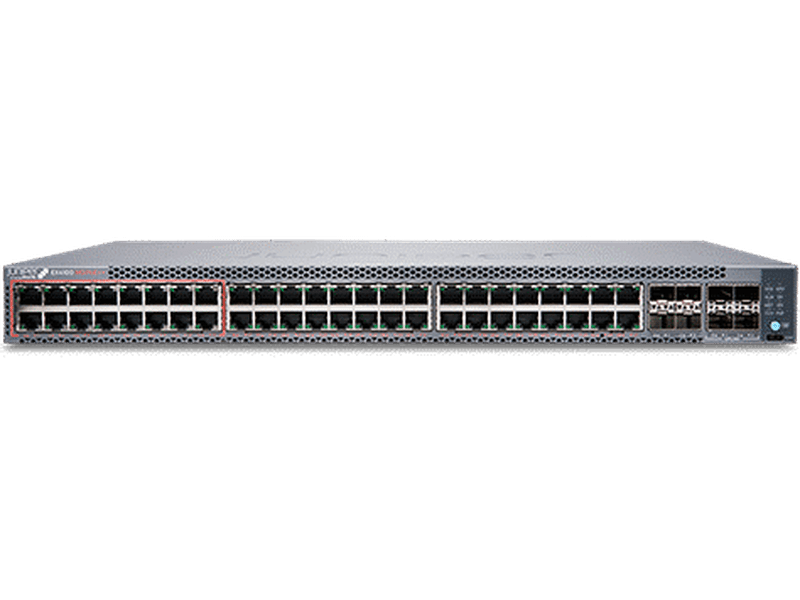

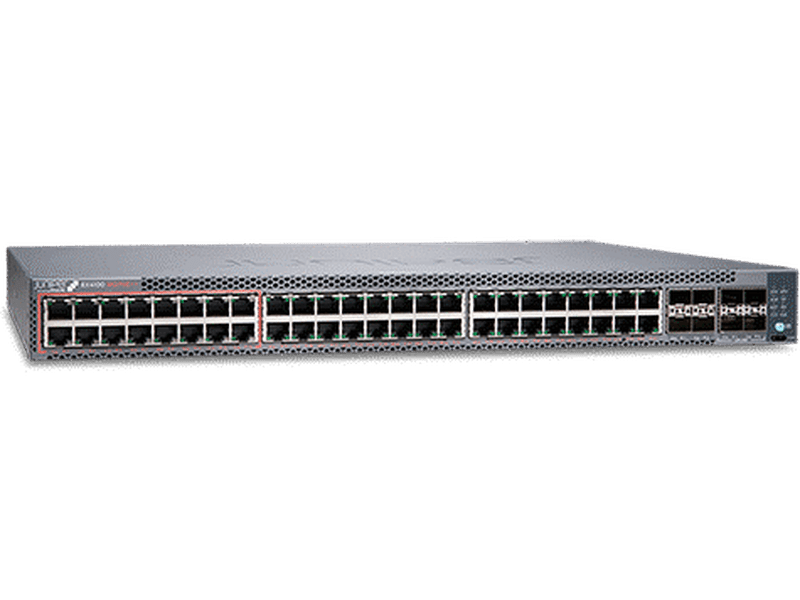

Multigigabit 48 port, PoE++ (up to 90 W) switch with 16x100 MB/1GbE/2.5GbE + 32x10 MB/100 MB/1GbE, 4x10GbE uplinks, 4x25GbE stacking/uplink ports, MACsec AES256, redundant fans, 1x JPSU-920-AC-AFO included with Standard SW, optics sold separately, TAA-compliant.
Specifications
Form factor | Fixed 1 U access |
Port density | EX4100-48MP: 16 x 100M/1/2.5GbE + 32 x 1GbE, 4 x 1/10GbE uplinks, and 4 x 10/25GbE stacking/uplinks |
Wired Assurance | Yes |
Campus Fabrics | 10-member Virtual Chassis, EVPN-VXLAN |
Cloud Managed | Yes |
Dimensions (W x H x D) | 1.72” (H) x 17.4” (W) x 13.8” (D) |
Backplane speed | 200Gbps |
Data rate | EX4100-48MP:212/424 Gbps |
Throughput | EX4100-48MP: 315 Mpps |

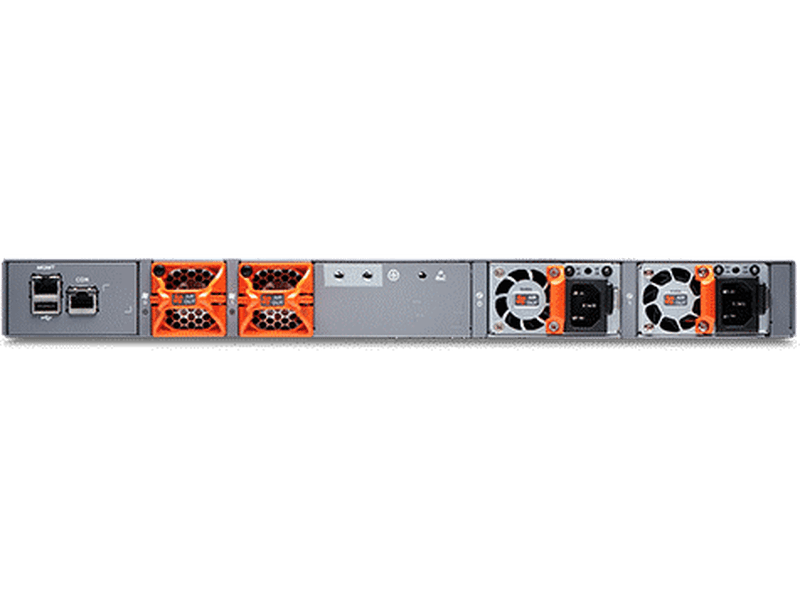

Resiliency | Redundant internal load-sharing power supplies; redundant variable speed fans |
Traffic monitoring | sFlow, IPFIX, flow based telemetry |
Quality-of-service (QoS) queues/port | 12 (8 unicast, 4 multicast) |
MAC addresses | 64000 |
Jumbo frames | 9216 |
IPv4 unicast/multicast routes | 16000 |
IPv6 unicast/multicast routes | 8000 |
Number of VLANs | N/A |
ARP entries | 32000 |
