Description
Designed for branch deployments, the EX4100-F Ethernet Switches delivers a high-performance, cost-effective solution. With a -12 port fan-less compact, -24 port and -48 port in 1U, the EX4100-F is AI-driven, cloud-ready access switching platform. It’s differentiated by features such as EVPN-VXLAN, micro-segmentation using group-based policies (GBP), Power over Ethernet (PoE+) and flow-based telemetry.
Additionally, EX4100-F-12P (compact and fan-less) can be powered by an external Power Sourcing Equipment (PSE) as well as provide Power over Ethernet out to connected Powered Devices (PDs).
As part of the underlying infrastructure for Juniper Mist™ Wired Assurance, the EX4100-F is easy to onboard, configure, and manage. The Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI™ simplifies operations and improves visibility into the performance of connected devices.

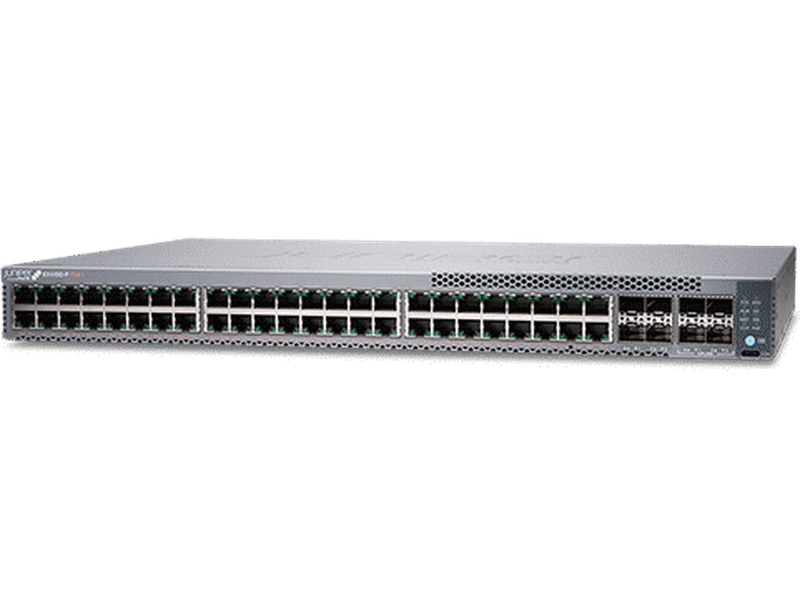

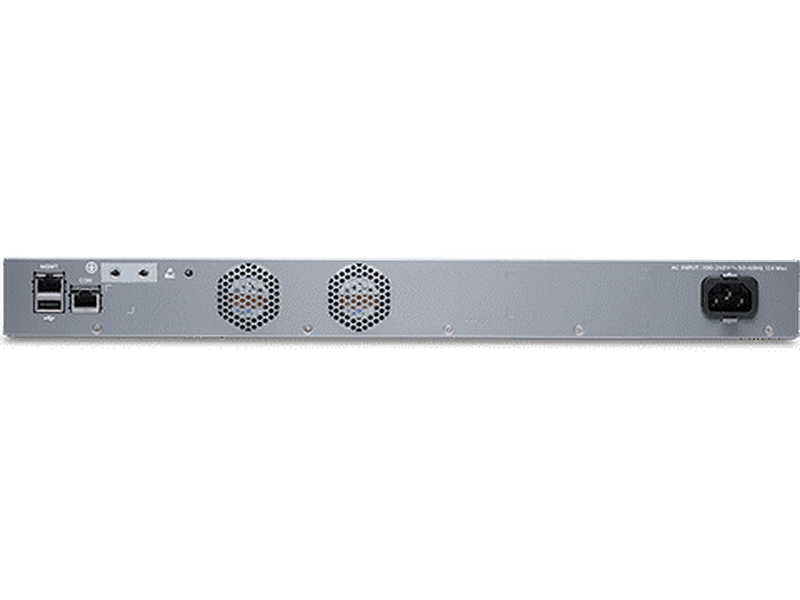

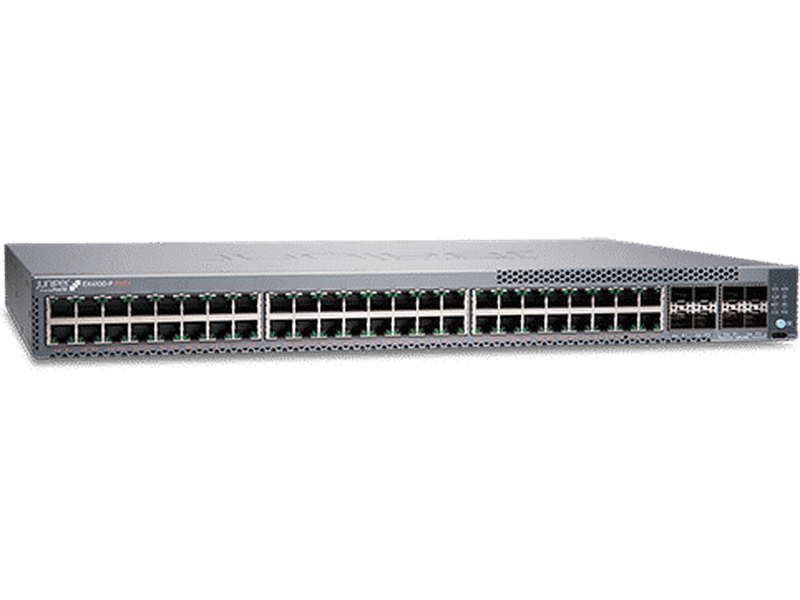

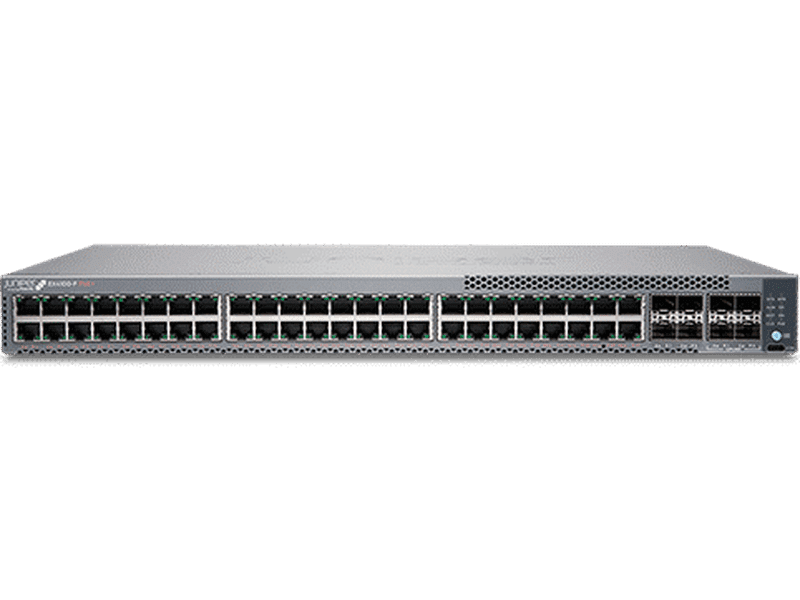

48-port 10/100/1000BASE-T PoE+ switch, 4x1GbE/10GbE SFP/SFP+ uplinks, 4x10GbE stacking/uplink ports, with Standard SW, optics sold separately, TAA compliant
Specifications
Form factor | Fixed 1 U access |
Port density | EX4100-F-48P/T: 48 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10GbE stacking/uplinks |
Wired Assurance | Yes |
Campus Fabrics | 10-member Virtual Chassis, EVPN-VXLAN |
Cloud Managed | Yes |
Dimensions (W x H x D) | EX4100-F-48P/T: 1.72” (H) x 17.4” (W) x 12.2” (D) |
Backplane speed | 80 Gbps |
Data rate | EX4100-F-48P/T: 128/256 Gbps |
Throughput | EX4100-F-48P/T: 190 Mpps |
Resiliency | Integrated Power supply and fans |
Traffic monitoring | sFlow, IPFIX, flow based telemetry |
Quality-of-service (QoS) queues/port | 12 (8 unicast, 4 multicast) |
MAC addresses | 64000 |
Jumbo frames | 9216 bytes |
IPv4 unicast/multicast routes | 16000 |
IPv6 unicast/multicast routes | 8000 |
Number of VLANs | N/A |
ARP entries | 32000 |
