Kingston 16GB PC4 DDR4 2666MHz 2Rx8 RDIMM Registered ECC Memory

Save $10.00
KingstonSKU: KSM26RD8/16HDI

Kingston Server 16GB (1x16GB) PC4-21300 (2666MHz) ECC Reg DDR4, CL19, 1.2v, Dual Rank, Single Stick (Hynix D-DIE)

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$99.00 Regular price$109.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

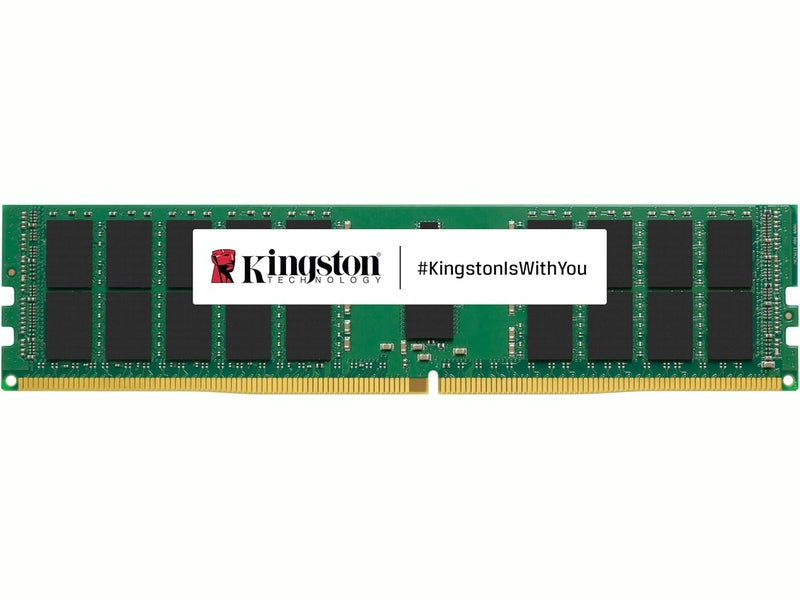

Kingston 16GB PC4 DDR4 2666MHz 2Rx8 RDIMM Registered ECC Memory - KSM26RD8/16HDI





Kingston's KSM26RD8/16HDI is a 2G x 72-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered with parity, 2Rx8, ECC memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

  • Power Supply: VDD = 1.2V
  • VDDQ = 1.2V
  • VPP = 2.5V
  • VDDSPD = 2.41V to 2.75V
  • Functionality and operations comply with the DDR4 SDRAM datasheet
  • 16 internal banks
  • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
  • Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Supports ECC error correction and detection
  • On-Die Termination (ODT)
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive.
  • Per DRAM Addressability is supported
  • Internal Vref DQ level generation is available
  • Write CRC is supported at all speed grades
  • CA parity (Command/Address Parity) mode is supported



Specifications

CL(IDD) 19 cycles
Row Cycle Time (tRCmin) 46.25 ns (min.)
Refresh to Active/Refresh Command Time (tRFCmin) 350 ns (min.)
Row Active Time (tRASmin) 32 ns (min.)
Maximum Operating Power *
UL Rating 94 V - 0
Operating Temperature 0°C to +85°C
Storage Temperature -55°C to +100°C
