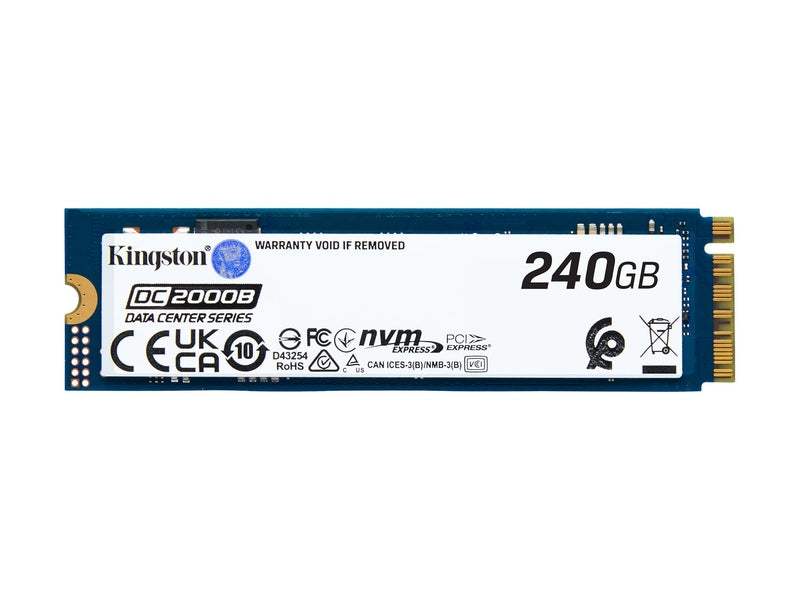

Kingston DC2000B 240GB PCIe 4.0 NVMe M.2 SSD

KingstonSKU: SEDC2000BM8/240G

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$244.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

Overview

DC2000B PCIe 4.0 NVMe M.2 SSDEnterprise Class for Server Applications

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using the latest Gen 4x4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminum heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty.

  • PCIe 4.0 NVMe Gen 4x4 performance
  • Hardware-based power loss protection

Key Features

A Kingston DC2000B SSD against a plain background indicating motion and speed.

PCIe 4.0 NVMe Performance

Utilizes PCIe Gen 4x4 lanes for high-performance speeds.

A shield with a lightning bolt struck through by a single line, indicating no power surges or failures.

Specifications

Form Factor M.2 2280
Interface PCIe 4.0 x4 NVMe
Capacities1 240GB, 480GB, 960GB
NAND 3D TLC
Sequential Read/Write 240GB – 4500/400 MBs
480GB – 7000/800 MBs
960GB – 7000/1300 MBs
Steady-State 4k Read/Write2 240GB – 260000/18000 IOPS
480GB – 530000/32000 IOPS
960GB – 540000/47000 IOPS
Total Bytes Written (TBW)3 240GB – 175.2 TBW
480GB – 350.4 TBW
960GB – 700.8 TBW
Latency Read (Avg) 240GB-960GB: 70µs
Latency Write (Avg) 240GB – 53µs
480GB – 29µs
960GB – 20µs
Power Loss Protection (Power Caps) Yes
Enterprise SMART tools Reliability tracking, usage statistics, SSD life remaining, wear leveling, temperature
Endurance 240GB — (0.4 DWPD/5yrs)4
480GB — (0.4 DWPD/5yrs)4
960GB — (0.4 DWPD/5yrs)4
Power Consumption 240GB: Average Read: 2.97W Average Write: 4.02W Max Read: 3.01W Max Write: 4.09W
480GB: Average Read: 3.22W Average Write: 5.60W Max Read: 3.29W Max Write: 5.77W
960GB: Average Read: 3.26W Average Write: 7.36W Max Read: 3.36W Max Write: 7.80W
Storage temperature -40°C ~ 85°C
Operating temperature 0°C ~ 70°C
Dimensions 80mm x 22mm x 8.3mm
Weight 240GB – 9g
480GB – 10g
960GB – 11g
Vibration non-operating 20G Peak (10–2000Hz)
MTBF 2 million hours
Warranty/support5 Limited 5-year warranty with free technical support
