Description

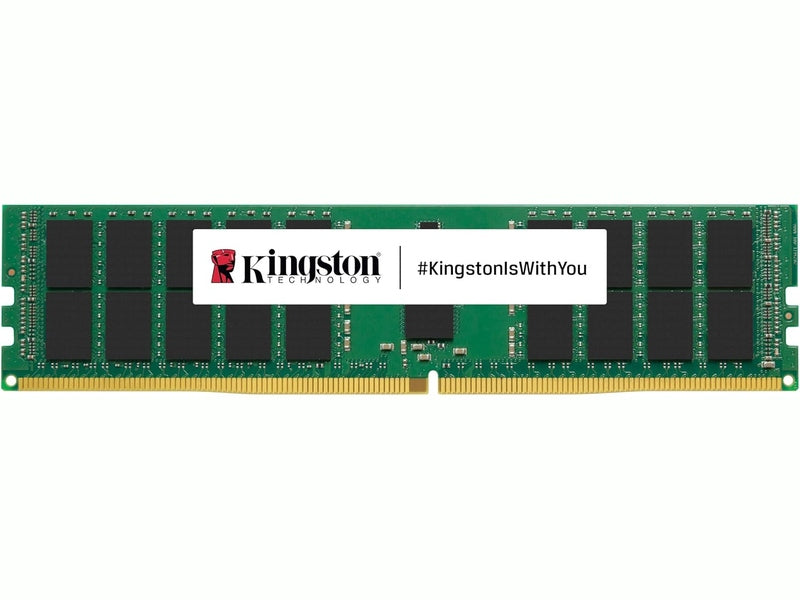

Kingston Server Premier 8GB DDR4 2933MHz ECC Reg CL21 DIMM - KSM29RS8/8HDR
Kingston's KSM29RS8/8HDR is a 1G x 72-bit (8GB) DDR4-2933 CL21 SDRAM (Synchronous DRAM) registered with parity, 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2933 timing of 21-21-21 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.2V
- VDDQ = 1.2V
- VPP = 2.5V
- VDDSPD = 2.41V to 2.75V
- Functionality and operations comply with the DDR4 SDRAM datasheet
- 16 internal banks
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
- Data transfer rates: PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop)
- Supports ECC error correction and detection
- On-Die Termination (ODT)
- Temperature sensor with integrated SPD
- This product is in compliance with the RoHS directive
- Per DRAM Addressability is supported
- Internal Vref DQ level generation is available
- Write CRC is supported at all speed grades
- CA parity (Command/Address Parity) mode is supported
Specifications
CL(IDD) | 21 cycles |
Row Cycle Time (tRCmin) | 46.32 ns (min.) |
Refresh to Active/Refresh Command Time (tRFCmin) | 350 ns (min.) |
Row Active Time (tRASmin) | 32 ns (min.) |
Maximum Operating Power | * |
UL Rating | 94 V - 0 |
Operating Temperature | 0°C to +85°C |
Storage Temperature | -55°C to +100°C |
