Description
Overview

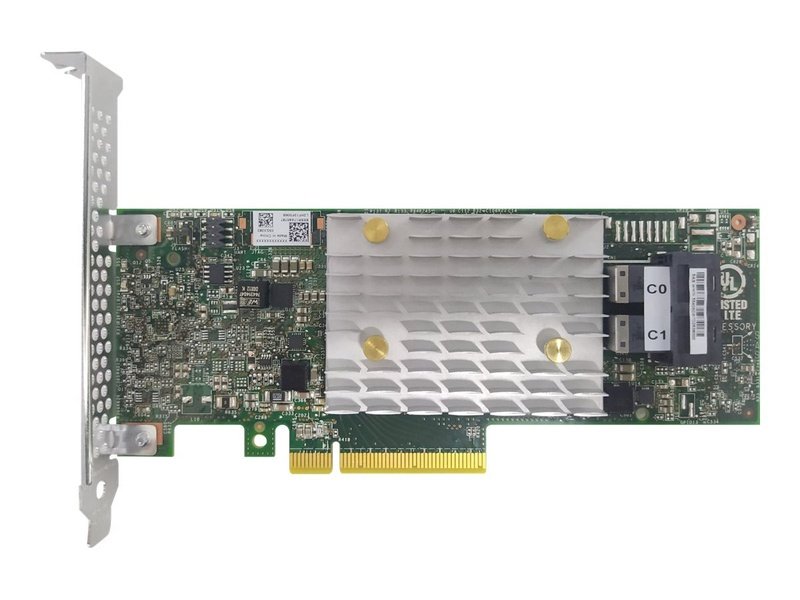

The ThinkSystem RAID 5350-8i adapter is an entry-level 12 Gb SAS/SATA internal RAID adapter that offers a cost-effective RAID solution for small to medium business customers. This cacheless adapter supports RAID levels 0/1/10/5, and include support for Lenovo management tools.
Specifications
The ThinkSystem RAID 5350-8i adapter is an entry-level 12 Gb SAS/SATA internal RAID adapter that offers a cost-effective RAID solution for small to medium business customers. This cacheless adapter supports RAID levels 0/1/10/5, and include support for Lenovo management tools.
Specifications
Product Description | Lenovo ThinkSystem 5350-8i - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8 |
Device Type | Storage controller - plug-in card - low profile |
Bus Type | PCIe 3.0 x8 |
Interface | SATA 6Gb/s / SAS 12Gb/s |
Data Transfer Rate | 12 Gbit/s |
Channel Qty | 8 |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
System Requirements | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Ubuntu 18.04 LTS, SUSE Linux Enterprise Server 12 SP5, Ubuntu 20.04 LTS, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 15 SP2, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 7.9, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
Dimensions (WxDxH) | 16.7 cm x 6.4 cm |
Manufacturer Warranty | 1-year warranty |
Designed For | ThinkSystem SR630 V2 7Z70, 7Z71; SR650 V2 7D15, 7Z72, 7Z73 |
