Description

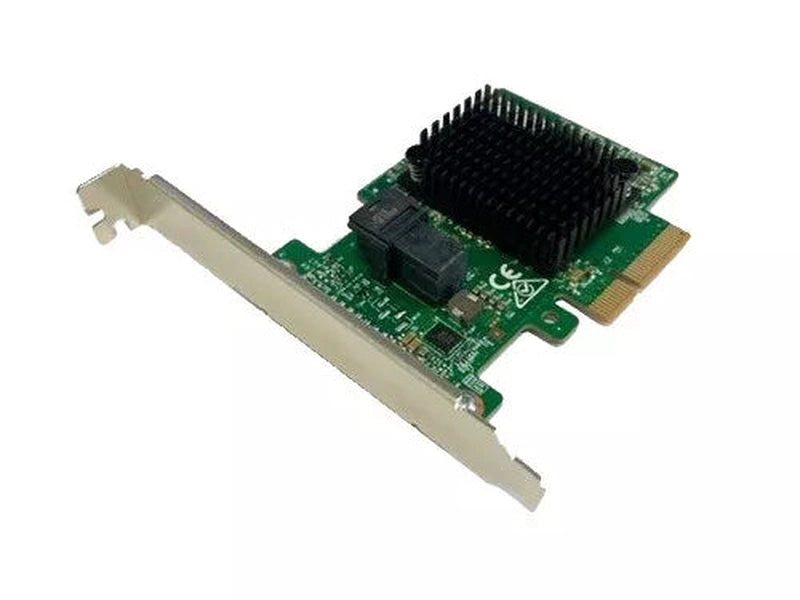

Lenovo ServeRAID M1210 SAS/SATA Controller 00JY194 00JY196
Spare Part Number: 00JY196
New Never Used: Brand New Taken Out From Lenovo Server
Product Description
Technical specifications
The Serve RAID M1210 SAS/SATA Controller has the following specifications:
- PCI Full Height Profile - MD2 form factor
- Four internal 12 Gbps SAS/SATA ports
- One internal mini-SAS HD connectors (SFF-8643)
- Supports 12, 6, and 3 Gbps SAS and 6 and 3 Gbps SATA data transfer rates
- Up to 12 Gbps throughput per port
- PCI Express 3.0 x4 host interface
- Support both RAID and JBOD
- Support for RAID levels 0, 1, and 10 standard
- Zero Controller Cache, no battery/flash backup
- Support for SAS and SATA hard disk drives (HDDs) and solid-state drives (SSDs)
- Support for simple swap and hot swap drives
- Support for intermixing SAS and SATA HDDs and SSDs. Mixing different types of drives in the same array (drive group) not supported.
- Support for virtual drive sizes greater than 2 TB
- Compliant with Disk Data Format (DDF) configuration on disk (COD)
- S.M.A.R.T. support
