Description

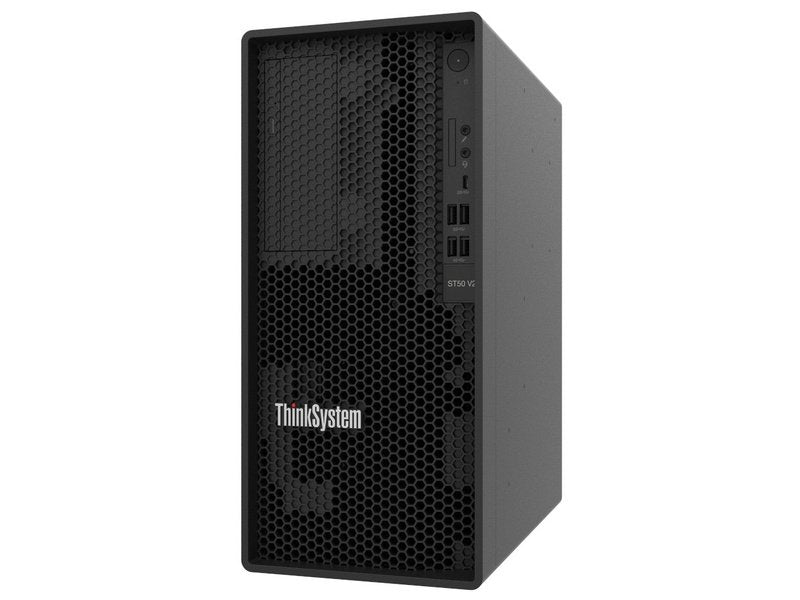

Lenovo ThinkSystem ST50 V2 Tower Server [7D8JA00LAU]
Intel Xeon E-2324G 4-Core, 8GB TruDDR4 3200 MHz, 2-Bay 3.5" & 1-Bay 2.5", 300W Power Supply, 3 year warranty
Quick Spec
Components | Specification |
Processor/Speed | Intel Xeon E-2324G 3.1GHz |
Processor Cores | 4 |
Memory |
1x8GB installed (up to 128 GB using 4x 32 GB UDIMMs) ECC |
Drive Bays/Drives | 8x 2.5-in HS / Open bay |
Maximum internal storage |
HDDs and SSDs can be installed in the same server but are not supported in the same RAID volume |
Drive Controller | SATA |
Power Supply |
300W PS installed One fixed power supply, either 300W (80 PLUS Gold) or 500W (80 PLUS Platinum) power supply. |
Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi. See the Operating system support section for specifics. |
Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
Powerful and high value
An ideal first server for your growing business, remote/branch office, or retail location, the Lenovo ThinkSystem ST50 V2 enhanced performance increases productivity.
The ThinkSystem ST50 V2 boasts the improved operation of the latest Intel® Xeon® E-2300 processors. With a 17% increase in performance the ThinkSystem ST50 V2 offers professional-level capabilities at an entry-level price-point. High value versus a workstation with the benefits of a resilient server.
Flexible
The ThinkSystem ST50 V2 adds value and flexibility for your growing business by providing support for three PCIe slots with support of single NVIDIA GPU, and various high bandwidth network adapters along with an array of compatible storage drives. It can be scaled to fit your growing business, provides high reliability, and uses common components to reduce costs.
Lenovo’s XClarity (USB) provisioning manager enables easy setup and firmware upgrades while Intel Active Management Technology (AMT)saves time and reduces costs by monitoring system health and preventing data disruption.
Energy-efficient, quiet, yet powerful
Designed for discretion the ST50 V2’s compact size, flexible mounting options, and whisper-quiet acoustics allow it to be placed in an office environment without disruption
It´s energy-efficient with a TDP of no more than 95W and supports up to 8 core performance. Providing optimal performance for increased productivity and energy cost-savings.
Specifications
Components | Specification |
Intel Xeon Processor | Xeon E-2324G 4C 65W 3.1G |
Memory | 1x 8GB |
Drive Control | SATA |
Drive bays Drivres | 2x3.5"+ 1x2.5" bays; Open bay |
Power supply & cord | 300W / Yes |
Machine type | 7D8J - 3 year warranty |
Form factor | Tower (can be installed in a rack with the available Rack Mount Kit) |
Processor | One Intel processor. Choose from: |
Intel Xeon E-2300 Series processors ("Rocket Lake-E") up to to 8 cores, with core speeds up to 3.7 GHz | |
Chipset | Intel C256 chipset ("Tiger Lake") part of the "Tatlow" platform |
Memory | Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) or 2666 MHz (Pentium processors). Support ECC UDIMMs. |
Memory maximums | Up to 128 GB using 4x 32 GB UDIMMs. |
Memory protection | Error-correcting code (ECC) |
Disk drive bays | Up to 3x non-hot swap (NHS) drive bays: |
2x 3.5-inch NHS drive bays supporting HDDs or SSDs | |
1x 2.5-inch NHS drive bay supporting an SSD | |
The server can be configured without any HDDs or SSDs. The server also supports 1x NVMe M.2 drive installed in a socket on the system board as a boot drive. | |
Maximum internal storage | 3.5-inch drives: |
16TB using 2x 8TB 3.5-inch HDDs | |
1.92TB using 2x 960GB 3.5-inch SATA SSDs | |
2.5-inch drives: | |
960GB using 1x 960GB 2.5-inch SATA SSDs | |
HDDs and SSDs can be installed in the same server but are not supported in the same RAID volume | |
Optional Storage controller | RAID 5350-8i adapter |
Optical drive | Optional slim DVD-RW drive in dedicated bay. |
Network interfaces | One integrated Gigabit Ethernet 1000BASE-T port (RJ-45) using Intel I219-LM controller. |
PCI Expansion slots | Three PCIe slots as follows: |
Slot 1: PCIe 4.0 x16 full-height half-length (FHHL) | |
Slot 2: PCIe 3.0 x1 FHHL | |
Slot 3: PCIe 3.0 x4 (physical connector is x16) FHHL | |
With a Pentium processor, Slot 1 is PCIe 3.0. | |
Ports | Front ports: |
Five USB ports | |
1x USB 3.2 G2 with USB-C connector (10Gbps) | |
2x USB 3.2 G2 (10Gbps) | |
2x USB 3.2 G1 (5Gbps) | |
Microphone port* | |
Headset port* | |

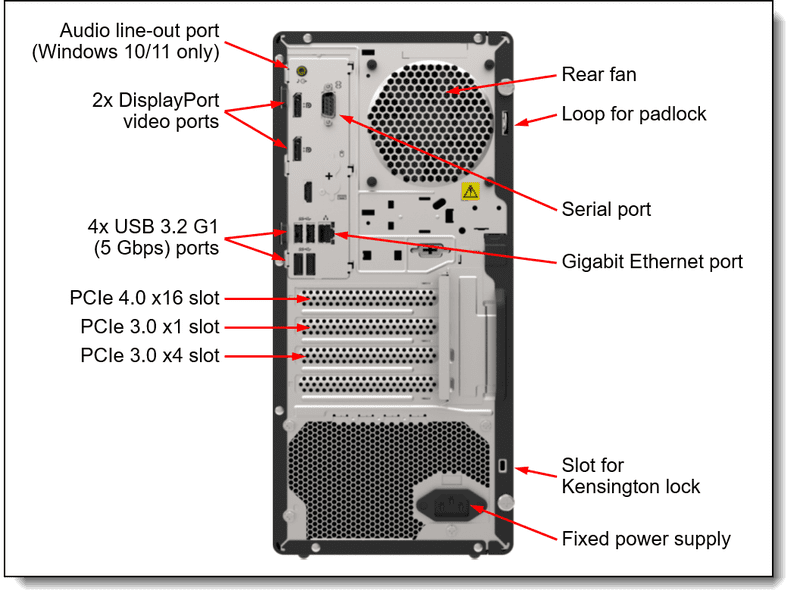

Rear ports: | |
Four USB ports (all USB 3.2 G1 (5Gbps) | |
Two DisplayPort video ports (require a processor with integrated graphics) | |
One RJ-45 Gigabit Ethernet port | |
One serial port | |
One audio line-out port* | |
* Windows 10 and Windows 11 only; some line noise is possible | |
Audio | Mono amplifier (speaker) mounted on the inside of the front bezel; Audio line-out port at the rear of the server; microphone and headset ports at the front of the server |
Cooling | Two fixed system fans. Additional fans attached to the processor and power supply. Supports ASHRAE A2 environments. |
Power supply | One fixed power supply, either 300W (80 PLUS Gold) or 500W (80 PLUS Platinum) power supply. |
Hot-swap parts | None |
Systems management | Power and drive activity LEDs. Intel Active Management Technology (AMT) 15.0 server management. Supports Integrated Lenovo XClarity Provisioning Manager Lite (USB memory key-based) for system setup and firmware upgrades. No support for XClarity Controller (XCC). |
Security features | Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 2.0. Optional Chassis intrusion switch. Padlock loop and Kensington cable slot for physical security. |
Video | Integrated Intel Graphics Technology (Intel GT) on most processors - see the Processors section. Two DisplayPort ports. Maximum resolution is 3840 x 2160 pixels (4K) at a refresh rate of 60Hz. On servers with a processor that does not have integrated graphics, the two DP ports are not connected and a separate GPU adapter is required. See GPU adapters for details. |
Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi. See the Operating system support section for specifics. |
Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
Dimensions | Width: 170 mm (6.7 in.), height: 376 mm (14.8 in.), depth: 316 mm (12.4 in.). See Physical and electrical specifications for details. |
Weight | Maximum: 9.4 kg (20.7 lb) |
