Description
Lenovo ThinkSystem SR250 V2 Server [7D7QA01EAU]
Intel Xeon E-2324G 4 Core, 16GB TruDDR4 3200MHz, 8-bay 2.5", 450W Power supply, 3 Year NBD Warranty
Powerful 1U server for your evolving needs
The ideal single-socket 1U rack server for growing businesses offering power, reliability, and flexibility for space constrained installations.
Quick Spec
Components | Specification |
Processor/Speed | Intel Xeon E-2324G 3.1GHz |
Processor Cores | 4 Cores (1/1) |
Memory | 1x16GB (1/4) installed (Up to 128 GB using 4x 32 GB UDIMMs.) |
Drive Bays/Drives | 8x 2.5-in HS / Open bay |
Maximum internal storage |
|
RAID | SATA |
Power Supply | 1x450W installed (1/2) |
Form factor | 1U rack |
Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. |
Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
Features
High reliability and security
The Lenovo ThinkSystem SR250 V2 offers reliability, and security without sacrificing performance. This single-processor rack server, in a compact 1U form factor, is built for expanding businesses or edge deployment.
With an increase in performance of up to 17% above previous generations, the next-generation Intel® Xeon® E-2300 processors provide higher workload performance at an entry-level price point.
Flexible, scalable and manageable
The ThinkSystem SR250 V2 offers flexibility via multiple configurations with TruDDR4 memory, GPU support, and an array of storage options. Ideal for IT infrastructure, web serving, virtualization, and edge applications.
The SR250 V2 includes the Lenovo XClarity Controller, that standardizes and automates server management tasks.
The XClarity Administrator virtualized application centrally manages your ThinkSystem servers, storage, and networking, lowering costs and speeding infrastructure provisioning.
Energy-efficient powerhouse
The ThinkSystem SR250 V2 provides enterprise-level, 8 core performance while using no more than 95W CPUs. It’s shorter-depth rack accommodates the space-constrained environments found in many SMB’s, remote/branch offices, and edge applications.
The ThinkSystem SR250 V2 is an ideal solution when your business needs a server to handle large workloads in a small footprint.
Specifications
Components | Specification |
Intel processor |
Xeon E-2324G 4C 65W 3.1G |
Memory | 1x 16GB |
Drive controller | SATA |
Drive bays/Drives | 8x 2.5-in HS / Open bay |
Slots | x8 LP, x8 FH, x8 Int |
Power supply(cord) |
1x 450W HS / 2 (Y) |
Machine type | 7D7Q - 3 year warranty |
Form factor | 1U rack-mount |
Processor | Intel Xeon E-2300 Series processors ("Rocket Lake-E") up to to 8 cores, with core speeds up to 3.7 GHz |
Chipset | Intel C256 chipset ("Tiger Lake") part of the "Tatlow" platform |
Memory |
Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) |
Memory maximum | Up to 128 GB using 4x 32 GB UDIMMs. |
Memory protection | Error-correcting code (ECC) |
Disk drive bays | Available configurations: |
10x 2.5-inch hot-swap SAS/SATA drive bays | |
8x 2.5-inch hot-swap SATA only, or SAS/SATA drive bays | |
4x 3.5-inch hot-swap SATA only, or SAS/SATA drive bays | |
4x 3.5-inch simple-swap drive bays, all SATA | |
4x 3.5-inch simple-swap drive bays, 3x SATA and 1x NVMe | |
In addition, the SR250 V2 supports two M.2 drives installed in an M.2 adapter which is installed in PCIe slot. | |
Maximum internal storage | 2.5-inch drives: |
9.6TB using 10x 960GB 2.5-inch SAS/SATA SSDs | |
18TB using 10x 1.8TB 2.5-inch HDDs | |
Controllers Options | ThinkSystem RAID 5350-8i PCIe 12Gb Adapter |
ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Adapter | |
Optical drive bays | No support. Use an external optical drive. |
Tape drive bays | No support |
Network interfaces | Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management. |
PCI Expansion slots | Two or three PCIe slots depending on the riser selected: |
Riser with two x8 slots: | |
Slot 1: PCIe G4 x8 (x8 slot, open-ended) 25W full-height half-length | |
Slot 2: PCIe G4 x8 (x16 slot, closed-ended) 25W full-height half-length | |
Slot 3 (internal slot): PCIe G3 x4 (x8 slot, closed-ended) 25W full-height half-length | |
Riser with one x16 slot: | |
Slot 1: Not connected | |
Slot 2: PCIe G4 x16 (x16 slot, closed-ended) 75W full-height half-length | |
Slot 3 (internal slot): PCIe G3 x4 (x8 slot, closed-ended) 25W full-height half-length | |
Note: Slots 1 and 2 are PCIe Gen 4 with a Xeon processor, and PCIe Gen 3 with a Pentium processor | |

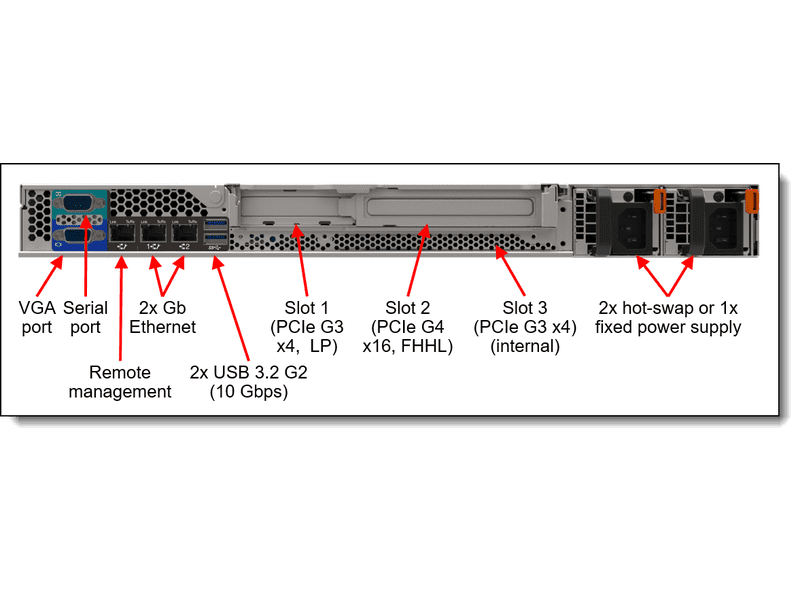

Ports | Front: |
One USB 3.2 G1 (5 Gb/s) port | |
One USB 2.0 port (also for XClarity Mobile connectivity for local systems management) | |
Optional VGA port | |
Rear: | |
Two USB 3.2 G2 (10Gb/s) ports | |
One VGA video | |
One RJ-45 systems management network port | |
Two RJ-45 GbE network ports | |
One serial port | |
Cooling | Four non-hot-swap system fans |
Power supply | Two hot-swap 450W redundant power supplies, 80 PLUS Platinum certified, Energy Star and ErP Lot 9 compliant (Energy Star and ErP Lot 9 only with Intel Xeon processors) |
Hot-swap parts | Hard drives and hot-swap power supplies |
Systems management | Operator panel with status LEDs. XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced to enable remote control functions. |
Security features | Power-on password, administrator's password, Trusted Platform Module, supporting TPM 2.0. Optional lockable front bezel for physical security. |
Video | G200 graphics with 16 MB memory, integrated into the XClarity Controller. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920x1200 32bpp at 60Hz. |
Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics. |
Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
Dimensions | Width: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 545 mm (21.5 in.). See Physical and electrical specifications for details. |
Weight | Maximum configuration: 12.3 kg (27.1 lb) |
