Description

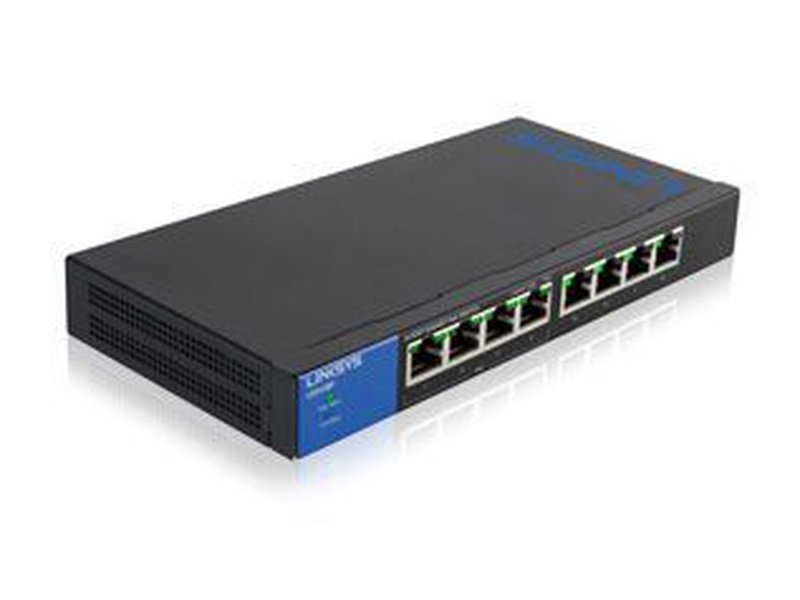

8-Port Business Desktop Gigabit PoE+ Switch LGS108P
Upgrade the data paths of your local wired network to information superhighways with 8-port desktop Gigabit PoE switches.
- Wired connection speed up to 1,000 Mbps
- 8 Gigabit Ethernet autosensing ports
- Power over Ethernet (PoE) support
- Easy plug & play connection
- QoS
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
FEATURES
GIGABIT PERFORMANCE
The unmanaged switch offers Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
POWER WHERE YOU NEED IT
PoE support lets you deploy network systems such as wireless access, IP telephony, or video surveillance solutions more quickly and at a lower cost, without having to install separate power supplies for individual devices.
PLUG AND PLAY CONVENIENCE
Linksys unmanaged switches offer a quick and easy solution to extend your office network with plug-and-play installation.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
QoS traffic prioritization gives precedence to particular devices or activities to ensure mission-critical data throughput is maintained regardless of network congestion. Auto-sensing ports automatically optimize speed for each connected device.
Specifications
Feature | Description |
---|---|
Power Consumption | 3.83 W / 7.0 W |
LEDs | Link, speed, activity, and PoE indicators |
Dimensions (LxWxH) | 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.) |
Weight | 0.50 kg (1.10 lbs) |
Minimum System Requirements | Connected devices need Ethernet connectivity and Ethernet cables |
Operating Humidity | 10–90% (non-condensing) |
Operating Temperature | 0–50°C (32–122°F) |
Ports | 8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W |
Mounting | Wall |
Quality Of Service | 802.1p and DSCP |
Storage Temperature | -40–70°C (-40–158°F) |
Warranty and Support | 5 Year Warranty |
MAC Address Table Size | 8,000 entries |
Performance | - 0.01488 Mpps for 10M port |
- 0.1488 Mpps for 100M port | |
- 1.488 Mpps for 1000M port | |
Full line rate and forwarding rate of 64B frame | |
Power | 54 VDC, 1.2 A |
Regulatory Compliance | FCC Class A, CE |
Maximum Power Consumption | 1.71 W / 5.08 W |
Fans | None |
Storage Humidity | 10–90% (non-condensing) |
Power Saving | Cable connected detection, sleep mode |
Network Standards | IEEE 802.3 |
IEEE 802.3ab | |
IEEE 802.3af | |
IEEE 802.3at (PoE+) | |
IEEE 802.3az | |
IEEE 802.3u | |
IEEE 802.3x | |
Bandwidth | 16 Gbps (non-blocking) |
