Description

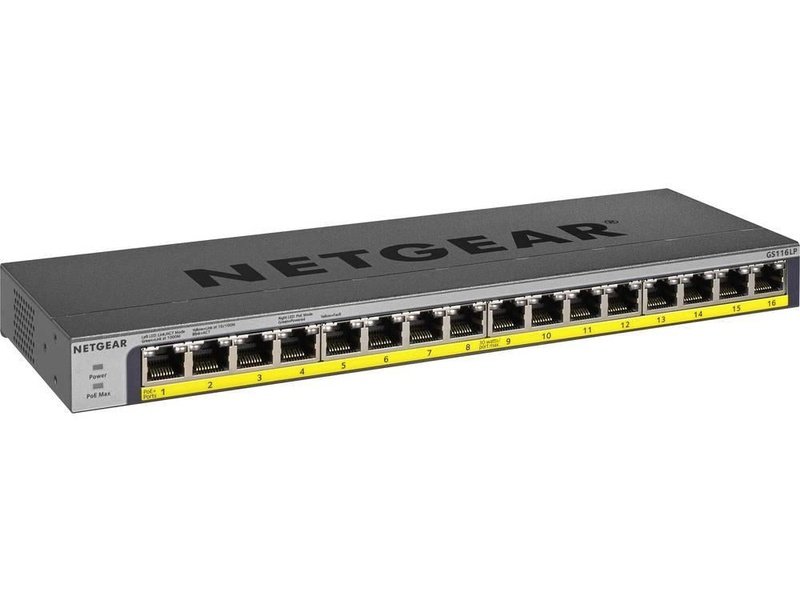

Netgear GS116LP 16-Port Gigabit Unmanaged PoE+ Switch with FlexPoE (76W) [GS116LP-100AJS]
16 PoE+ ports with 76W total power budget, and includes NETGEAR FlexPoE making it expandable to 115W or even 183W (w/separately purchased power supply modules)
Features
GS116LP FEATURES
-
Plug and Play:
- Simple setup with no software or configuration needed.
-
Power-over-Ethernet (PoE):
- 16 PoE+ ports with 183W total power budget.
- NETGEAR FlexPoE allows reducing the power budget to 155W or even 76W with separately purchased power supply modules.
-
Flexible Mounting:
- Can be mounted on rack, desktop, or wall.
-
Small Size, Metal Case, and Silent Operation:
- Durable quality, space saver, and quietness for peace of mind.
-
Lifetime Limited Warranty & Next Business Day Replacement:
- NETGEAR ensures your network is up and running with a lifetime limited warranty and next business day replacement.
-
Sturdy Metal Case, Desktop/Rackmount Form Factor with Quiet Fans:
- Can be placed on a desk or mounted on a rack and will operate quietly with assured durability.
EXTENDED FEATURES
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- PoE power auto-balance - the switch automatically balances the PoE power based on the device needs independent of PoE class detected, at a very granular level.
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Desktop or rackmountable
POE+ FEATURES
Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices
These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power
Built-in PoE power selector switch that allow for optional / interchangeable power adapters* (sold separately) that can be used to increase (or decrease) the PoE power available on the switch
The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included)
Specifications
Attribute | Details |
---|---|
Speed | 10/100/1000Mbps Gigabit Ethernet |
Number of Ports | 16 |
PoE Ports | 16 PoE+ ports, up to 30W per port |
Total PoE Budget | 76W |
Loop Detection | n/a |
Short Cable Power Saving | Yes |
Energy Efficient Ethernet Support (IEEE 802.3az) | Yes |
Jumbo Frame Support | Yes |
Queue WRR Ratio | 1:3:5:7:8:10:12:15 |
MAC Table Size | 4K |
Packet Buffer Size | 1MB |
IEEE 802.1p QoS | Yes |
Max Power Consumption | 90W |
FCC Class | B |
