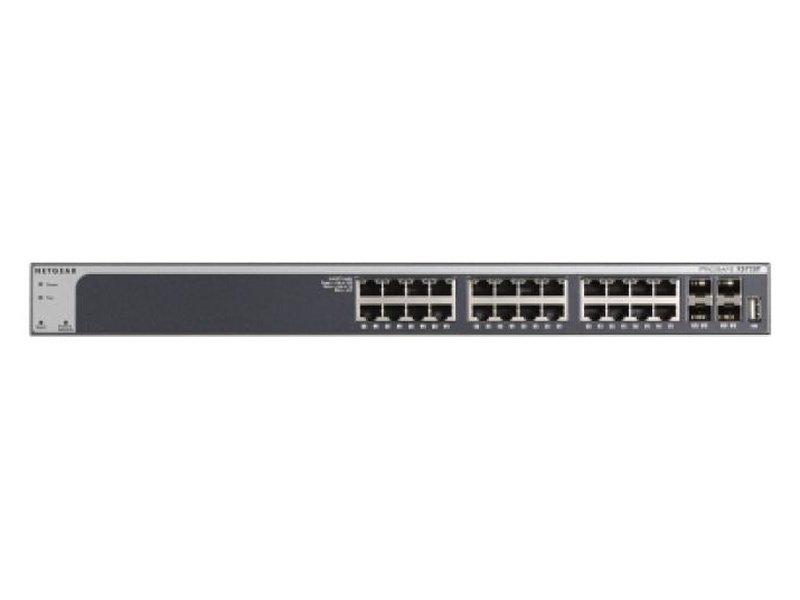

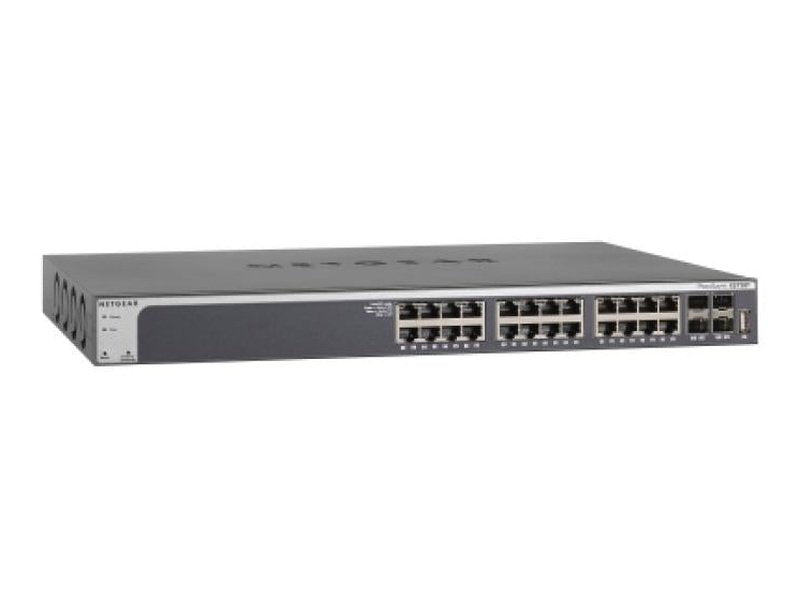

24-Port 10-Gigabit Ethernet Smart Switch with 4 Dedicated SFP+ Ports - XS728T-100AJS
10-Gigabit Smart Switch Series (XS728T)
Take your network beyond reliability. With 10G, get high bandwidth perfect for sharing, collaborating, editing and streaming. 4 x 10Gigabit SFP+ uplink flexibility.
Features
MANAGEMENT
Traffic Management
- Auto Negotiation of speed and duplex modes
- IEEE 802.3x Flow Control
- Dynamic MAC address management
- IEEE 802.1Q-based VLAN
- Auto Voice VLAN
- Auto Video VLAN (selected models)
- VLAN routing (selected models)
- QoS based on WRR, strict priority, or both
- Port-based and IEEE 801.2p-based QoS
- TCP/UDP-based QoS
- DiffServ
- IPv4 and IPv6-based QoS (selected models)
- DSCP Support
- Rate Limiting (ingress, or egress)
- Link Aggregation and LACP
Switch Management
- Web browser-based management GUI
- Smart Control Center Software for multi-switch management
- IP Access List
- IPv6 Management
- Configurable Management VLAN
- SNMP v1/v2c and v3
- Standard MIBs (RFC1213, RFC1643, and RFC1493)
- RMON group 1, 2, 3, 9
- Firmware Upgrade through Smart Control Center (TFTP)
- Firmware download (to switch) and upload (to server) through TFTP/HTTP
- Configuration and Image Upload (to PC) through HTTP
- Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
- Memory & FLASH log
- Syslog (server)
- System password protection
SECURITY AND MORE
Security
- MAC lockdown
- MAC lockdown by number of MACs
- IEEE 802.1x port authentication
- Dynamic VLAN Assignment
- Guest VLAN
- TACACS+
- 3 HTTPS /SSL versions
- TLS session
- Trusted MAC
- IPv4, L4-based Access Control List (ACL)
-
IPv6-based ACL (selected models)
Multicast Efficiency
- IGMP snooping, v1, v2 and v3
- IGMP Snooping querier
- Blocking of unknown multicast traffic
- MLD snooping
Spanning Tree, Routing and Stacking
- IEEE 802.1D, IEEE 802.1w RSTP and MSTP
- Option to enable/disable BPDU flooding when STP is disabled
- Static routing with 32 static routes (Selected models)
- Hosted ARP table size of 512 (Selected models)
RELIABILITY
Reliability, Performance and Troubleshooting
- Port mirroring both on ingress and egress traffic
- Jumbo frame support
- Broadcast Storm control
- Cable diagnostics
- Loop Detection
- DoS Prevention
- IEEE 802.1ab LLDP
- LLDP-MED
- Dual Image
- SNTP
- Option to enable/disable the flooding of EAPOL when 802.1x is disabled
- Protected ports
- DNS client
- DHCP clients
- DHCP snooping
- Ping and traceroute client
- Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

Intuitive Control
Easy-to-use software GUI lets you access, secure setup, and SNMP (NMS300) management

Uplink Flexibility
4 Dedicated SFP+ 10G fiber ports for 10G-capable core or aggregation switches.

Secure Your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection

Comprehensive L2+/Layer 3 Lite Features
The 10G Smart Managed Switches provide comprehensive L2+/Layer 3 Lite features in order to meet current and future needs on virtualization, converged networking and mobility.
Specifications
Feature | Description |
---|---|
Gigabit ports | 8 |
10-Gigabit copper ports | 24 10GBASE-T copper |
SFP ports | 4 SFP+ 10GBASE-X 10G fiber ports (dedicated) |
Max MAC entries | 8K |
Buffer size | 3MB |
MAC address database size | 16K |
VLAN (Number Supported) | 512 |
Number of LAGs & number of members | 12 LAGS with max 8 members in each LAG (LACP) |
Number of priority queues | 8 |
Access Control Lists (ACLs) | 164 shared for MAC, IP and IPv6 ACLs |
IPv4 Static routes | 64 |
IPv6 Static routes | 64 |
Power supply | Internal 100-240VAC 50-60Hz |
Max power consumption (Watts) | 134.9W |
VLAN routing | Yes |
Dynamic VLAN assignment | Yes |
MLD Snooping | Yes |
Static route | Yes (32) |
Host ARP table | 512 ARP |
EEE | Yes |
DoS Prevention | Yes |
Internal/External Power Supply | External DC 54V 1.25A |
Max consumption (Watts) | 15.1W |
FAN | 4 |
Acoustic Noise Level @25°C (dBA) | 29.1 dBA |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
MTBF (@ 25°C) | 514,977 hours |
Electromagnetic Compliance | Class A |
MTBF | 1,200,041 hours (137 years) |
Weight (kg) | 5.04 kg (11.11 lb) |
Dimensions (W x D x H) mm | 440 x 310 x 43 mm (17.3 x 12.2 x 1.7 in) |
Warranty | This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability, and terms and conditions. |
Support | ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days. Remote diagnostics performed by technical experts for prompt resolution of technical issues. ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. |
