Description

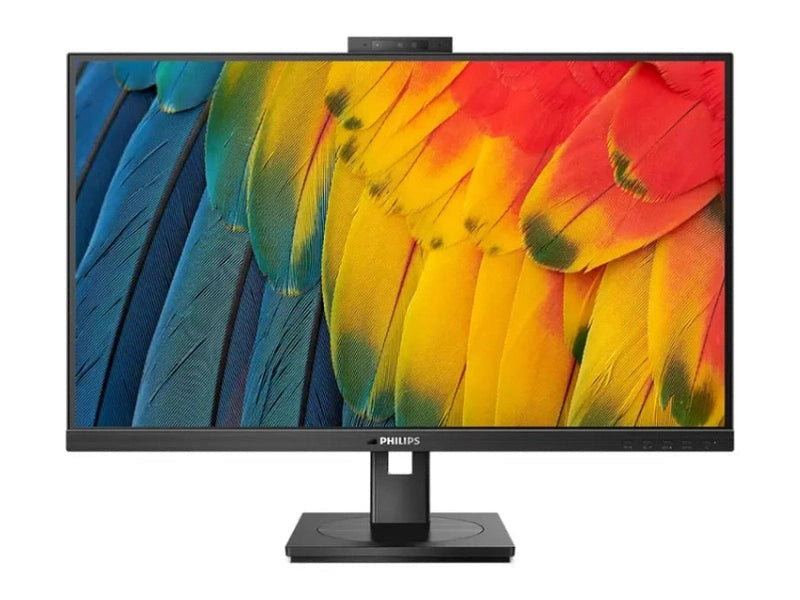

Business Monitor
LCD monitor with USB-C docking
SKU: 24B1U5301H/75
Daily routine simplified
This USB-C monitor is for video watching, data transfer and power delivery. The integrated 5MP webcam delivers sharp images, and noise cancelling mic let people hear you fine. Windows Hello Webcam for quick access and strong security.
Specifications
LCD panel type | IPS technology |
Backlight type | W-LED system |
Panel Size | 23 8 inch/60 5 cm |
Display Screen Coating | Anti-Glare, 3H, Haze 25% |
Effective viewing area | 527 04 (H) x 296 46 (V) |
Aspect ratio | 16:9 |
Maximum resolution | 1920 x 1080 @ 75 Hz |
Pixel Density | 93 PPI |
Response time (typical) | 4 ms (Grey to Grey)* |
Brightness | 300 cd/m² |
Contrast ratio (typical) | 1000:1 |
SmartContrast | 50,000,000:1 |
Pixel pitch | 0 2745 x 0 2745 mm |
Viewing angle | 178º (H)/178º (V) @ C/R > 10 |
Flicker-free | Yes |
Picture enhancement | SmartImage |
Display colours | 16 7 M (8 bit) |
Colour gamut (typical) | NTSC 88%*, sRGB 105%* |
Scanning Frequency | 30–85 kHz (H) / 48–75 Hz (V) |
sRGB | Yes |
LowBlue Mode | Yes |
EasyRead | Yes |
Signal Input | HDMI 1 4 x 1, DisplayPort 1 4 x 1, USB-C x 1 (upstream, DP Alt mode, Data, PD up to 90 W) HDCP HDCP 1 4 (HDMI/DisplayPort/USB-C); HDCP 2 2 (HDMI/DisplayPort/USB-C) HBR3 HBR 3 (DisplayPort, USB-C) |
Signal Output | DisplayPort out x 1 |
USB Hub | USB 3 2, Gen 2/10 Gbps, USB-C upstream x 1 (Data), USB-A downstream x 4 (with 1 for fast charge B C 1 2), USB-C downstream x 1 (Data, PD 15 W) |
Audio (In/Out) | Audio out/Microphone in combo jack |
RJ45 | Ethernet LAN up to 1 G*, Wake on LAN |
Sync Input | Separate Sync |
Version | USB PD version 3 0 |
Max power delivery | USB-C up to 90 W (5 V/3 A, 7 V/3 A, 9 V/3 A, 10 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/4 5 A) |
Built-in Speakers | 5 W x 2 |
Built-in webcam | 5 0 megapixel camera with microphone and LED indicator (for Windows Hello) |
Noise cancellation | Yes |
MultiView | PIP/PBP mode 2 x devices |
KVM | Yes (USB-C/USB-C) |
Other convenience | Kensington lock VESA mount (100 x 100 mm) |
Height adjustment | 150 mm |
Pivot | -/+90 degree |
Swivel | -/+ 180 degree |
Tilt | -5/30 degree |
