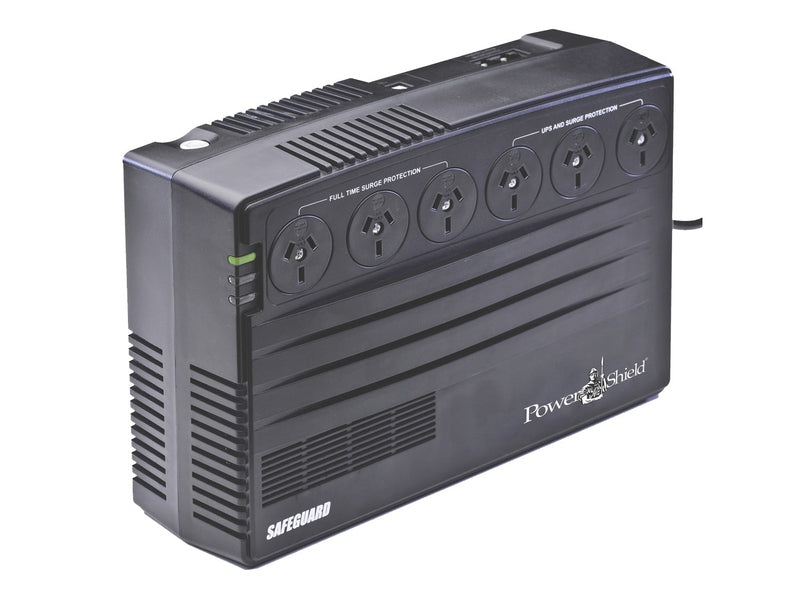

PowerShield SafeGuard Line Interactive UPS 750VA 450W AVR LAN [PSG750]
- Automatic Voltage Regulation (Buck and Boost)
- Light-weight compact and elegantly designed
- Intelligent microprocessor control
- Monitoring and shutdown software included
- Fax/modem/LAN surge suppression port
- Overload protection and alarm
- Output short circuit protection
- Start on battery function (cold start)
- USB communication
- Easy user replaceable battery
- Australian/New Zealand approved sockets
- Wall mountable
- Fast charging – 90% in 4 hours
- 2 Year Warranty
Specifications
Capacity | 750VA / 450W |
Topology | Line Interactive |
Voltage | 240VAC (Nominal) |
Voltage Range | 177 to 290VAC |
Frequency Range | 50Hz or 60Hz (Auto sensing) |
Output Voltage | 240VAC ± 10% |
Frequency Range (Batt Mode) | 50Hz or 60Hz ±1Hz |
Transfer Time | 6ms (Typical) |
Australian Outlets – UPS & Surge Protection | 3 |
Australian Outlets – Surge Protection | 3 |
Capacity | 12V*9Ah |
Backup Time | 25 min (1 PC load at 100W) |
Typical Recharge Time | 6–8 hours recover to 90% capacity |
Full Protection | Overcharge, discharge, short circuit and thermal protection |
Surge Protection | 468Joules /11000Amps – Best in its class |
Data Protection | Tel/modem (Not NBN) |
Interface | USB interface |
Software | PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
Visual Alarm | LED, AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault |
Audible Alarm | Battery Mode, Low Battery (Batt. Mode), Fault, overload |
Dimension D x W x H (mm) | 292 x 91 x 199 |
Net Weight (kgs) | 6.3 |
Temperature | 0–40°C |
Humidity | 0–90% RH (non-condensing) |
Noise Level | <40dB (no fan) |
Safety/EMC | EN62040 - 1 - 2008, IEC60950 - 1: 2001, EN62040 - 2 2006 |
Warranty | 2 Years |
