Description

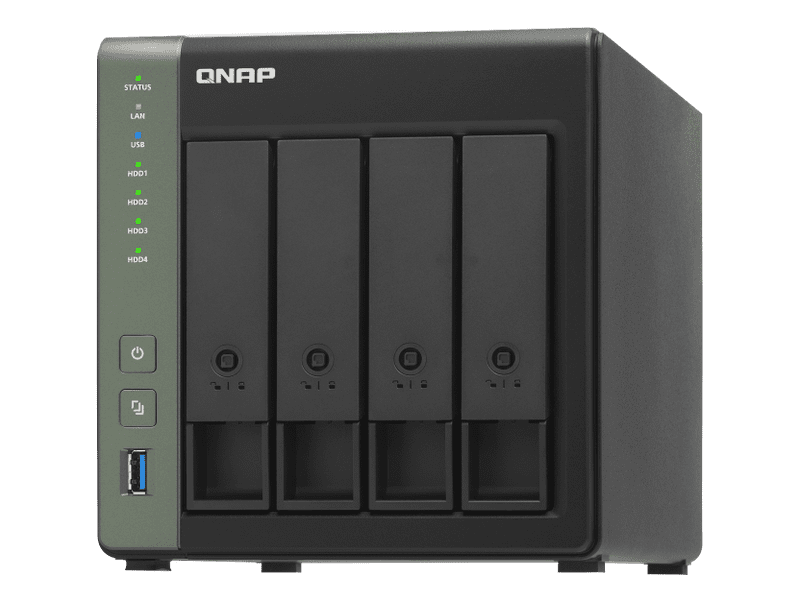

TS-431KX
The quad-core TS-431KX provides four drive bays for high-capacity storage and memory expansion up to 8GB RAM. With the built-in 10GbE SFP+ port, the TS-431KX delivers high bandwidth required for intensive data transmission. Coupled with the QNAP 10GbE switch, you can easily build a high-speed 10GbE network environment with an affordable budget. The TS-431KX provides comprehensive local, off-site and cloud backup and supports Snapshot technology to help you create a reliable backup and disaster recovery plan. In the event of a system crash or accidental deletion of files, you can quickly restore the system to its normal state. The TS-431KX comes with lockable drive trays, ensuring the drives will not be accidentally removed or fall out and cause data loss.
- Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.
- HBS (Hybrid Backup Sync) can backup and sync your data to other NAS, servers, and cloud storage for comprehensive backup and disaster recovery.
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
- Supports LXC and Docker® containers for rapidly deploying application services across platforms, including cloud, servers, and PCs.
- Hot-swapping design allows you to remove hard drives without powering off the NAS to ensure continuous operations.
- Supports VJBOD (Virtual JBOD) technology to expand the storage space of another QNAP NAS.

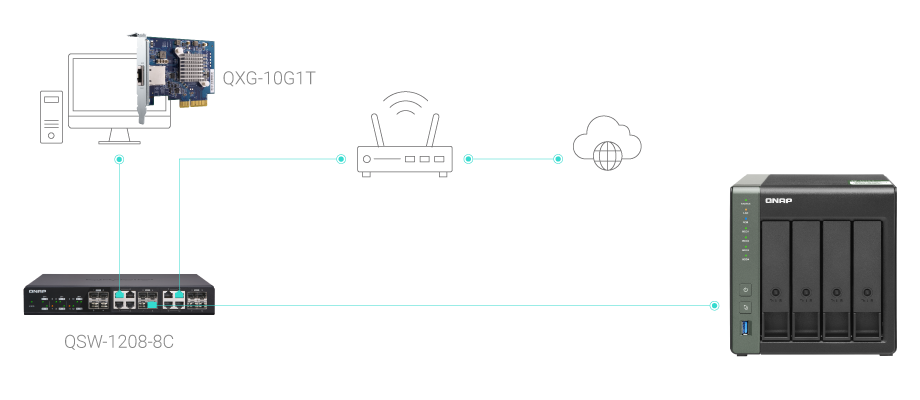

Easily Create a High-speed Network Environment
10GbE improves overall network performance and everyday tasks with ten times the bandwidth of 1GbE. From 10GbE NAS, to switches, to network adapters, QNAP provides a complete range of everything needed to upgrade to 10GbE environments.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization, integrated with the TS-431KX high-speed 10GbE connectivity, you can easily backup or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-431KX into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-431KX will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
TS-431KX-2G Specifications
CPU | AnnapurnaLabs, an Amazon company Alpine AL214, 4-core, 1.7GHz |
CPU Architecture | 32-bit ARM |
Floating Point Unit | ✓ |
Encryption Engine | ✓ |
System Memory | 2 GB SODIMM DDR3 (1 x 2 GB) |
Maximum Memory | 8 GB (1 x 8 GB) |
Memory Slot | 1 x SO-DIMM DDR3 |
Flash Memory | 512 MB (Dual boot OS protection) |
Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | ✓ |
SSD Cache Acceleration Support | ✓ |
Gigabit Ethernet Port (RJ45) | 2 |
10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
Wake on LAN (WOL) |
✓Only the 1GbE port
|
Jumbo Frame | ✓ |
USB 3.2 Gen 1 port | 3 |
Form Factor | Tower |
LED Indicators | Power, Status, LAN, USB, HDD1-4 |
Buttons | Power, Reset, USB Auto Copy |
Dimensions (HxWxD) | 169 × 160 × 219 mm |
Weight (Net) | 2.01 kg |
Weight (Gross) | 3.47 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 90W Adapter, 100-240V |
Power Consumption: HDD Sleep Mode | 11.65 W |
Power Consumption: Operating Mode, Typical | 26.7 W
Tested with drives fully populated.
|
Fan | 1 x 120mm, 12VDC |
Sound Level | 19.5 db(A) |
System Warning | Buzzer |
Kensington Security Slot | ✓ |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 400 |
