QNAP 8 Bay Desktop JBOD SATA Storage Expansion Enclosure

QNAPSKU: TL-D800S

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$1,106.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

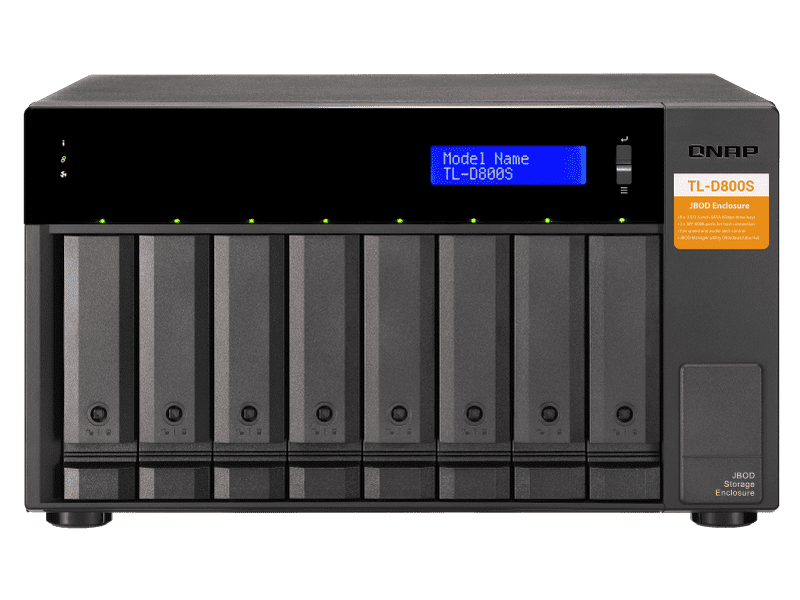

TL-D800S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D800S features eight 3.5-inch SATA 6Gb/s drive bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.

  • Lockable hard drive trays prevent accidental drive removal.
  • SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
  • Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.

High-performing TL SATA JBOD

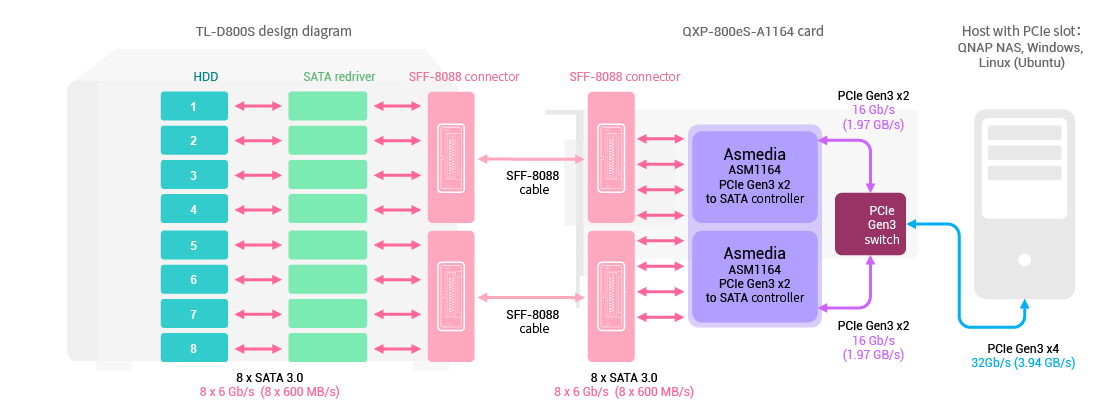

The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.

 Note: The SFF ports and drive slots order: SFF port 1 to HDD slot 1-4, SFF port 2 to HDD slot 5-8


Flexible Storage Configuration and Management

The TL-D800S provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QuTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.

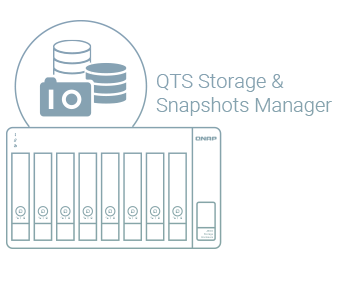

Use the Storage & Snapshots Manager in QTS or QuTS hero to configure the TL-D800S as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D800S, you can easily expand storage capacity.

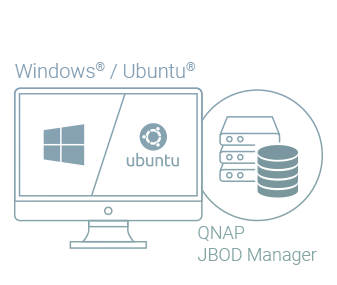

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D800S on Windows® and Ubuntu® computers. You can quickly obtain disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates.


What you need to know

You can connect your TL-D800S to Windows® and Ubuntu® computers through SFF-8088 (or SFF-8644) high-speed cable and use built-in utility to manage RAID configuration.

 Note:
1. QXP series PCIe cards do not support Mac Pro.
2. If there are any unexpected boot failures during QXP PCIe cards installation on the host, please check with the host manufacturing company for any new BIOS updates. Alternatively, you can try disabling the boot from the PCIe slot function or disable the external graphics card option.

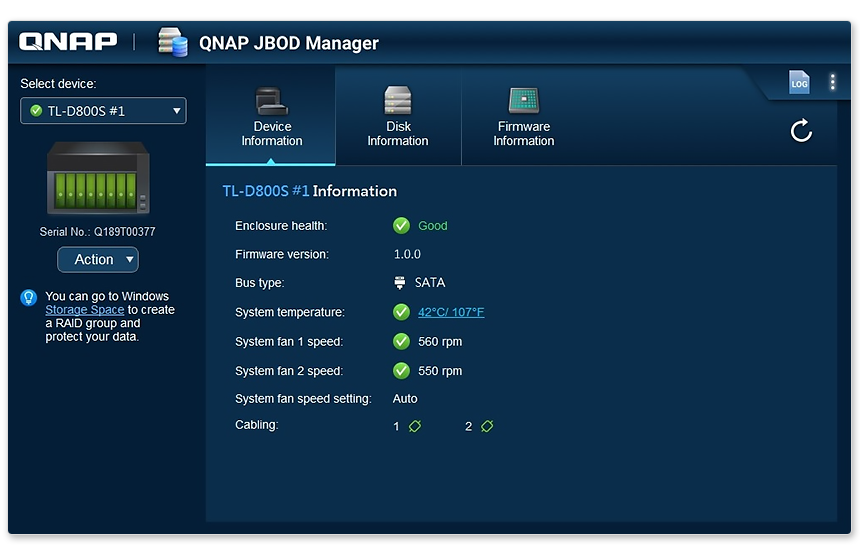

Intelligently Monitor JBOD Enclosure Status on PC and Servers with QNAP JBOD Manager

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D800S on Windows® and Ubuntu® computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.

 Notes:
1. You can set up new software RAID groups in [Windows Storage Spaces] in Windows 8/10/11 (or later versions).
2. Windows Server 2012 R2 (or later version) users can set up new software RAID groups in [Server Manager].
3. Ubuntu users need to pass commands into [mdadm] to set up new software RAID groups.
4. Does not support macOS.

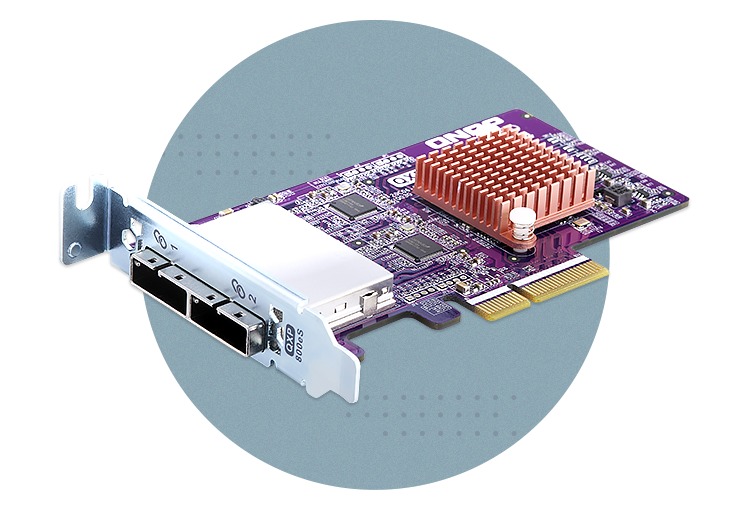

Flexibly Expand Connectivity with QXP PCIe Cards

Install an exclusive QXP PCIe card onto your QNAP NAS, Windows® or Ubuntu® PC to connect the JBOD enclosure via SFF-8088 (or SFF-8644) cable , for easy and flexible storage expansion.

 Note:
1. The TL-D800S package includes one QXP-800e-A1164 card (can be purchased additionally) and two 1M SFF-8088 to SFF-8088 cables.
2. A SATA JBOD storage enclosure can only connect to one NAS. Users can only use QNAP JBOD Manager to view statuses of devices and disks installed with QNAP expansion cards and JBODs. Users can only create single storage expansions when the QXP PCIe card is not connected to a TL SATA JBOD enclosure.
3. TL SATA JBOD storage enclosure can install different QXP PCIe cards. For example, one NAS can be matched with multiple QXP PCIe cards to connect to TL SATA JBOD storage enclosure or users can use one QXP-800eS to expand two TL-D400S (there are no quantity limits except for restrictions mentioned in the previous note).
4. The TL SATA JBOD and QXP SATA expansion card support at most 1 meter (3.28 feet) long cable.
5. Users of the TVS-871U-RP, TVS-1271U-RP, and x80 series NAS must update their BIOS to the minimum BIOS version. If not, unexpected boot failures might occur.

Specifications

Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Audio Alert On/Off Switch
Form Factor Tower

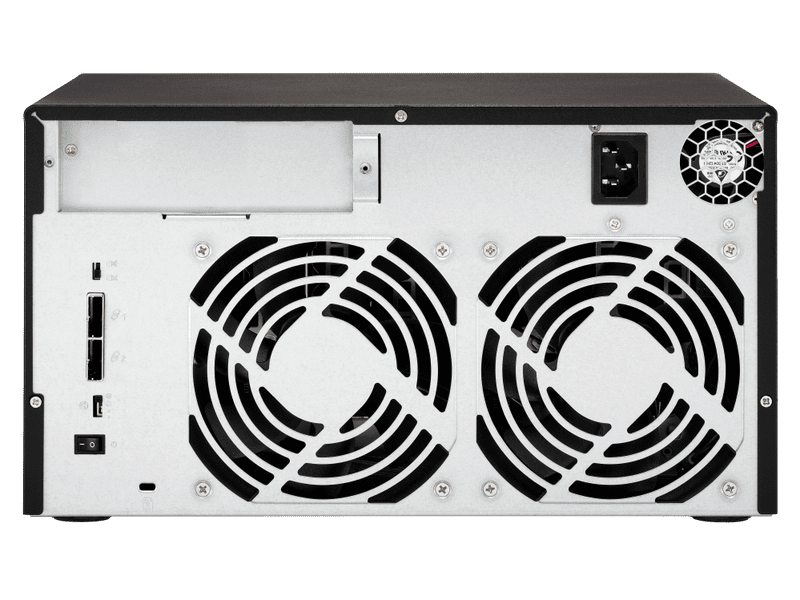

Host Interface 2 x SFF-8088
LED Indicators HDD 1-8, Status, Link, Fan error
LCD Display/ Button
Buttons Power switch, enter, select
Dimensions (HxWxD) 188.2 × 329.3 × 279.6 mm
Weight (Net) 6.17 kg
Max. number of HDDs/SSDs supported 8
Hard Drive Type 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W PSU, 100 - 240V
Power Consumption: Operating Mode, Typical 51.606 W
Tested fully polulated with Seagate ST6000NM0024 hard drives.
Fan Mode Switch  ✓(Auto, high, medium, low)
Fan 2 x 120mm, 12VDC
Sound Level 21.3 db(A)
System Warning Buzzer
Kensington Security Slot
