Description

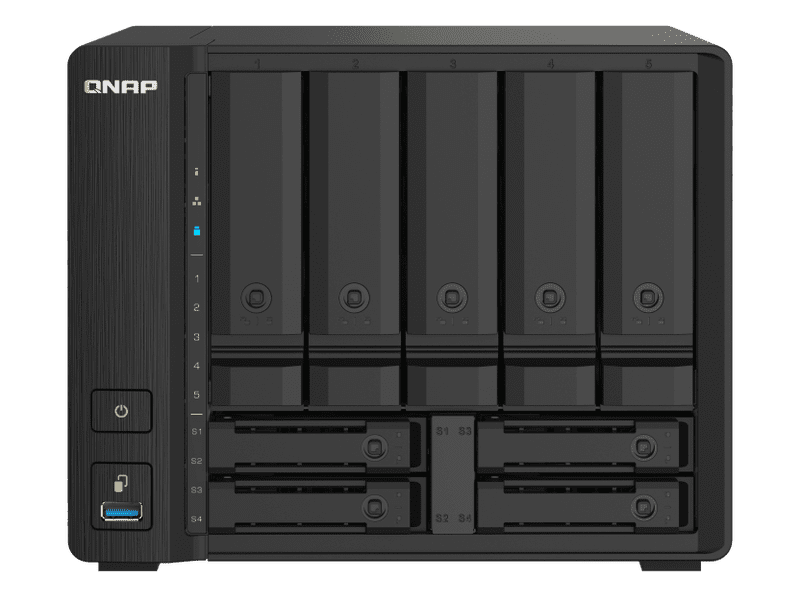

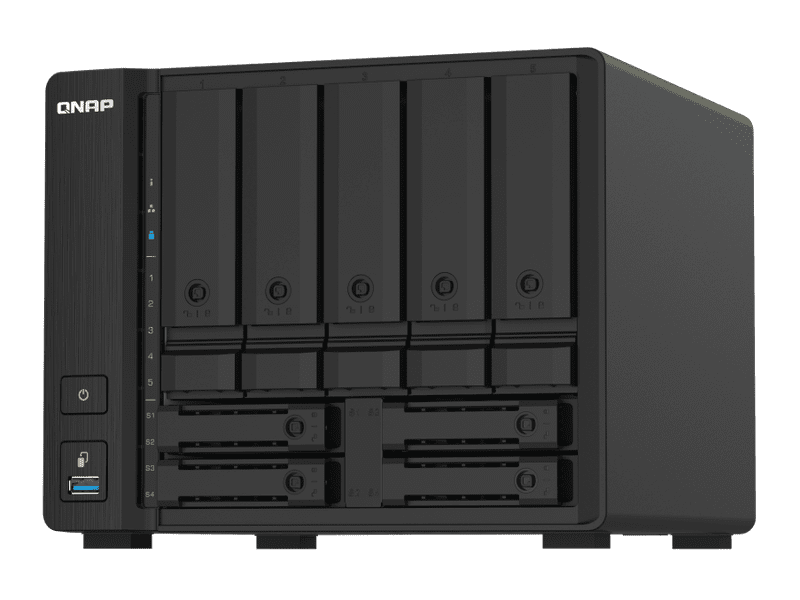

The quad-core 1.7GHz TS-932PX fits nine drive bays into the size of a 5-bay NAS. With five 3.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s bays, the TS-932PX provides the ability to create an HDD/SSD hybrid infrastructure to boost application performance. With two 10GbE SFP+ and two 2.5GbE LAN ports, the TS-932PX supports next-generation networks for empowering bandwidth-demanding applications and providing smoother file access and sharing.
- Two 10GbE SFP+ and two 2.5GbE RJ45 network ports empower bandwidth-demanding tasks and accelerate file sharing.
- HBS provides comprehensive backup and data recovery; QuDedup deduplicates the data at the source to optimize storage and bandwidth usage, while reducing backup times.
- Snapshots record your system status, allowing you to protect files and data from accidental deletion and malware attacks.
- Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
- Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
- Increase the storage capacity of the TS-932PX with QNAP TR RAID expansion enclosures or TL JBOD.

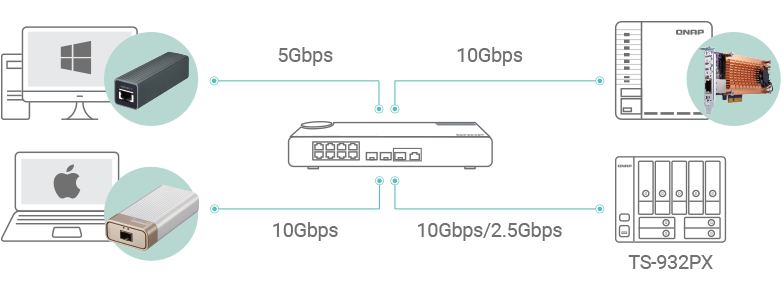

High-speed 10GbE and 2.5GbE connectivity

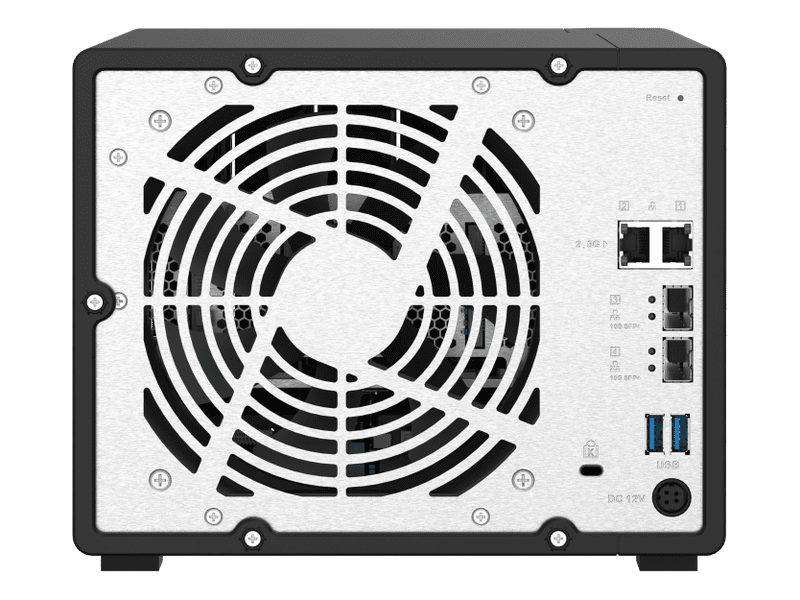

The TS-932PX includes two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.
Learn More: 10GbE High-speed Connectivity, 2.5GbE Ethernet, QSW Switches
Specifications
CPU | AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 quad-core 1.7GHz processor |
CPU Architecture | 64-bit ARM |
Floating Point Unit | ✓ |
Encryption Engine | ✓ |
System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
Maximum Memory | 16 GB (1 x 16 GB) |
Memory Slot | 1 x SO-DIMM DDR4 |
Flash Memory | 512 MB (Dual boot OS protection) |
Drive Bay | 5x 3.5-inch+ 4 x 2.5-inch SATA 6Gb/s |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch solid state drives |
Hot-swappable | ✓ |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (also support 10M) |
10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
Wake on LAN (WOL) |
✓
Only the 2.5GbE port |
Jumbo Frame | ✓ |
USB 3.2 Gen 1 port | 3 |
Form Factor | Tower |
LED Indicators | System Status, LAN, USB, HDD1~5, SSD1-4 |
Buttons | Power, Reset, USB Copy |
Dimensions (HxWxD) | 182.7 × 224.6 × 224.1 mm |
Weight (Net) | 3.39 kg |
Weight (Gross) | 4.99 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | External, 120 W, AC 100 to 240 V |
Fan | 1 x 140mm, 12VDC |
Sound Level | 18.6 db(A) |
System Warning | Voice prompts or Buzzer |
Kensington Security Slot | ✓ |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
