Description
Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt 3, and M.2 PCIe NVMe SSD slots

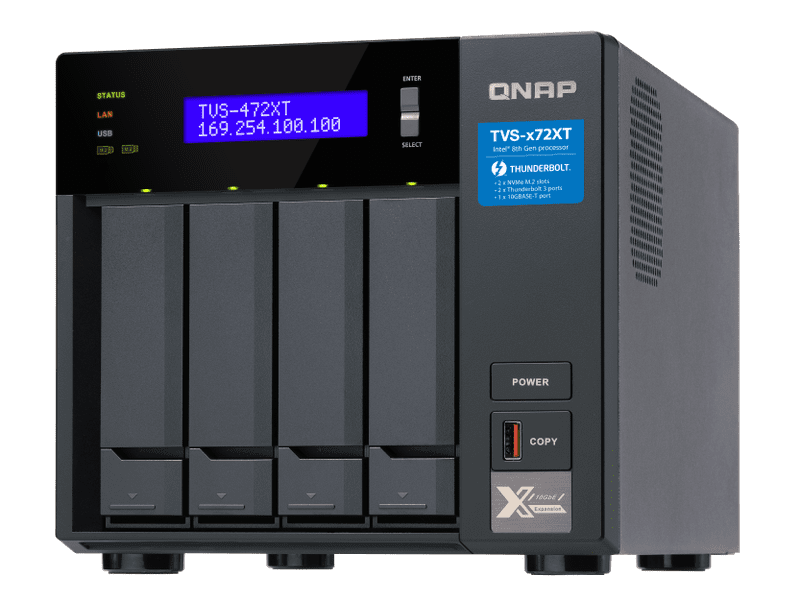

Powered by an 8th generation Intel® Pentium® Gold processor, the high-performance TVS-472XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-472XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-472XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!
- High-speed Thunderbolt™ 3 with SMB protocol, perfect for collaboration on media editing.
- 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.
- PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
- Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.
- 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
Specifications
CPU | Intel® Core™ i3-8100T 4-core 3.1 GHz Processor |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® UHD Graphics 630 |
Floating Point Unit | |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | |
System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
Maximum Memory | 64 GB ( 2 x 32 GB) |
Memory Slot | 2 x SO-DIMM DDR4 |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | |
M.2 SSD Slot | 2 x M.2 2280 PCIe Gen3 x2 slots |
SSD Cache Acceleration Support | |
Gigabit Ethernet Port (RJ45) | 2 |
10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
Wake on LAN (WOL) | |
Jumbo Frame | |
Thunderbolt Port | 2 (Thunderbolt™ 3) |
PCIe Slot | 2 Slot 1: PCIe Gen 3 x16 (CPU) Slot 2: PCIe Gen 3 x4 (PCH) Slot 1 is preinstalled with a Thunderbolt 3 adapter
|
USB 3.2 Gen 1 port | 1 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
IR Sensor | (QNAP RM-IR004 & MCE) |
HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
Form Factor | Tower |
LED Indicators | HDD 1-4, Status, LAN, USB port, M.2 port |
LCD Display/ Button | |
Buttons | Power, Reset, USB Copy |
Dimensions (HxWxD) | 188.2 × 199.3 × 279.6 mm |
Weight (Net) | 5.4 kg |
Weight (Gross) | 7.01 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 250W, 100-240V |
Power Consumption: HDD Sleep Mode | 24.14 W |
Power Consumption: Operating Mode, Typical | 37.32 W
Tested fully populated with WD10EFRX hard drives.
|
Fan | System fan: 1 x 120mm, 12VDC CPU fan: 2 x 60mm blower fan |
Sound Level | 21.2 db(A) |
System Warning | Buzzer |
Kensington Security Slot | |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
