Description

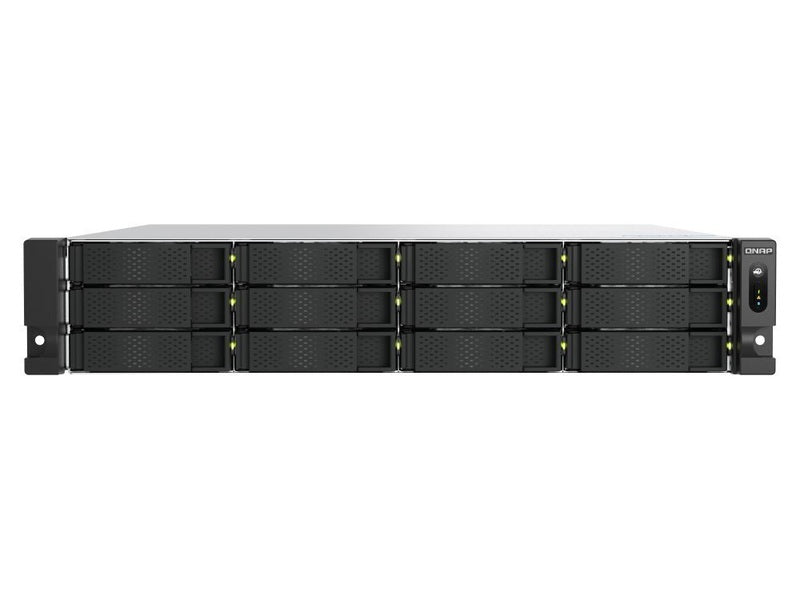

Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
-
DDR5 RAM
Supports up to 192GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported).
-
Dual M.2 PCIe Gen 5 slots
Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment.
-
2.5GbE and 10GbE as standard
Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer.
-
PCIe Gen 4 expandability
Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cards.
-
Petabyte-scale storage
Connect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 204 disks.
-
Long-term supply
The TS-h1277AXU-RP will be available and supported by QNAP for an extended period, up to 2030.
CPU | AMD Ryzen™ 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz |
AMD Radeon Graphics | AMD Radeon Graphics |
CPU Architecture | 64-bit x86 |
Graphic Processors | AMD Radeon™ Graphics |
Floating Point Unit | - |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | - |
System Memory | 16 GB UDIMM DDR5 (1x 16 GB) |
Maximum Memory | 192 GB (4 x 48 GB) |
Memory Slot | 4 x UDIMM DDR5 |
ECC Memory Support | Optional |
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch SATA hard disk drives |
2 5-inch SATA solid-state drives | 2.5-inch SATA solid-state drives |
Hot-swappable | Yes |
M 2 Slot | 2 x M.2 2280 PCIe Gen 5 x2 slots |
M 2 Compatibility | NVMe SSD PCIe Gen 3 and above |
SSD Cache Acceleration Support | Yes |
GPU Pass-through | Yes |
2 5 Gigabit Ethernet Port | 2 (2.5G/1G/100M/10M) |
10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
Wake on LAN (WOL) | Yes |
Jumbo Frame | Yes |
PCIe Slot | 3 |
PCIe Slot Details | Slot 1: Gen 4 x4 |
Slot 2: Gen 4 x8 or Gen 4 x4* | Slot 2: Gen 4 x8 or Gen 4 x4* |
Slot 3: Gen 4 x4 | Slot 3: Gen 4 x4 |
PCIe Slot Notes | *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and PCIe Gen4 x4 when Slot 1 is in use. |
USB 3 2 Gen 2 (10Gbps) Port | 2 x Type-A USB 3.2 Gen 2 (10Gbps) |
Form Factor | 2U Rackmount |
LED Indicators | Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, Storage Expansion Port Status |
Buttons | Power, Reset |
Dimensions (HxWxD) | 88.6 × 482 × 550 mm |
Weight (Net) | 13 kg |
Weight (Gross) | 19 kg |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 550W(x2), 100-240V |
Power Consumption (HDD Sleep Mode) | 82.247 W |
Power Consumption (Operating Mode) | 367.65 W (tested fully populated) |
Fan | System fan: 3 x 60mm, 12VDC |
System Warning | Buzzer |
Standard Warranty | 5 years |
Max Concurrent Connections (CIFS) | 5000 (with Max. Memory) |
