Description
Powered by the x86 architecture Zhaoxin KaiXian KX-U6580 8-core processor, the TVS-675 provides businesses with a modern 2.5GbE NAS solution to tackle everyday tasks like file backup/restore, and to boost team collaboration with higher productivity. Besides hardware advantages with built-in M.2 SSD slots for cache acceleration and PCIe expansion, the TVS-675 supports abundant business and media applications (including snapshot protection, virtual machines, cloud storage gateways, 4K HDMI display, and real-time transcoding) alongside expandable storage capacity and install-on-demand apps, making it a cost-effective and reliable data storage and media NAS.
- Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
- Install high-performance M.2 PCIe NVMe Gen 3 x1 SSDs or economical SATA 6Gb/s SSDs in the dedicated SSD slots for caching with improved random I/O or high-performance storage pools.
- Two PCIe Gen 3 slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or QXP storage expansion cards.
- 4K media playback and real-time transcoding; directly output videos to an HDMI 2.0 display (up to 4K @60Hz).
- Supports storage for virtualization; hosts multiple virtual machines and containers to run a wide range of applications on one NAS device.
- Flexibly scale the total storage capacity to match business growth by connecting QNAP expansion enclosures.
High-performance multi-tasking with an 8 core 2.5GHz processor and up to 64 GB RAM
Powered by an x86 architecture Zhaoxin KaiXian KX-U6580 8 cores/8 threads 2.5GHz processor and 8 GB DDR4 memory (expandable up to 64 GB - 2x 32GB, dual channel support), the TVS-675 has enormous processing power to drive virtual machine performance and tackle complex multitasking workloads. AES-NI encryption support boosts encryption performance while also maintaining the security of your NAS data.
Streamline large file transfers and video editing with 2.5GbE

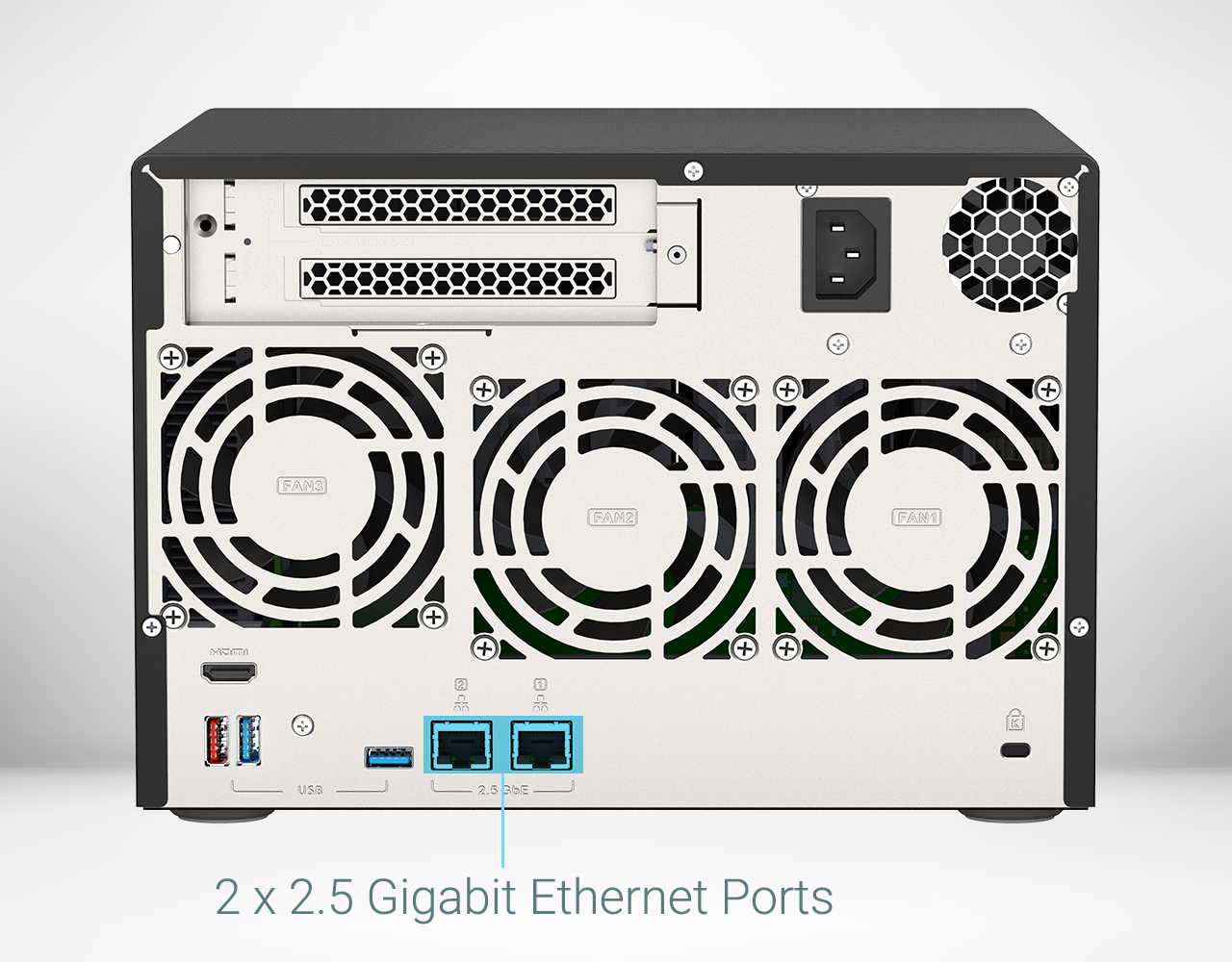

The TVS-675 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the business efficiency of bandwidth-hungry applications such as large file transfers, fast backup/restoration, and multimedia transfer & editing.
Future-proof your IT infrastructure for high-speed networks
The TVS-675 is also ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
Learn More: QNAP 2.5GbE solutions, Budget-friendly QSW-series switches
TVS-675-8G Specifications
CPU | ZhaoXin KX-U6580 8-core 2.5GHz processor |
CPU Architecture | 64-bit x86 |
Graphic Processors | ZhaoXin C-960 Graphics |
Floating Point Unit | ✓ |
Encryption Engine | ✓(AES-NI) |
Hardware-accelerated Transcoding | ✓ |
System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
Maximum Memory | 64GB (2 x 32 GB) |
Memory Slot | 2 x SO-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | |
M.2 SSD Slot | 2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots |
SSD Cache Acceleration Support | ✓ |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
10 Gigabit Ethernet Port | Optional via an adapter |
Wake on LAN (WOL) |
✓Only the 2.5GbE port
|
Jumbo Frame | ✓ |
PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 |
USB 3.2 Gen 1 port | 2 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
Form Factor | Tower |
LED Indicators | HDD 1-6, Status, LAN, USB, M.2 SSD 1-2 |
Buttons | Power, Reset, USB Copy |
Dimensions (HxWxD) | 188.2 × 263.9 × 280.8 mm |
Weight (Net) | 6.2 kg |
Weight (Gross) | 7.67 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 250W, 100-240V AC, 50/60Hz, 3.5A |
Power Consumption: HDD Sleep Mode | 41.897 W |
Power Consumption: Operating Mode, Typical | 60.794 W |
Fan | 3 x 80mm, 12VDC |
Sound Level | 20.2 db(A) |
System Warning | Buzzer |
Kensington Security Slot | ✓ |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
