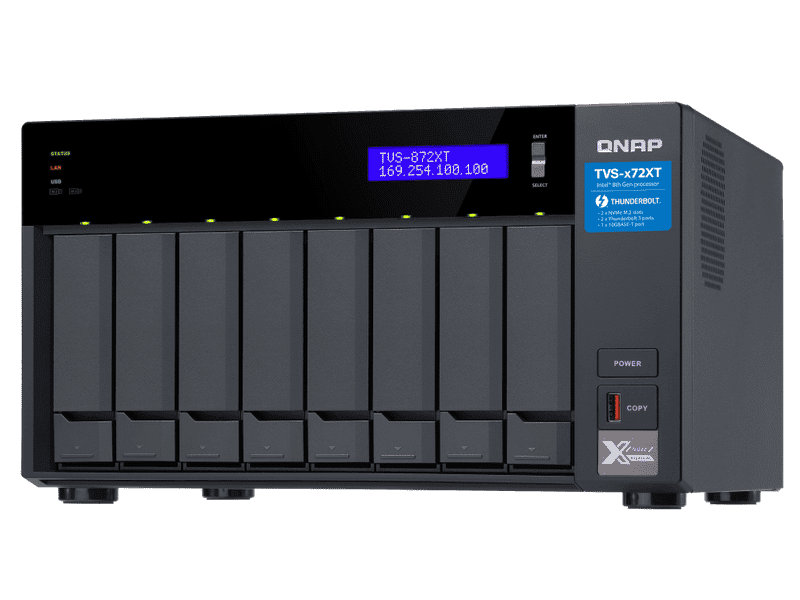

Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-872XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-872XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-872XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!
- High-speed Thunderbolt™ 3 with SMB protocol, perfect for collaboration on media editing.
- 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.
- PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
- Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.
- 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity
The TVS-872XT adopts the powerful 8th generation Intel® Core™ processor with 16 GB dual-channel DDR4 memory (upgradable to 64 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.
Specifications
CPU | Intel® Core™ i5-8400T 6-core 1.7 GHz Processor, Max turbo to 3.3 GHz |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® UHD Graphics 630 |
Floating Point Unit | Yes |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | Yes |
System Memory | 16 GB SODIMM DDR4 (2 x 8 GB) |
Maximum Memory | 32 GB ( 2 x 16 GB) |
Memory Slot | 2 x SO-DIMM DDR4 |
Flash Memory | 4GB (Dual boot OS protection) |
Drive Bay | 8 x 3.5-inch |
Drive Compatibility |
3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | Yes |
M.2 SSD Slot | 2 x M.2 2280 PCIe Gen3 x2 slots |
SSD Cache Acceleration Support | Yes |
Gigabit Ethernet Port (RJ45) | 2 |
10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
Jumbo Frame | Yes |
Thunderbolt Port | 2 |
PCIe Slot |
2 Slot 1: PCIe Gen3 x16 (CPU) Slot 2: PCIe Gen3 x4 (PCH) Slot 1 is preinstalled with a Thunderbolt 3 adapter
|
USB 3.0 port | 1 |
USB 3.1 Gen 2 (10Gbps) Port |
2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps 2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps |
IR Sensor | (QNAP RM-IR004 & MCE) |
HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
Audio Input | 1 x 3.5mm microphone input jacks |
Audio Output | speaker, 3.5mm line out jack |
Form Factor | Tower |
LED Indicators | HDD 1-8, Status, LAN, USB port, M.2 port |
LCD Display/ Button | Yes |
Buttons | Power, Reset, USB Copy |
Dimensions (HxWxD) | 188.2 × 329.3 × 279.6 mm |
Weight (Net) | 7.06 kg |
Weight (Gross) | 9.19 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 250W, 100-240V |
Power Consumption: HDD Sleep Mode | 41.47 W |
Power Consumption: Operating Mode, Typical |
65.03 W
With WD10EFRX drives fully populated
|
Fan |
System: 2 x 12cm fan (12V DC) CPU: 2 x 6cm blower fan |
Sound Level | 24.2 db(A) |
System Warning | Voice prompts or Buzzer |
Kensington Security Slot | Yes |
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
