Overview

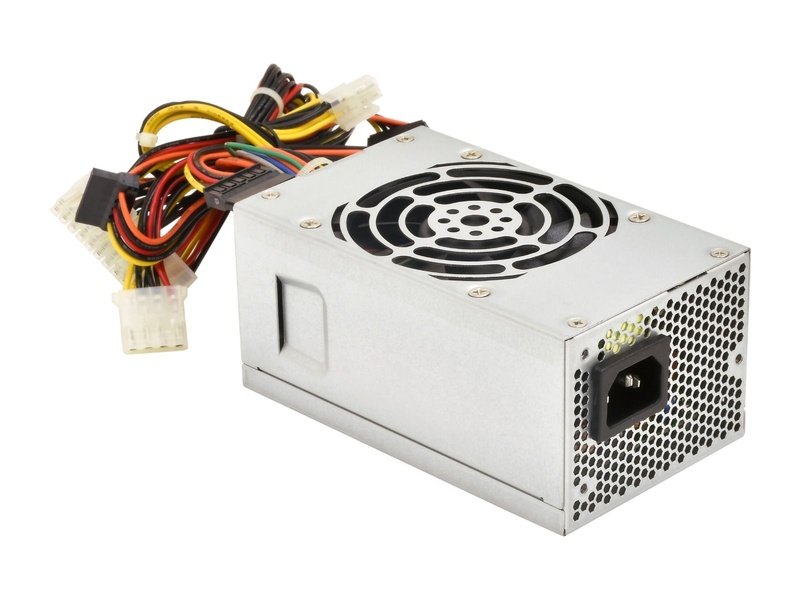

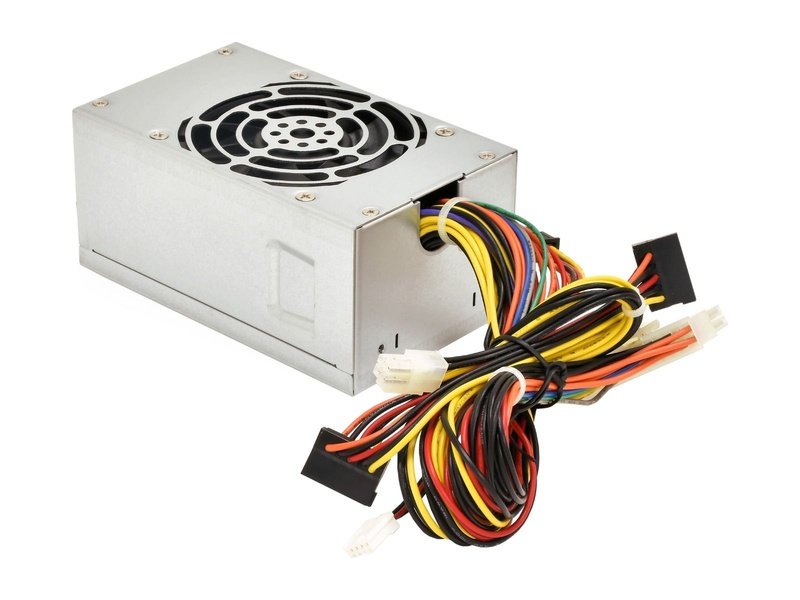

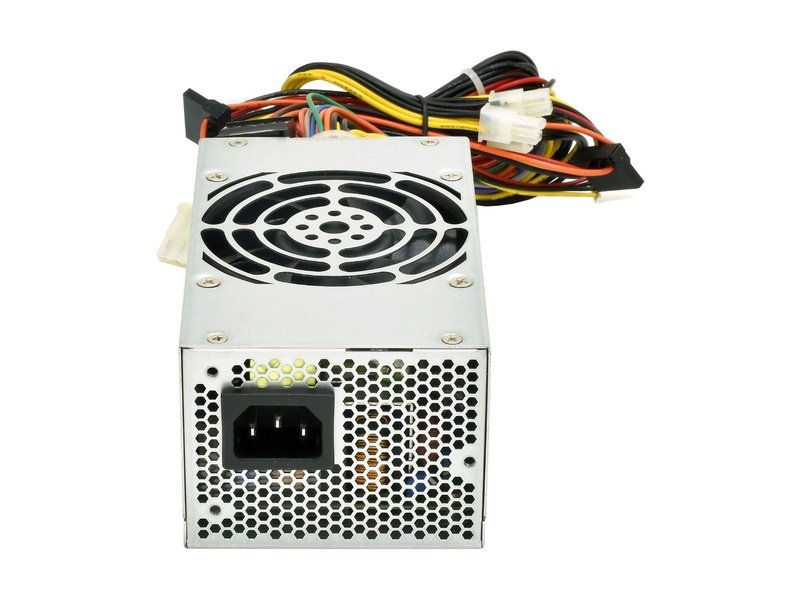

This industrial power supply is TFX 12 V v.2.31 compliant and offers DC to DC converter design and important protection features for safe operations. It is perfect for desktop of mini ITX cases and with its 80 PLUS® Gold rating it can achieve up to 90 % efficiency at 115 V AC at 50 % load. This unit supports the latest Intel and AMD platforms and with above 100,000 hours MTBF rate it is highly reliable.
FEATURES
- SATA-ready
- DC to DC converter design
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control (S2FC)
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
Specifications
This industrial power supply is TFX 12 V v.2.31 compliant and offers DC to DC converter design and important protection features for safe operations. It is perfect for desktop of mini ITX cases and with its 80 PLUS® Gold rating it can achieve up to 90 % efficiency at 115 V AC at 50 % load. This unit supports the latest Intel and AMD platforms and with above 100,000 hours MTBF rate it is highly reliable.
FEATURES
- SATA-ready
- DC to DC converter design
- High efficiency and reliability
- Low ripple and noise
- Super low noise fan control (S2FC)
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100 % HiPot test
- 100 % Burn-in, high temperature cycled on/off
Specifications
Specifications | |
---|---|
Input frequency | 50 / 60 Hz |
Inrush current at cold start | 100 A max. |
Efficiency | 80 PLUS Gold |
Line regulation | ± 1 % (typical) |
Load regulation | ± 5 % (typical) |
Cross regulation | ± 5 % (typical) |
Ripple / noise | 1 % |
MTBF, full load @ 25 °C ambient (excl. DC fan) | > 100,000 hours |
Active Power Factor Correction | > 95 % (typical) |
DC Outputs | |||||||
---|---|---|---|---|---|---|---|
+3.3 V | +5 V | +12 V (Combined) | -12 V | +5 Vsb | Total continuous power | Input Type | |
10 A | 14 A | 25 A | 0.3 A | 2 A | 300 W | 100–240 VAC | |
70 W | 300 W | 3.6 W | 10 W |
