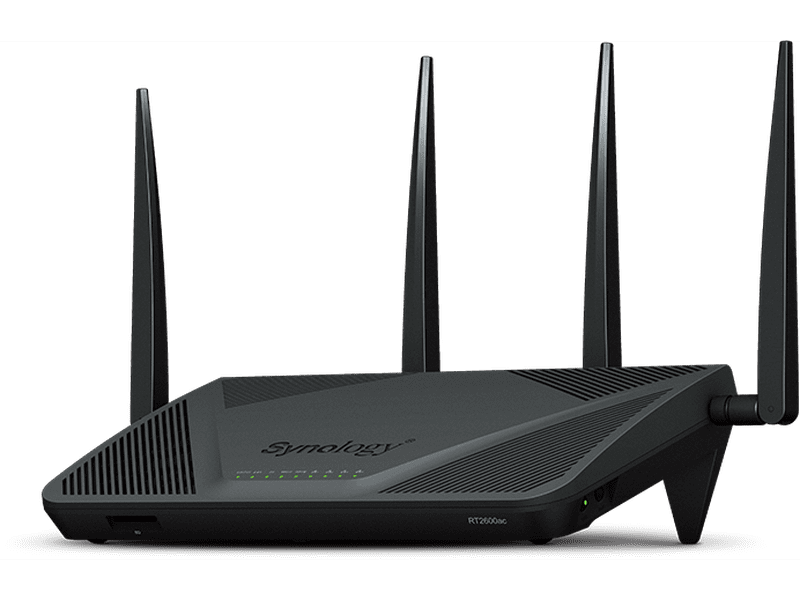

Synology AC2600 Wireless Dual Band Gigabit Router

SynologySKU: RT2600ac

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$320.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Download Datasheet



Hardware Specifications
CPU Dual core 1.7 GHz
L4/L7 Hardware Acceleration Engine
Memory 512 MB DDR3
Antenna type 4x4 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)
LAN port
  • Gigabit (RJ-45) x 4
  • Gigabit (RJ-45) x 3 (Dual WAN)
WAN port
  • Gigabit (RJ-45) x 1
  • Gigabit (RJ-45) x 2 (Dual WAN)
External Ports
  • USB 3.0 x 1 (5V, 0.9A power output)
  • USB 2.0 x 1 (5V, 0.5A power output)
  • SD card reader x 1 (SDXC, SDHC)
Button and switch WPS, USB/SD eject, Power, Reset, Wi-Fi On/Off
Appearance
Size (Height x Width x Depth) 77 mm x 280 mm x 169 mm
Notes The listed sizes of the RT1900ac and RT2600ac don’t include the antennas
Weight 0.7 kg
Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • CCC
  • VCCI Class B
  • RCM
  • KC
  • iDA
  • TELEC
  • JATE
Wi-Fi Certification
  • CE
  • FCC
  • NCC
  • RCM
  • iDA
  • TELEC
  • KC
Warranty 2 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Others
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/ 60Hz, Single Phase
Power Consumption* 10.80 W (Access)
7.94 W (Idle)
Wireless
IEEE 802.11ac
  • IEEE 802.11a/b/g/n/ac
  • Simultaneous dual-band Wi-Fi
  • 5GHz: 1.73Gbps
  • 2.4GHz: 800Mbps
IEEE 802.11ac wave 2
  • MU-MIMO
  • 2x2 160 MHz (contiguous 80 + 80 MHz)
  • 2x2 80 + 80 MHz (discontiguous)
Notes 2x2 160 MHz (contiguous 80 + 80 MHz) is not supported in Japan
Wi-Fi encryption WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, OWE
Wi-Fi MAC address filter
Maximum MAC filters 64
Seamless roaming 802.11k/v/r standard support
Beamforming
DFS
WDS
Schedulable Wi-Fi
Guest Network
Guest Portal
Customized page style
Connection time limit
Password Rotation
WPS 2.0 (Wi-Fi Protected Setup 2.0)
3G/4G Dongle & Tethering (Learn more)
Maximum connected devices 100
Notes
  • In real-world testing, at least 120 devices can be concurrently connected to RT2600ac
  • Not all of the connected 120 devices are transmitting data, some remained idle
  • RT2600ac supports at least 100 connected devices concurrently transmitting data
  • The numbers above are for reference only. Actual performance and behavior may depend on network environment and settings
Primary Wi-Fi Point
Recommended maximum number of Wi-Fi points:
  • 1 Primary + 6 Wi-Fi points (in all wireless uplink connection environment)
  • 1 Primary + 12 Wi-Fi points (in all wired uplink connection environment. Learn more)
Network
Internet connection Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
3G/4G LTE dongle
Android tethering
iPhone tethering
Operating mode
  • Wireless Router
  • Wireless AP
  • Wireless Repeater (WDS)
Port forwarding Setup via manual management or UPnP
Maximum port forwarding rules 64
Maximum UPnP rules 64
Port triggering
Maximum port triggering rules 32
Minimum port triggering timeout 30s
Maximum port triggering timeout 3600s
DMZ
IPv6 IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6
DHCP Server/client mode, client list, MAC address reservation
Maximum DHCP reservations 500
LAN/WLAN IGMP snooping
VPN
  • VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
  • VPN client (PPTP, OpenVPN, L2TP/IPSec)
  • VPN Pass-through (PPTP, IPSec, L2TP)
Policy route, Static route, Network Address Translation (NAT), PPPoE relay
Maximum IPv4 static routes 100
Maximum IPv6 static routes 100
Diagnosis tools
  • Ping
  • Traceroute
NAT loopback (Hairpinning)
Safe Access
Parental Control
User Profile 15
Network Profile 2
Customized Internet schedule
Time Quota
IPv4/IPv6 DNS-based web filter
  • Schedule
  • Database
  • Request to unblock
Customized allow/block list
  • Maximum blocked URLs: 100
  • Maximum allowed URLs: 100
Pause Internet
Reward
Log
Report
Security
Safe Search Bing, Google, YouTube
Threat Intelligence Database support in IPv4 & IPv6
Google Safe Browsing support in IPv4 & IPv6
Database auto update Threat Intelligence Database, Google Safe Browsing, DNS-based web filter
Traffic Control
Internet ban, device speed & priority
Application layer (L7) quality of service (QoS)
Maximum device rules 64
Maximum application rules per device 32
Traffic Monitor
Live view
Historical statistics Daily, Weekly, Monthly, Annual
Website history
Application Detection
Traffic Report
Country auto update
Schedulable
Traffic analysis period Daily, Weekly, Monthly, Annual
Export formats .CSV, .HTML
VPN Plus Server
VPN Plus Server Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP
Maximum Client VPN Access License 20
Site-to-Site VPN
Maximum Site-to-Site VPN Tunnels 10
Remote Desktop (RDP + VNC) 3
Connection List
Log
Report
Threat Prevention
Threat Prevention Greatly enhance the security of your router, designed to safeguard your network against internet threats
Support
Package Center
Cloud Station Server Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files
Maximum Concurrent File Transfers 128
Notes Cloud Station ShareSync is not supported
DNS Server Helps users find and translate domain names into IP addresses
Download Station Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum Concurrent Download Tasks 50
Maximum concurrent BT download tasks 20
Media Server
  • Media indexing
  • DLNA Compliance
  • PS3/PS4/Xbox 360/Xbox One supported
RADIUS Server Provides centralized authentication, authorization, and accounting for wireless network access
Mobile Apps
DS router (Android/iOS)
  • First Time Installation
  • Network overview
  • Wi-Fi management
  • Wi-Fi system topology
  • Safe Access
  • Traffic Control
  • Network security (firewall, port forwarding, Internet ban)
  • Wake on LAN
  • System Update
VPN Plus (Android/iOS)
DS cloud (Android/iOS)
DS get (Android)
DS file (Android/iOS)
Management
Operating system Synology Router Manager (SRM)
Free OS upgrade
Anywhere access to SRM Synology QuickConnect & Dynamic DNS (DDNS)
Security Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication
Wake on LAN (WOL)
WOL over QuickConnect
Maximum connected devices 100
Notification Email, SMS, push service (via DS router)
SSH
SNMP
Configuration backup & restore
User account management
Printer server Maximum printer: 1
USB/SD Card File Service
File System EXT4, FAT, NTFS, HFS+
Access support
  • File explorer (via LAN only)
  • Web browsers: Chrome™, Firefox®, Internet Explorer®: 11 onwards, Safari® 11 onwards
  • Mobile device: DS file
Protocol support Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV
Apple Time Machine
Shared Folder privileges
Storage hibernation
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Antenna X 4
  • AC Power Adapter X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
