Description

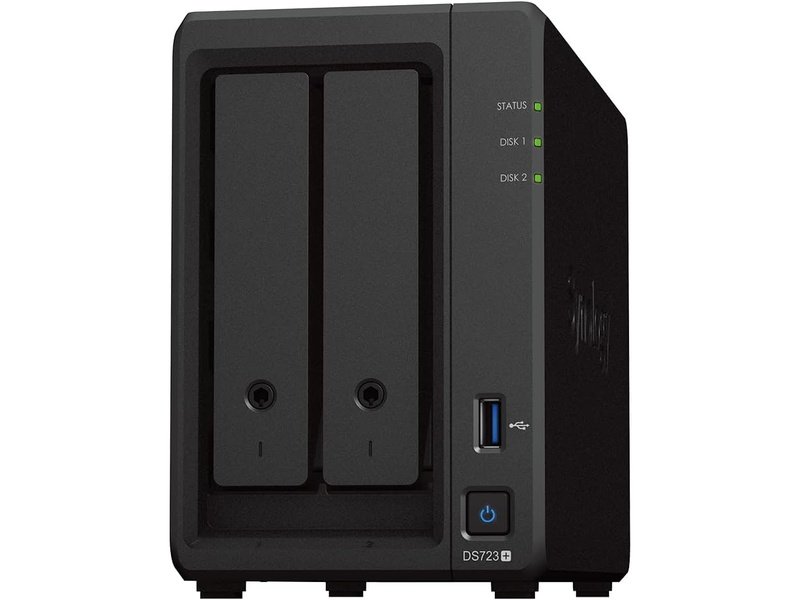

DiskStation® DS723+
Compact and capable storage for home and small business
The performance you need
Reduce transfer times with the DS723+, designed to accelerate your workloads. Easily add faster networking and NVMe drives to further boost performance.
- Up to 471/225 MB/sread/write2
- Up to 10GbE networking3
- 2 x M.2 NVMe cache & storage pool4
Versatile and flexible storage
Make the most of high-performance networking and file access without taking up unnecessary space. DS723+ comes equipped with 2 bays and can scale up to 7 bays with the DX517 expansion unit as your data needs grow.
2 bays 18 TB7 bays 90 TB
Specifications
CPU |
|
---|---|
CPU Model | AMD Ryzen R1600 |
CPU Quantity | 1 |
CPU Architecture | 64-bit |
CPU Frequency | 2-core 2.6 (base) / 3.1 (turbo) GHz |
Hardware Encryption Engine (AES-NI) | |
Memory |
|
System Memory | 2 GB DDR4 ECC |
Memory Module Pre-installed | 2 GB (2 GB x 1) |
Total Memory Slots | 2 |
Maximum Memory Capacity | 32 GB (16 GB x 2) |
Notes |
|
Storage |
|
Drive Bays | 2 |
Maximum Drive Bays with Expansion Unit | 7 (DX517 x 1) |
M.2 Drive Slots | 2 (NVMe) |
Compatible Drive Type* (See all supported drives) |
|
Hot Swappable Drive* | |
Notes |
|

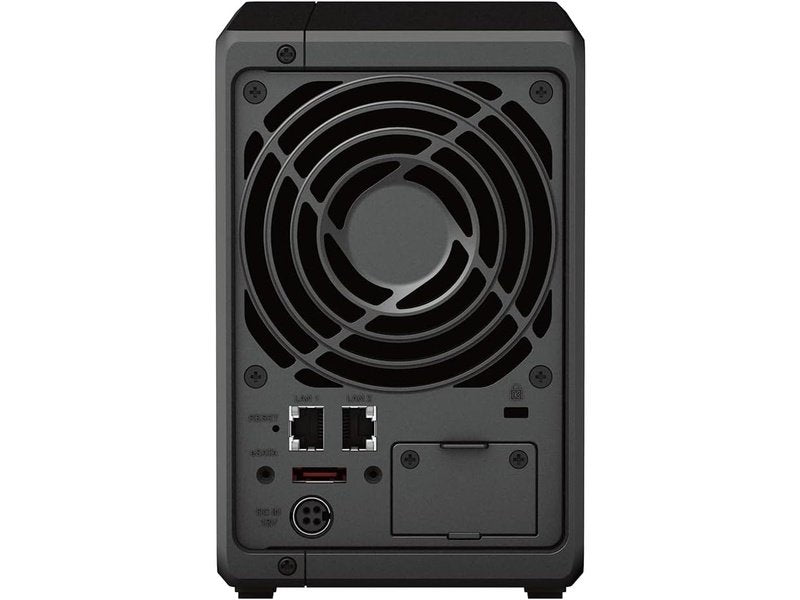

External Ports |
|
RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) |
USB 3.2 Gen 1 Port* | 1 |
eSATA Port | 1 |
Notes |
|
PCIe |
|
PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
File System |
|
Internal Drives |
|
External Drives |
|
Appearance |
|
Size (Height x Width x Depth) | 166 mm x 106 mm x 223 mm |
Weight | 1.51 kg |
Others |
|
System Fan | 92 mm x 92 mm x 1 pcs |
Fan Speed Mode |
|
Brightness Adjustable Front LED Indicators | |
Power Recovery | |
Noise Level* | 20.7 dB(A) |
Scheduled Power On / Off | |
Wake on LAN / WAN | |
Power Supply Unit / Adapter | 65 W |
AC Input Power Voltage | 100V to 240V AC |
Power Frequency | 50/60 Hz, Single Phase |
Power Consumption | 21.07 W (Access) 8.62 W (HDD Hibernation) |
British Thermal Unit | 71.85 BTU/hr (Access) 29.39 BTU/hr (HDD Hibernation) |
Notes |
|
Temperature |
|
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
Relative Humidity | 5% to 95% RH |
Certification |
|
|
