10/25GbE ready
Support for 10/25GbE NICs lets you boost server throughput up to five times using Link Aggregation (bonding).
SSD cache3
Boost read/write IOPS over HDD-only arrays by up to 16 times or more with NVMe or SATA SSD Cache
On-demand drive bays
Expand to 28 drive bays with one RX1217(RP) expansion unit
License-free backup solutions
Back up your NAS to other devices
Hyper Backup
Back up files, iSCSI LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication4, and restore data flexibly with multi-versioning.
Snapshot Replication
Snapshot Replication enables flexible point-in-time snapshots of shared folders, and virtual machines with an RPO as low as 5 minutes and recovery within seconds.
Consolidate backups to your NAS
Active Backup Suite
Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware and Hyper-V virtual machines with the Active Backup Suite.
Leverage built-in deduplication4 technology to reduce backup sizes and multi-versioning to allow flexible restoration.
Serving remote workforces
Keep your remote workforce connected with powerful out-of-the-box solutions for collaboration, file sharing, and communication.
Synology Drive
Host your own private cloud behind the safety of your NAS with 100% data ownership and no subscription fees.
Synology Office
Create documents, spreadsheets, and slides in a multi-user environment. Real-time collaboration and automatic saving make remote work sessions a breeze.
Synology Chat
Chat and collaborate with colleagues using secure end-to-end encryption on with mobile, desktop, and browser clients.
Storage for virtualization
DSM streamlines provisioning for and management of virtual machines with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack virtualization environments.
Synology Storage Console for VMware or Windows platforms lets you manage storage directly from your hypervisor. VMware VAAI integration and Windows ODX help offload storage operations and speed up data transfer.
Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.
Powered by Synology DiskStation Manager
The web-based DiskStation Manager (DSM) operating system supports a host of native productivity and management solutions.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Synology Drive
Instantly access your NAS files across multiple devices whenever you want, wherever you are.
Collaboration Suite
Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.
Virtual Machine Manager
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Surveillance
Protect your home or business with intelligent monitoring and video management tools.
CPU
|
CPU Model | AMD Ryzen V1500B |
---|---|---|
CPU Quantity | 1 | |
CPU Architecture | 64-bit | |
CPU Frequency | 4-core 2.2 GHz | |
Hardware Encryption Engine (AES-NI) | ✓ | |
Memory
|
System Memory | 4 GB DDR4 ECC UDIMM |
Memory Module Pre-installed | 4 GB (4 GB x 1) | |
Total Memory Slots | 2 | |
Maximum Memory Capacity | 32 GB (16 GB x 2) | |
Notes |
|
|
Storage
|
Drive Bays | 16 |
Maximum Drive Bays with Expansion Unit | 28 (RX1217/RX1217RP x 1) | |
Compatible Drive Type* (See all supported drives) |
|
|
Hot Swappable Drive* | ✓ | |
Notes |
|
|

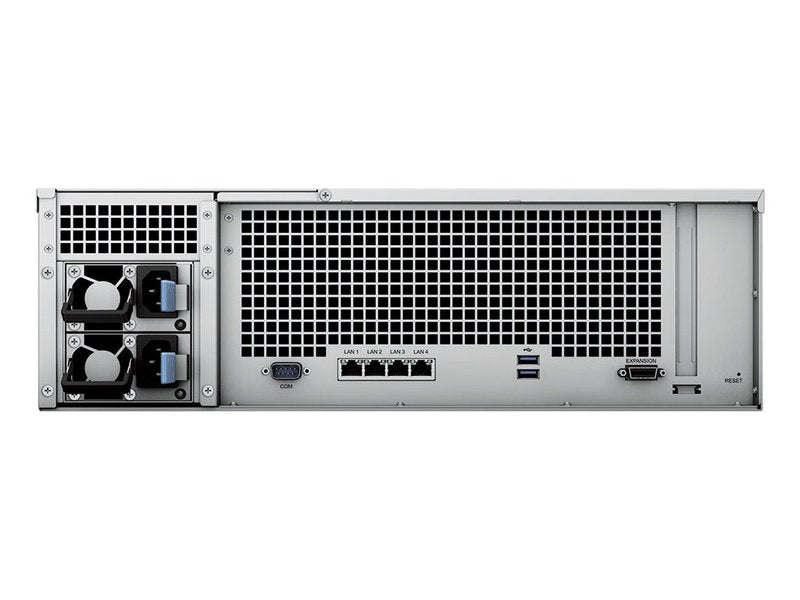

External Ports
|
RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
USB 3.2 Gen 1 Port* | 2 | |
Expansion Port | 1 | |
Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
PCIe
|
PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
File System
|
Internal Drives |
|
External Drives |
|
|
Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
Appearance
|
Form Factor (RU) | 3U |
Size (Height x Width x Depth) | 132.3 mm x 482 mm x 656.5 mm | |
Weight | 17.1 kg | |
Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
Notes | The rail kit is sold separately | |
Others
|
System Fan | 80 mm x 80 mm x 3 pcs |
Fan Speed Mode |
|
|
Easy Replacement System Fan | ✓ | |
Power Recovery | ✓ | |
Noise Level* | 53.5 dB(A) | |
Scheduled Power On / Off | ✓ | |
Wake on LAN / WAN | ✓ | |
Power Supply Unit / Adapter | 550 W | |
Redundant Power Supply | ✓ | |
AC Input Power Voltage | 100 V to 240 V AC | |
Power Frequency | 50/60 Hz, Single Phase | |
Power Consumption | 97.54 W (Access) 49.57 W (HDD Hibernation) |
|
British Thermal Unit | 332.61 BTU/hr (Access) 169.03 BTU/hr (HDD Hibernation) |
|
Notes |
|
|
Temperature
|
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
Relative Humidity | 5% to 95% RH | |
Certification
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus | |
Notes |
|
|
Environment
|
RoHS Compliant | |
Packaging Content
|
|
|
Optional Accessories
|
|
|
Notes | All memory modules will operate at the maximum frequency specified by the CPU manufacturer. |
