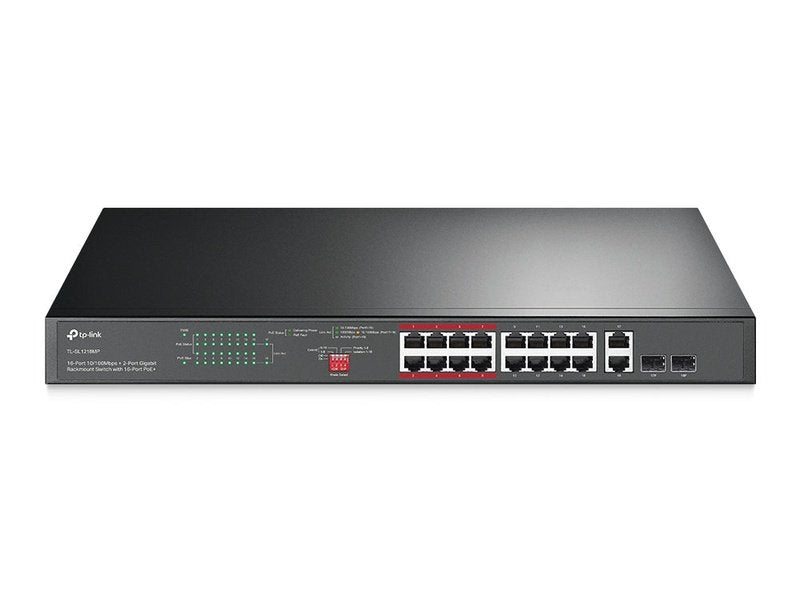

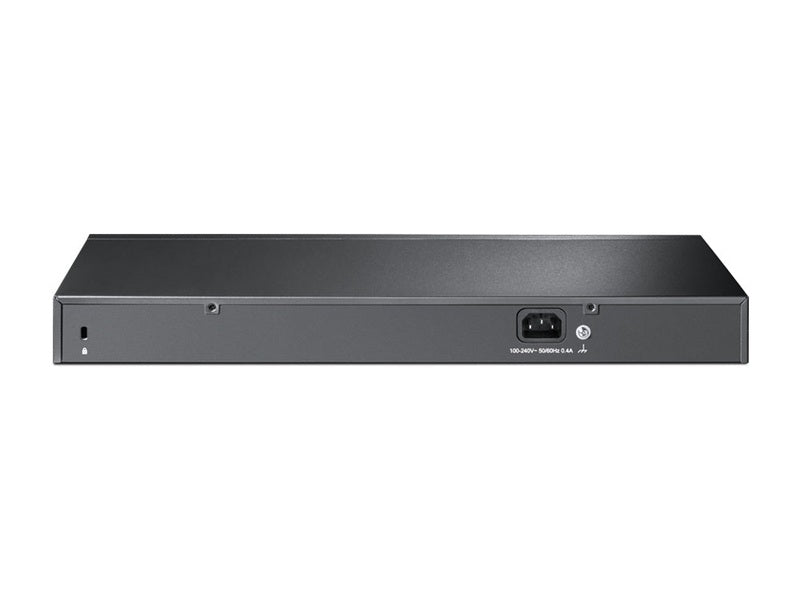

TP-Link TL-SL1218MP 16-Port PoE+ 250W Gigabit Rackmount Switch with 2× Gigabit RJ45 ports

TP-LinkSKU: TL-SL1218MP

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$265.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ [TL-SL1218MP]

    • 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
    • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.*
    • Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
    • Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
    • Isolation Mode allows one-click client traffic separation for higher security and performance.
    • Easy to use, with no configuration and installation needed.

    Specifications

    HARDWARE FEATURES
    Interface • 16 PoE+ 10/100 Mbps RJ45 Ports
    • 2× 10/100/1000 Mbps RJ45 Ports
    • 2× Combo Gigabit SFP Slots
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    • EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-X MMF, SMF
    Fan Quantity 2 Fans
    Physical Security Lock Yes
    Power Supply 100–240V AC, 50/60 Hz
    PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant
    • PoE Ports: Ports 1–16
    • PoE Power Budget: 250 W
    Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in
    (440 × 180 × 44 mm)
    Max Power Consumption • 15.0 W (no PD connected)
    • 285.8 W (with 250 W PD connected)
    Max Heat Dissipation • 51.1 BTU/h (no PD connected)
    • 974.6 BTU/h (with 250 W PD connected)
    PERFORMANCE
    Switching Capacity 7.2 Gbps
    Packet Forwarding Rate 5.36 Mpps
    MAC Address Table 8K
    Jumbo Frame 10 KB
    SOFTWARE FEATURES
    Advanced Features • Compatible With IEEE 802.3at/af Compliant PDs
    • Extend Mode (Up to 250m PoE power supply and data transmission)
    • Priority Mode
    • Isolation Mode
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE802.3x Flow Control
    Transmission Method Store-And-Forward
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • TL-SL1218MP
    • Power Cable
    • Installation Guide
    • Two mounting brackets and the fittings
    Environment • Operating Temperature: 0–50 °C (32–122 °F)
    • Storage Temperature: -40–70 °C (-40–158 °F)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
