Description

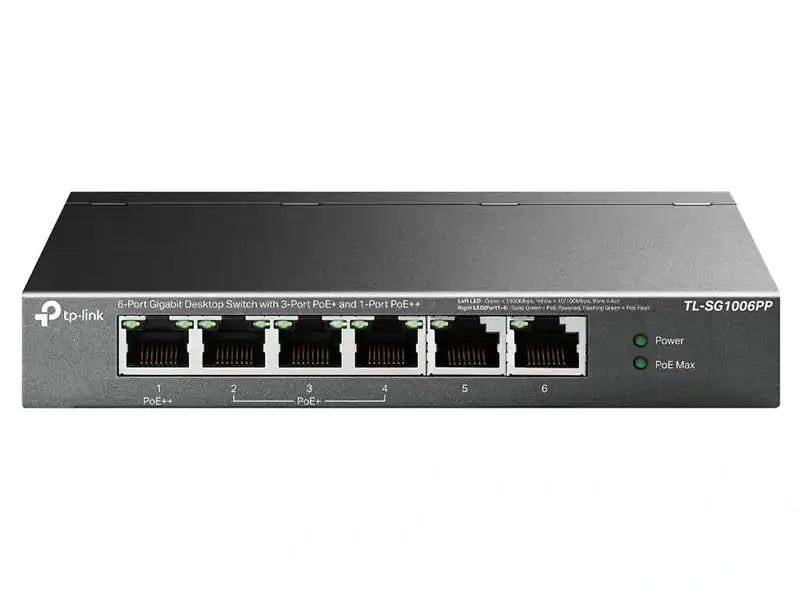

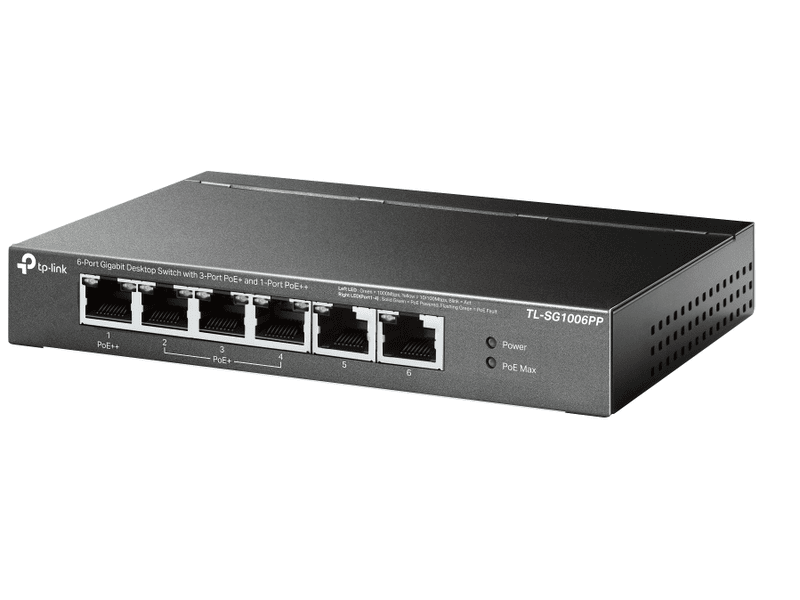

6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ [TL-SG1006PP]
- 6× 10/100/1000 Mbps RJ45 ports

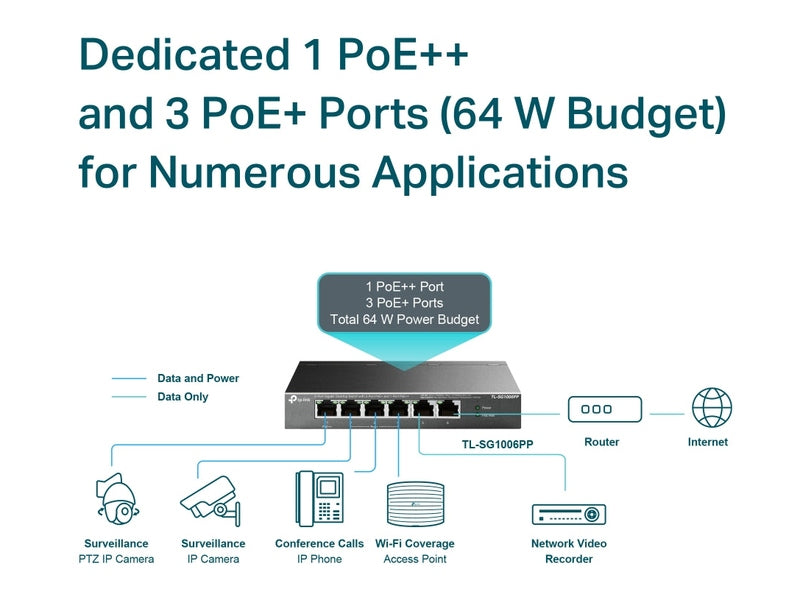

- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports*

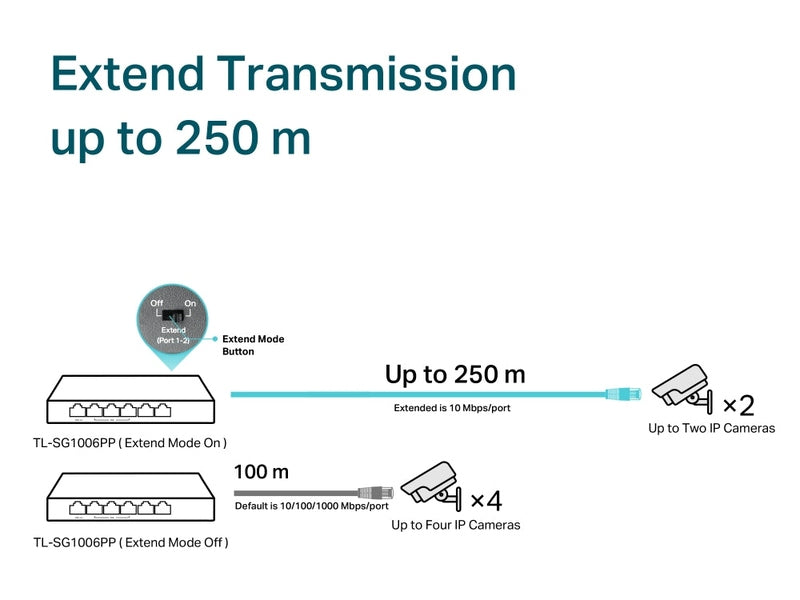

- Up to 250m data and power transmitting range under Extend Mode**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
Intelligent Power Management
When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Specifications
HARDWARE FEATURES | |
---|---|
Interface | • 6× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Packet Forwarding Rate | 8.928 Mpps |
PoE Ports (RJ45) | • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at • Power Supply: 64 W |
Mac Address Table | 4K |
Switching Capacity | 12 Gbps |
Dimensions ( W x D x H ) | 6.2x4.0x1.0 in (158x101x25 mm) |
Max Power Consumption | • 4.75 W (220/50 Hz. no PD connected) • 71.46 W (220/50 Hz. with 64 W PD connected) |
Max Heat Dissipation | • 16.20 BTU/h (220/50 Hz. no PD connected) • 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
SOFTWARE FEATURES | |
---|---|

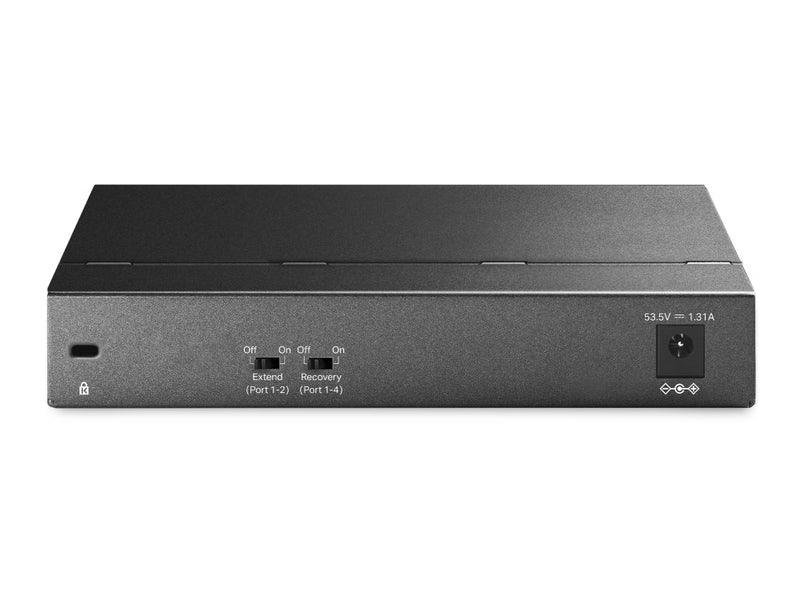

Advanced Features | • Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) |
Transfer Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | • TL-SG1006PP • Power Adapter • Installation Guide |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
