TP-Link Gigabit PCI Express Network Adapter

TP-LinkSKU: TG-3468

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$26.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

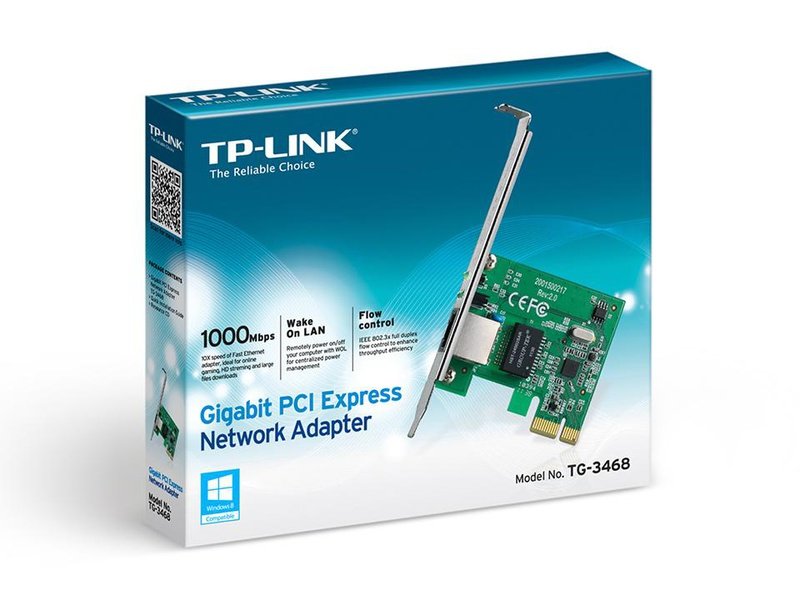

Gigabit PCI Express Network Adapter [TG-3468]

  • 10/100/1000Mbps PCIe Adapter
  • 32-bit PCIe interface, saving the finite chassis space
  • Wake-on-LAN, convenient to manage over LAN

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Interface PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Status
Wireless Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rates 10/100/1000Mbps for Half-Duplex mode,
20/200/2000Mbps for Full-Duplex mode
Dimensions 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Flow Control IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification FCC, CE, RoHS, BSMI, VCCI
Package Contents Gigabit PCI Express Network Adapter TG-3468
Quick Installation Guide
Resource CD
Low-profile Bracket
System Requirements Windows 10/8.1/8/7
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
