TP-Link Media Converter 10/100 RJ45 WDM PoE 1310NM TX 1550NM RX

TP-LinkSKU: FC111PB-20

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$49.00

Estimate shipping

Description

10/100Mbps WDM Media Converter with 1-Port PoE

  • Converts the data between fiber (optical signal) and copper (electric signal).
  • Extends fiber distance up to 20 km.
  • The 802.3af PoE output makes remote camera deployment easier and more convenient.
  • WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fibre strand instead of two.
  • Wide operating temperature (0–50 ℃) with reliability.
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.

Specifications

NETWORK
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
HARDWARE FEATURES
Interface • 1× 10/100 Mbps PoE RJ45 port (Auto MDI/MDIX)
• 1× 100 Mbps SC fiber port
Network Media 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)

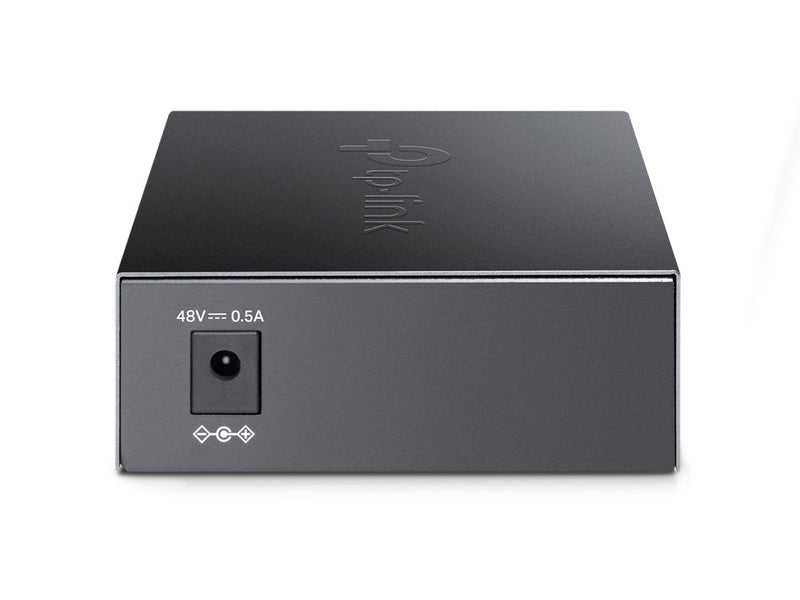

Power Supply 48 V/0.5 A
LED PWR, Link/Act, PoE
Wave Length 1310 nm TX, 1550 nm RX
Dimensions ( W x D x H ) 3.7×2.9×1.1 in (94.5×73.0×27.0 mm)
MEDIA CONVERTER & MODULE
Fiber Type 9/125 μm single-mode fber (≤20 km)
ENVIRONMENT
Operating Temperature 0–50 °C (32–122 °F)
Storage Temperature -40–70 °C (-40–158 °F)
Operating Humidity 10–90% RH non-condensing
Storage Humidity 5–90% RH non-condensing
OTHERS
Package Contents • Media Converter TL-FC111PB-20
• Power Adapter
• Installation Guide
