Mercusys 7-Port PoE+ 65W Gigabit Desktop Switch with RJ45 ports

TP-LinkSKU: MS108GP

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$55.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

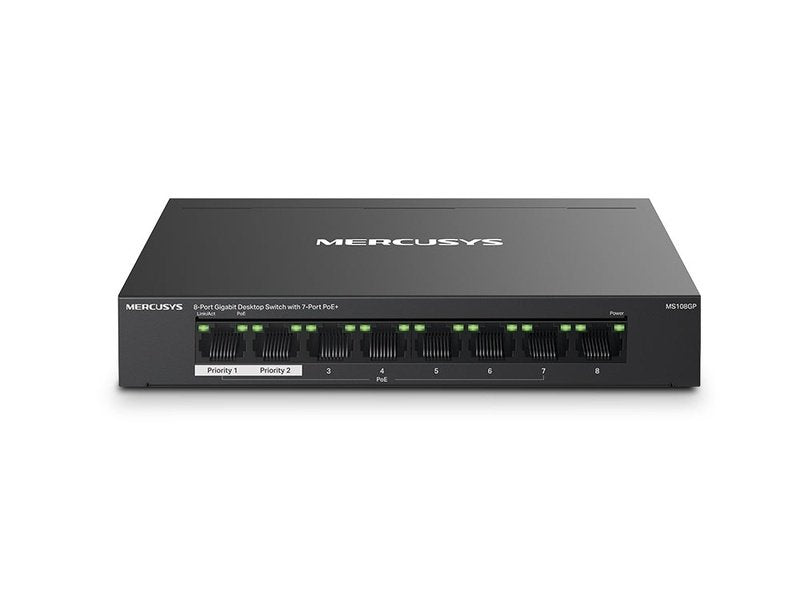

8-Port Gigabit Desktop Switch with 7-Port PoE+ [MS108GP]

  • Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
  • Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life
  • Plug and Play: Simple to use and saves time and effort



7 PoE+ Ports (65 W Budget) for Network Deployment

All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

No Fuss

No need for electricians; simplify installation and deployment.

Cost-Efficiency

Getting rid of extra cables and power adapters will save money on infrastructure.

Flexibility

Deployment in complex situations is made possible by more placement possibilities.

Power Management

Improves power usage while intelligently protecting your gadgets from power surges.

IEEE 802.3af/at

PoE ports compliant with the 802.3af/at Powered Devices.



Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Traffic Separation

With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection.

Port Prioritization

Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.

Plug and Play

MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.



Durable and Silent

MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.



Specifications

Hardware Details
Dimensions (W x D x H) 171 x 98 x 27 mm
PoE Ports RJ45
- Compliant with 802.3af/at Powered Devices
- PoE Ports: Port 1-7
- PoE Power Budget: 65 W
External Power Supply External Power Adapter (Output: 53.5V/1.31A)
Standards and Protocols IEEE 802.3x Flow Control
Data Rates 10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Jumbo Frame 15 KB
MAC Address Table 8K
Max Power Consumption 5.07W (220 V / 50 Hz, no PD connected)
77.33W (220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation 17.238 BTH/h (no PD connected)
262.922 BTH/h (with 65W PD connected)
Others Package Contents
• 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
• Power Adapter
• Quick Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
