Description
ES220GMP

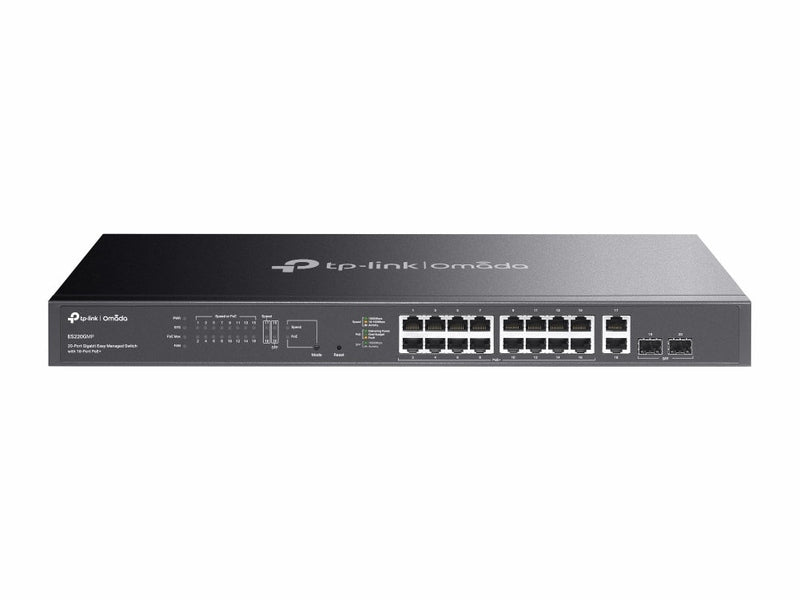

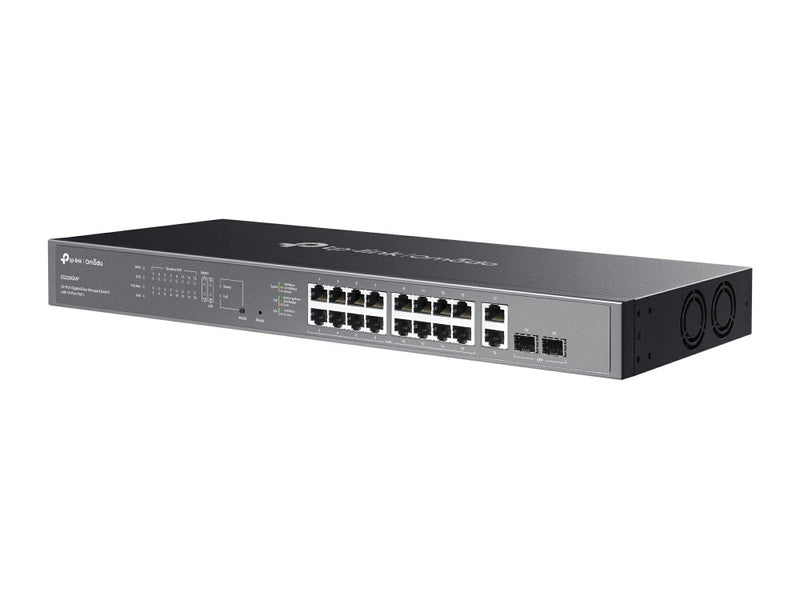

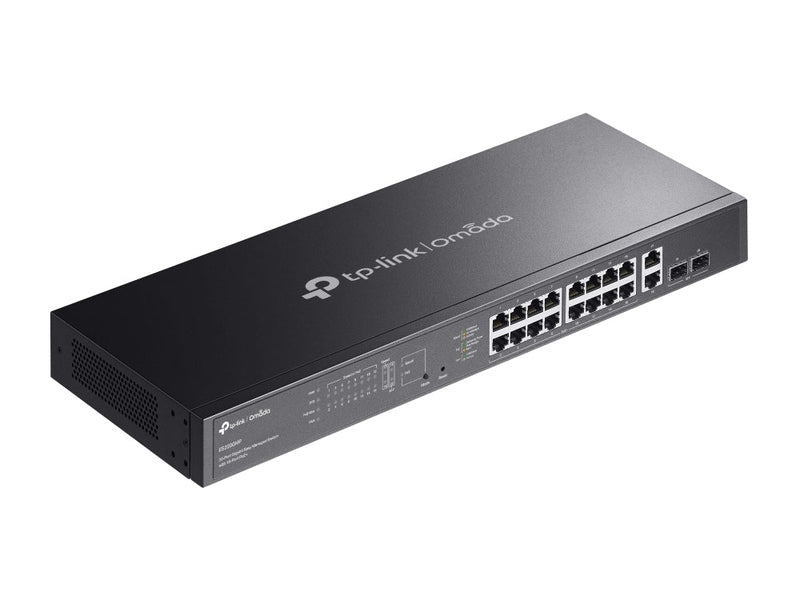

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
- 16× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
- 2× Gigabit RJ45 port, 2× Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Specifications
HARDWARE FEATURES | |
---|---|
Interface | • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot |
Fan Quantity | 2 |
Installation | Rackmountable |
Physical Security Lock | √ |

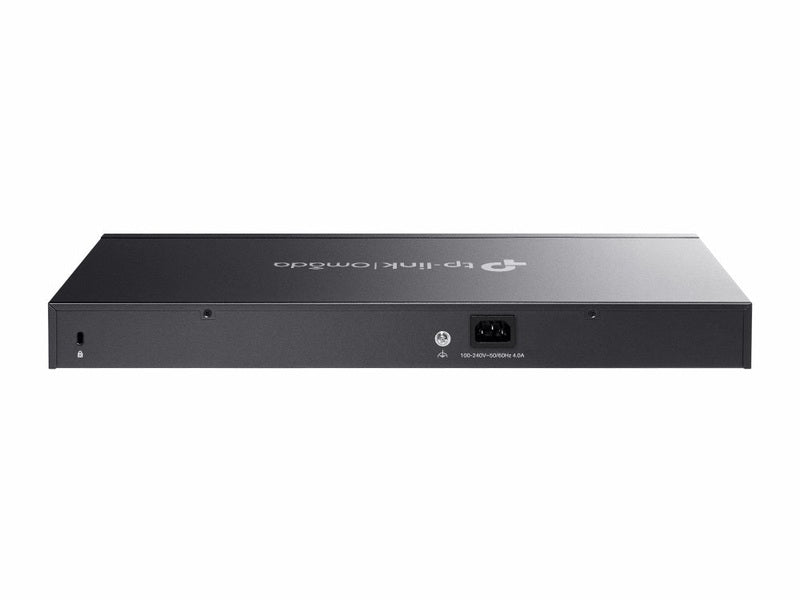

Power Supply | 100–240 VAC, 50/60 Hz |
PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm) |
Surge Protection | ±6kV |
PERFORMANCE | |
---|---|
Switching Capacity | 40 Gbps |
Packet Forwarding Rate | 29.76 Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4 Mbit |
Jumbo Frame | 15 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
Transmission Method | Store-And-Forward |
MANAGEMENT | |
---|---|
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | • ES220GMP • Power Adapter • Installation Guide • Rubber Feet |
Environment | • Operating Temperature: -5℃~50℃ (23℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
