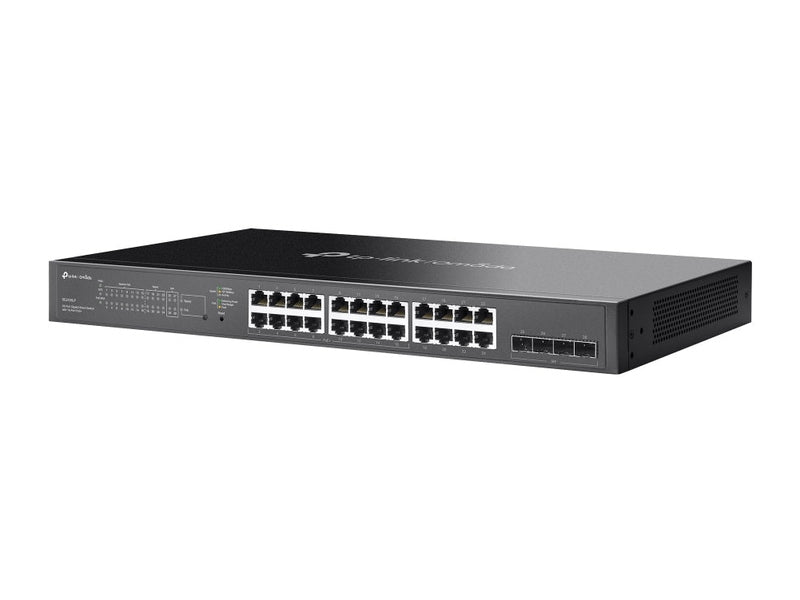

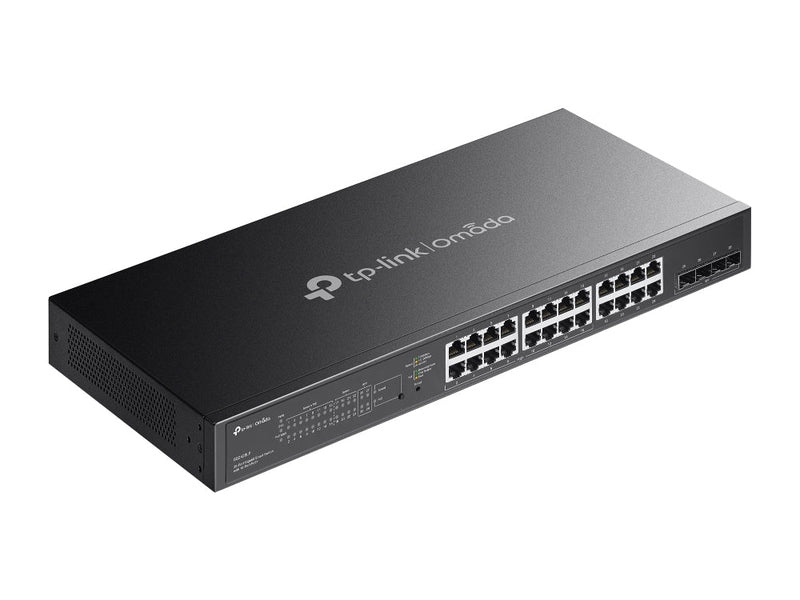

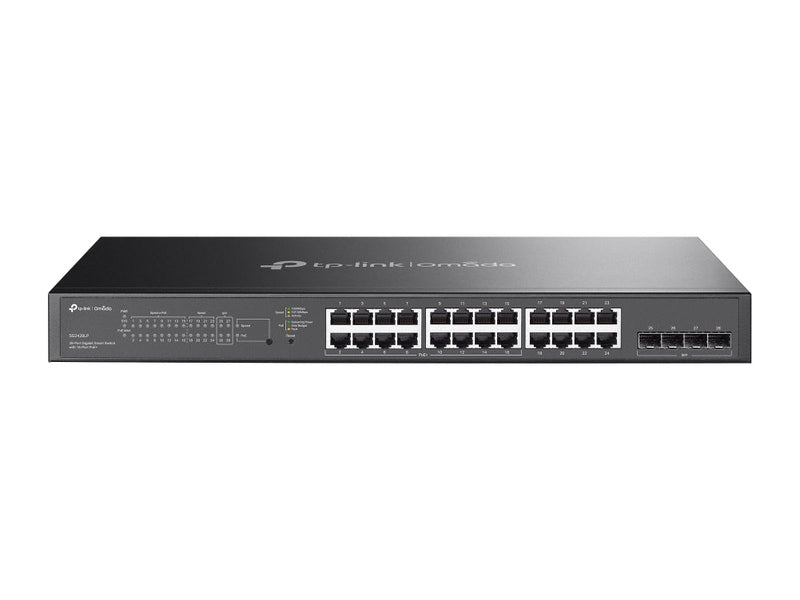

Omada 28-Port
Gigabit Smart Switch
with 16-Port PoE+
SG2428LP
Need Help? 💬 Call us at (02) 9649 3288 or email to sales@pclan.com.au—— 0% surcharge on credit card/debit card payment !
Use this bar to show information about your cookie policy.
Before your contact us for return and warranty of your purchase, please be aware the following terms and conditions.
*All return enquiry should send to RA@pclan.com.au to avoid delay.
Page Index
We encourage customers to carefully consider their purchases before placing an order. However, if a non-faulty item needs to be returned due to a change of mind or incorrect purchase, please refer to our policy below:
All brand new products (with the exception of consumable products and software) sold by PC Lan Pty Ltd are covered by Australian manufacturer warranty. For used or ex-demo product, warranty terms will be stated in the listing, or otherwise, customer can contact us for warranty information.
If your item is confirmed to be defective when delivered, it will be treated as Dead On Arrival (DOA). The DOA period is 14 days from your invoice date. DOA claims are eligible for a refund or replacement after the faulty item has been returned to us.
Please note:
If a product is outside the 14-day DOA period, the standard manufacturer warranty terms will apply. As some of our products, like electronics and computers, require specialized support, we strongly recommend that you first contact the manufacturer for troubleshooting assistance. Their support team is more knowledgeable in diagnosing and resolving issues and can help minimize delays that may arise from us acting as an intermediary. However, if the manufacturer is unable to assist, our team can step in and provide further assistance. Our product's Manufacturer Contact.
Please note:
Once we receive a faulty product, we will send it to the manufacturer or their authorized service center for assessment. However the return will be rejected in below cases:
After we receive the repaired or replacement unit from manufacturer, we will arrange return delivery to you.
Note: If the fault is not covered by the manufacturer's warranty or extended warranty (if applicable), we will provide you with a quote for the repair cost and any costs associated with the processing of the return prior to returning the product(s) to you.
Company |
Phone/Email |
Acer Service Centre |
1300 362 328 (Laptop, LCD) |
APC |
13 73 28 (Tech Support) |
ASUS |
1300 278 788 |
Belkin |
1800 235 546 (English only 24/7) |
Cisco |
1800 805 227 |
CyberPower |
1300 431 808 |
D-Link |
1300 766 868 |
Dahua |
1800 327 457 |
Eaton |
1300 877 877 |
Epson Service Centre |
1300 361 054 |
Fujitsu Service Centre |
1800 288 283 |
Fujixerox |
1800 883 668 |
LaCie |
*Please contact LaCie (Seagate) for Warranty |
Lenovo |
131 426 |
Lexmark (Return to PC Lan) |
(07) 3377 5888 |
LG Service Centre |
1800 643 156 |
Linksys |
1800 605 971 |
Logitech |
1800 025 544 |
HP Service Centre |
131 047; 1300 721 147 (Printer); 131 047 (scanner) |
IBM Service Centre |
1800 289 426 |
Kingston |
1800 620 569 |
Motorola |
1300 138 823 |
Zebra |
1800 457 439 / TSAPAC@zebra.com (Printers) |
Philips |
1300 651 993 |
Qnap |
Contact QNAP Support |
Samsung Service Centre |
1300 362 603 |
Seagate |
|
Sony |
1300 137 669 |
Synology |
Contact Synology Support |
Toshiba |
(02) 9887 6000; 13 30 70 |
Viewsonic Centre Centre |
1800 880 818 |
Wacom |
(02) 9422 6700 |
Western Digital |
SG2428LP
SG2428LP
24× Gigabit Ports
(16× PoE+),
4× Gigabit SFP Slots
150 W Total
PoE Budget*
Fanless Design for
Silent Operation
Zero-Touch
Provisioning†
Centralized
Management†
Omada
App†
Static
Routing
Traffic
Separation
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Works with IP Cameras
Works with IP Phones
Works with Access Points
Works with Non-PoE Devices such as PCs and Printers
HARDWARE FEATURES | |
---|---|
Interface |
• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto
MDI/MDIX) • 8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots |
Fan Quantity | Fanless |
Physical Security Lock | √ |
Power Supply | 100-240V AC, 50/60Hz |
PoE Ports (RJ45) |
• Standard: 802.3at/af compliant • PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port) • PoE Power Budget: 150 W* |
Dimensions ( W x D x H ) | 17.3×8.7×1.73 in (440×220×44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 184.7 W (110V/60Hz) (with 150 W PD connected) |
Max Heat Dissipation | 628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 56 Gbps |
Packet Forwarding Rate | 41.66 Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service |
• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control: Port/Flow-based Rating Limit • Smoother Performance • Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control |
L2 and L2+ Features |
• 16 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
L2 Multicast |
• 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile) |
Advanced Features |
• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† |
VLAN |
• VLAN Group: Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
Access Control List |
• Support up to 230 entries • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding |
Security |
• IP-MAC-Port Binding • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Radius authentication and accountability support • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
IPv6 |
• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
MIBs |
• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
MANAGEMENT | |
---|---|
Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management |
• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
Management Features |
• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
OTHERS | |
---|---|
Certification | CE, FCC |
Package Contents |
• SG2428LP • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
System Requirements | Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
