Description
ES206GP

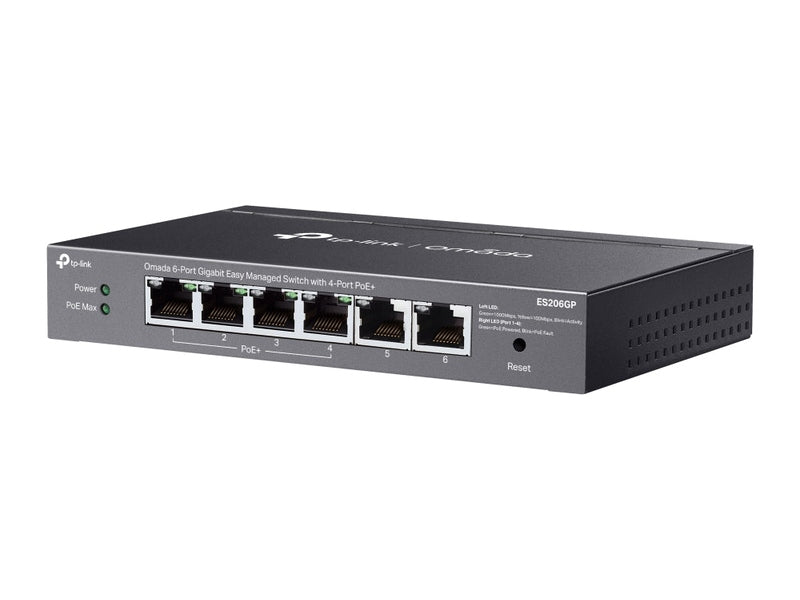

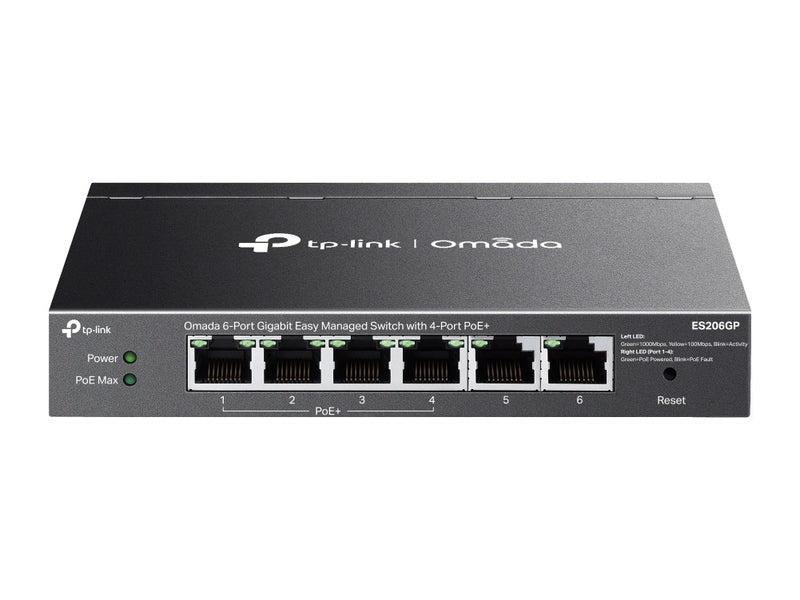

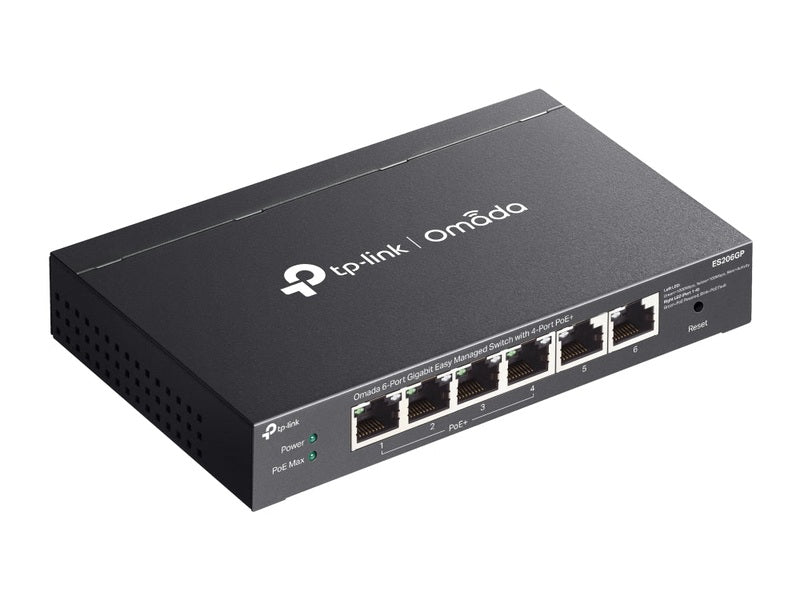

Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
- 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

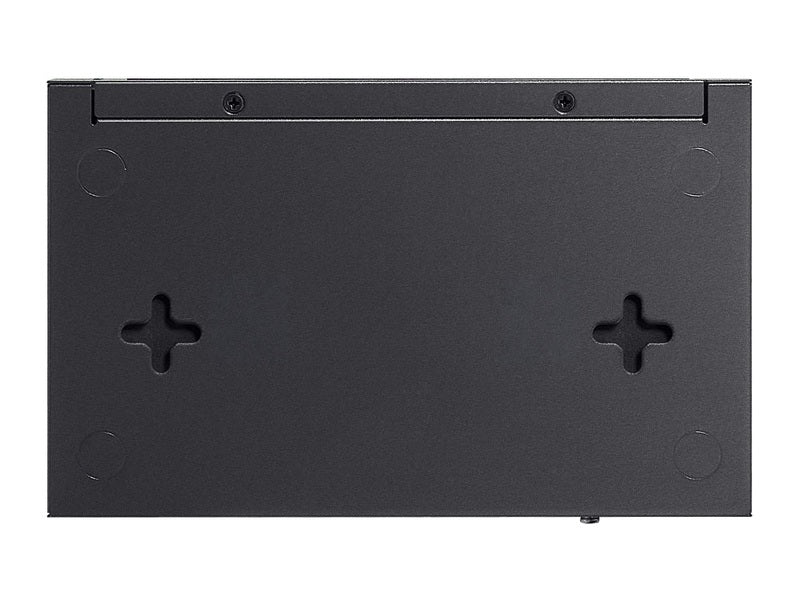

- Durable metal casing and desktop/wall mounting design
Specifications
HARDWARE FEATURES | |
---|---|
Interface |
• 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE
and 802.3at PoE+) • Auto-Negotiation/Auto MDI/MDIX |
Fan Quantity | Fanless |
Installation |
• Desktop • Wall Mount |
Physical Security Lock | √ |
Power Supply | DC Power Adapter (Output: 53.5VDC / 1.31A) |
PoE Ports (RJ45) |
• Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
Surge Protection | ±6kV |
PERFORMANCE | |
---|---|
Switching Capacity | 12 Gbps |
Packet Forwarding Rate | 7.4 Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4 Mbit |
Jumbo Frame | 15 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service |
• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
L2 Features |
• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
L2 Multicast |
• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
VLAN |
• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
Transmission Method | Store-And-Forward |
MANAGEMENT | |
---|---|
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management |
• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features |
• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents |
• ES206GP • Power Adapter • Power Cord • Rubber Feet • Installation Guide |
Environment |
• Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
