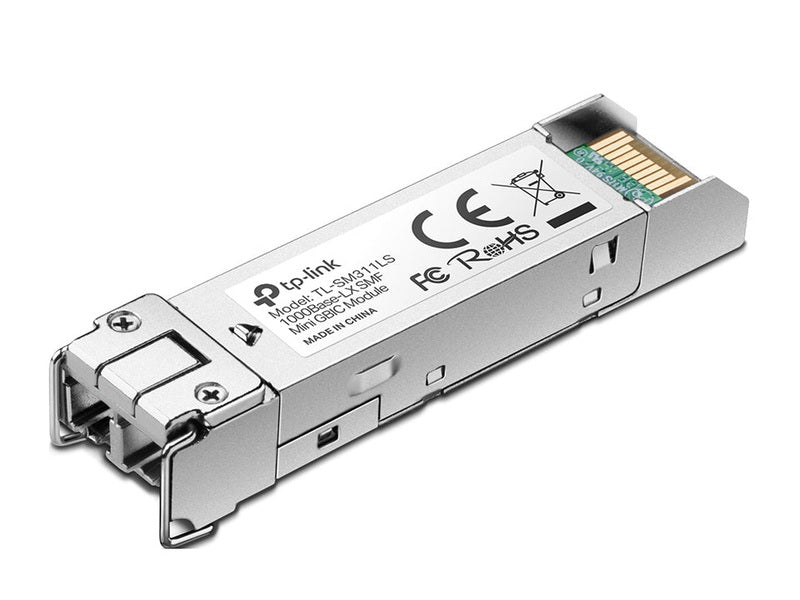

TP-Link SFP Module Single Mode 10KM

TP-LinkSKU: SM311LS

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$29.00

Estimate shipping

Description

MiniGBIC Module

  • Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fibre)
  • Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L.
  • Work with MC210CS with a single-mode fibre connection

Specifications

HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP
Wave Length 1310nm
Dimensions (W*D*H) 2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
Power Supply 3.3V
Safety & Emission FCC, CE
Cable Single-mode Fiber
Fiber Type 9/125 μm Single-mode
Max. Cable Length 20 km
Data Rate 1.25Gbps
Port Type LC/UPC
Hardware Features • DDM
• SFP-MSA
• Hot Swappable
Package Contents • SFP Module SM311LS (TL-SM311LS)
• Installation Guide
Environment Operating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
PACKAGE CONTENTS
Package Contents • SFP Module TL-SM311LS
• Installation Guide
