Description

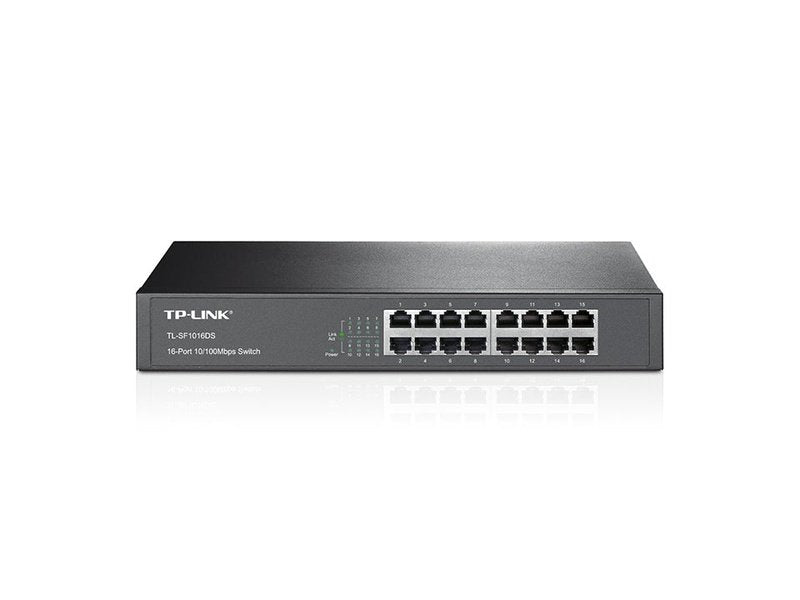

16-Port 10/100Mbps Desktop/Rackmount Switch [TL-SF1016DS]

  • 16 10/100M RJ45 ports.
  • Green Ethernet technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX.
  • Standard 13-inch steel case.



What This Product Does

The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.



Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (max 100m)
100BASE-TX: UTP category 5, 5e or above cable (max 100m)
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 2.1W
Dimensions (W x D x H) 11.6×7.1×1.7 in. (294×180×44 mm)
Mounting Rack Mountable
Max Heat Dissipation 7.03BTU/h
PERFORMANCE
Switching Capacity 3.2Gbps
Packet Forwarding Rate 2.38Mpps
MAC Address Table 8K
Buffer Memory 2Mb
Advanced Functions Green Technology
802.3X Flow Control
Innovative energy-efficient technology saves power up to 75%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, RoHS
Package Contents 16-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment Operating Temperature: 0℃40℃ (32℉104℉);
Storage Temperature: -40℃70℃ (-40℉158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
