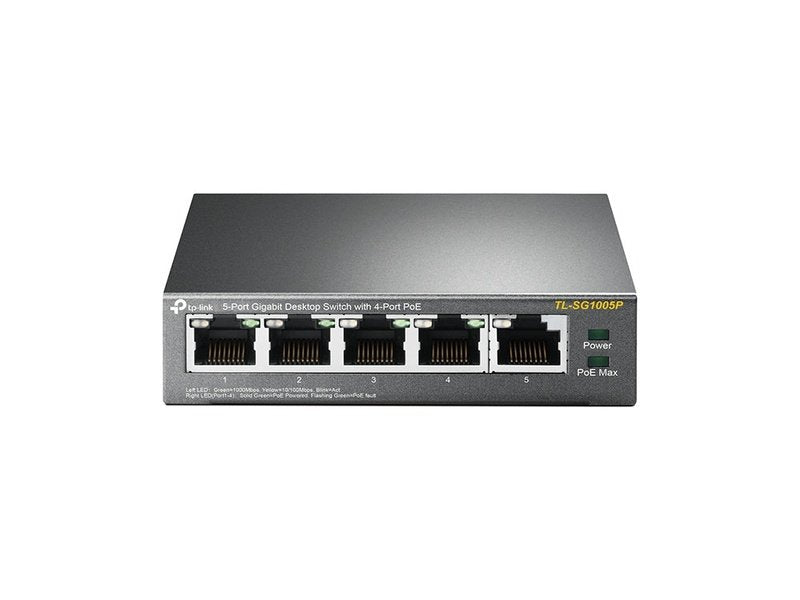

TP-Link TL-SG1005P 4-Port PoE 65W Gigabit Desktop Switch with 1-Port RJ45

TP-LinkSKU: TL-SG1005P

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$64.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

5-Port Gigabit Desktop Switch with 4-Port PoE [TL-SG1005P]

  • 5× 10/100/1000 Mbps RJ45 ports
  • With four PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for all PoE ports*
  • Up to 250m data and power transmitting range under Extend Mode**
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

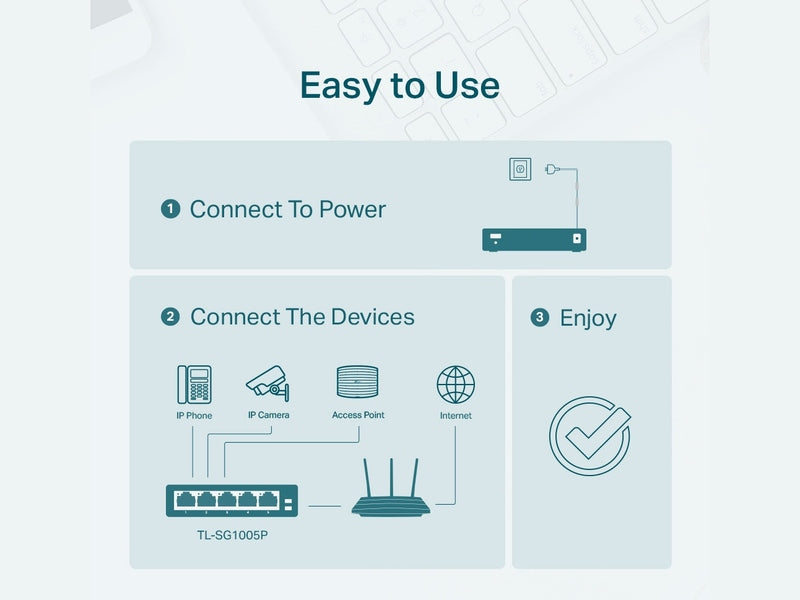

  • Plug and Play, no configuration and installation required

PoE Switches for Your Ultra Convenience

5-Port Gigabit Desktop Switch with 4-Port PoE

TL-SG1005P

Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af-compliant Powered Devices (PDs).

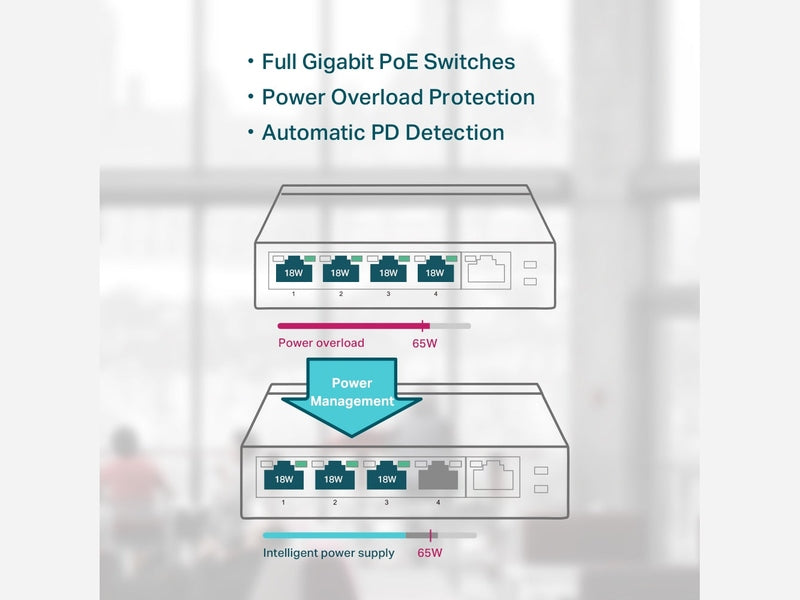

Intelligent Power Management

When total power consumption excels 65W, intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Sturdy Metal Casing

Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, the fanless design ensures quiet operation.



Specifications

Interface

5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Power Consumption

63.31W (max. with 56w PoE device connected)
4.26W (max. no PoE device connected)

External Power Supply

External Power Adapter(Output: 48VDC / 1.25A)

PoE Ports (RJ45)

Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W

Backbound Bandwidth

10Gbps

Mac Address Table

2K

Dimensions ( W x D x H )

3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)



Advanced Features

Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transfer Method

Store-And-Forward



Certification

FCC, CE, RoHS

Package Contents

TL-SG1005P, Power Adapter, Installation Guide

Consumption

4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
