Description

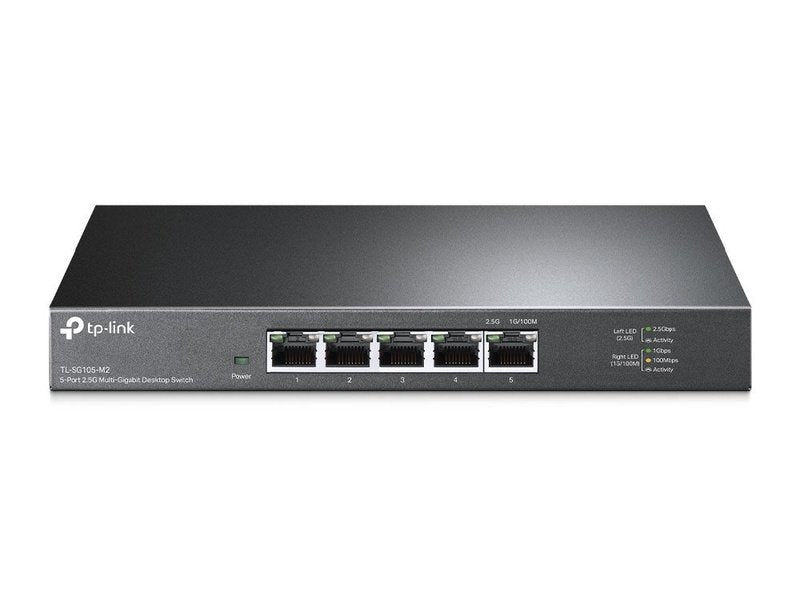

5-Port 2.5G Desktop Switch [TL-SG105-M2]
As the flagship 2.5G products, the 5/8-Port desktop switches with 5/8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G WiFi 6 AP, 4K video, desktop, and more.

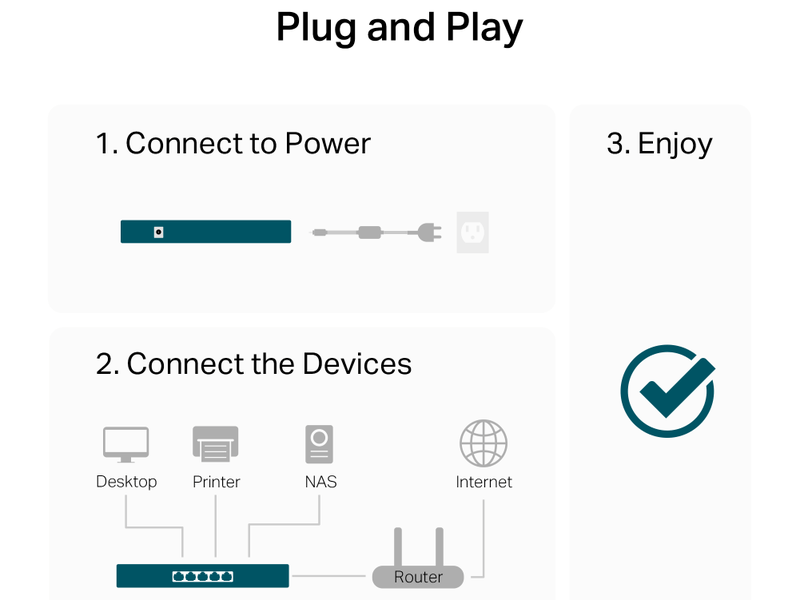

Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Flexible Deployment Options

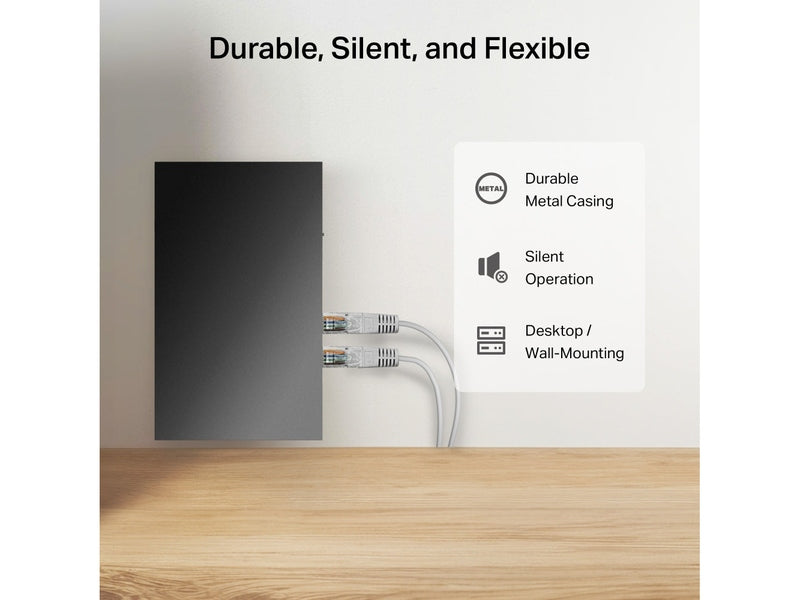

The versatile mounting system gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The wireless speeds listed here are the maximum theoretical data rates. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Video transfer estimates are based on the minimum time needed when all relevant devices are performing at their maximum possible capacity. Actual transfer time is not guaranteed and will vary as a result of environmental factors, network conditions, and client limitations.
*2.5× faster speeds refer to the speeds compared to standard 1G ports. The actual speeds may vary due to cable quality and type, client limitations, and environmental factors.
**Only Cat5e or better cables do not need to be replaced.
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
Interface | 5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX |
Fan Quantity | Fanless |

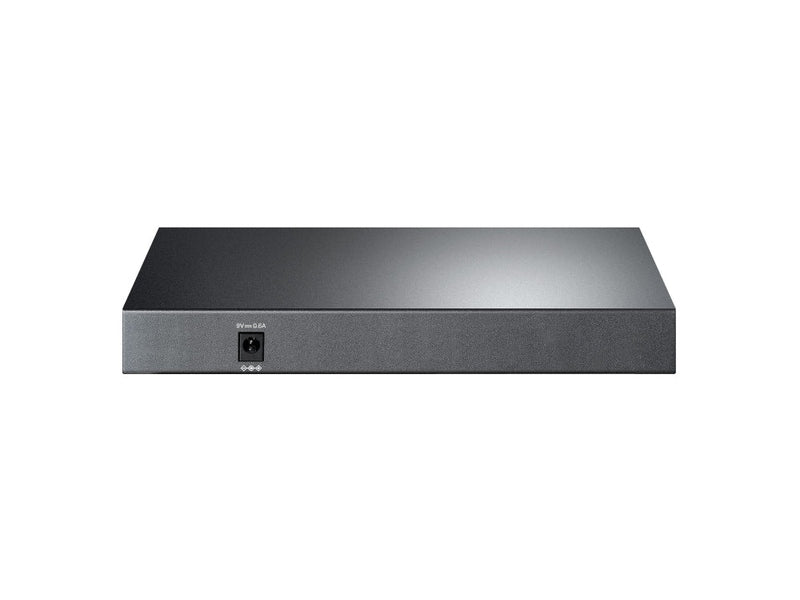

External Power Supply | External Power Adapter (Output: 12 VDC / 1 A) |
LED Indicator | • System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
Max Power Consumption | 12.11 W |
Max Heat Dissipation | 41.32 BTU/h |
PERFORMANCE | |
Switching Capacity | 25 Gbps |
Packet Forwarding Rate | 18.6 Mpps |
MAC Address Table | 16 K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 10 KB |
SOFTWARE FEATURES | |
Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
Transfer Method | Store and Forward |
OTHERS | |
Certification | CE, FCC ,RoHS |
Package Contents | • 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 • Power Adapter • Installation Guide • Rubber Feet |
Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
