Description

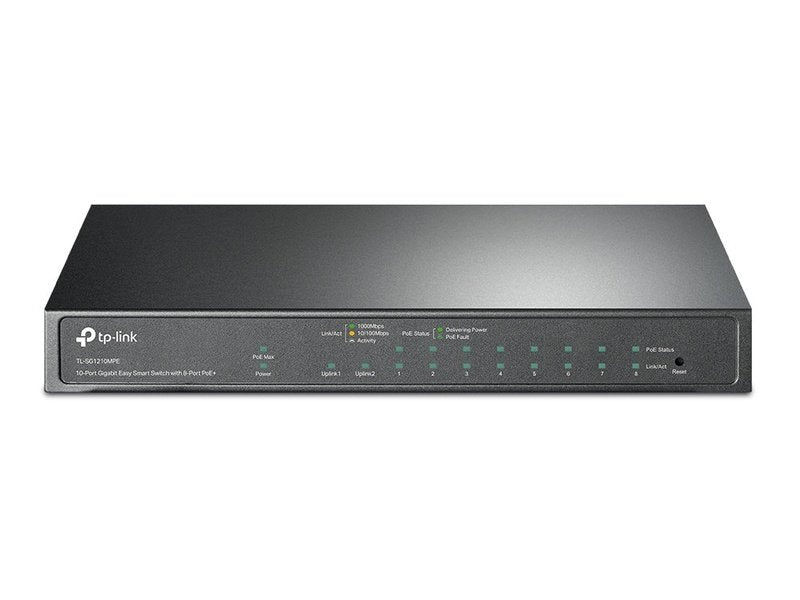

10-Port Gigabit Easy Smart Switch with 8-Port PoE+ [TL-SG1210MPE]
- 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
- Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
- Supports PoE power up to 123 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Professional 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
Multiple Application Scenarios
The TL-SG1210MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Dedicated 8 PoE+ Ports (123 W Budget) for
Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 123 W PoE power budget* for the 8× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Value-Added Features Bring Unexpected Experiences
Specifications
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z |
Interface | 9× 10/100/1000 Mbps RJ45 Ports 1× 1000 Mbps Combo SFP/RJ45 Port AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Power Supply | External Power Adapter (Output: 53.5 VDC/2.43 A) |
PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 123 W |

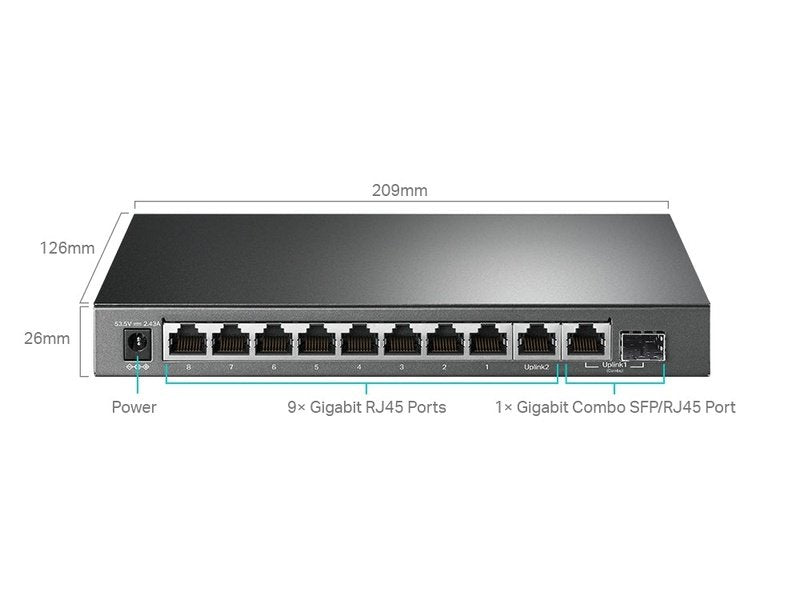

Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
Max Power Consumption | 7.66 W (220V / 50Hz with no PD connected) 141.54 W (220V / 50Hz with 123 W PD connected) |
Max Heat Dissipation | 26.12 BTU/h (220V / 50Hz with no PD connected) 482.65 BTU/h (220V / 50Hz with 123 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 20 Gbps |
Packet Forwarding Rate | 14.88 Mpps |
MAC Address Table | 4 K |
Jumbo Frame | 16 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
PoE | Extend Mode** PoE Auto Recovery |
Management | Web-based GUI Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | TL-SG1210MPE Power Adapter Installation Guide Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
