Description

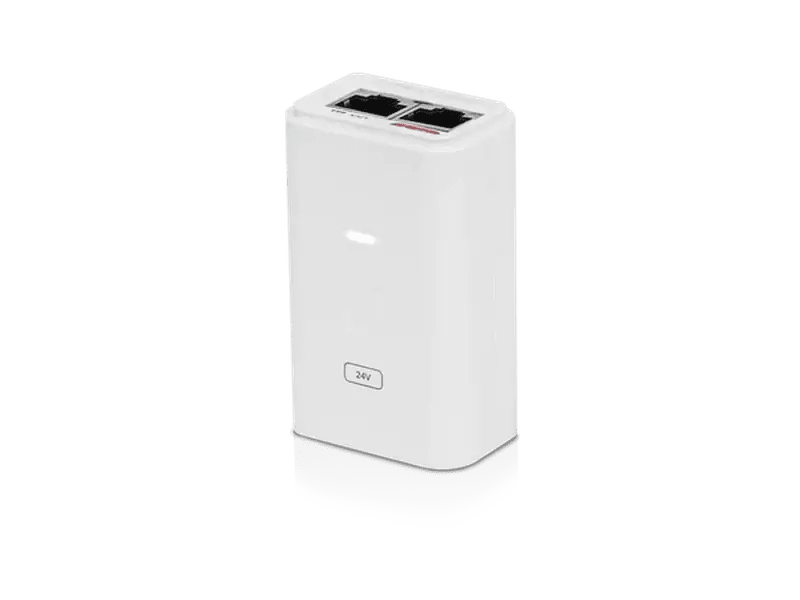

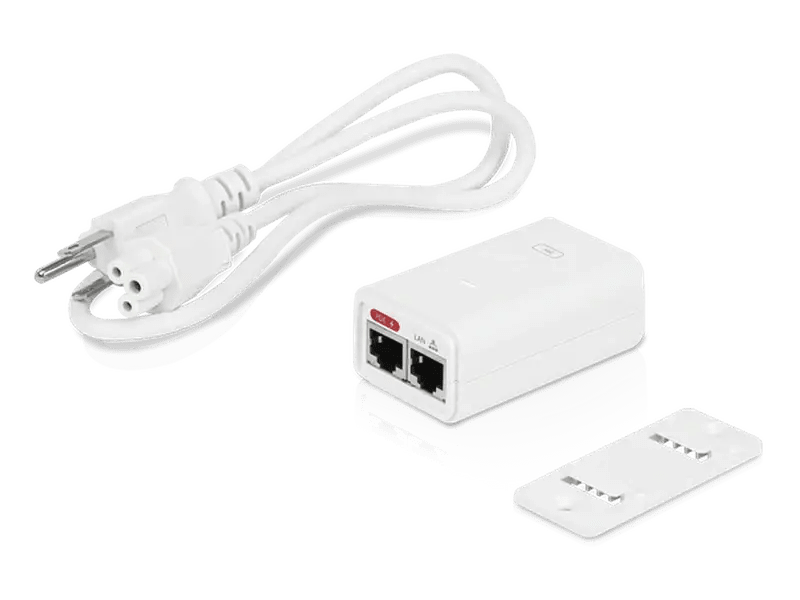

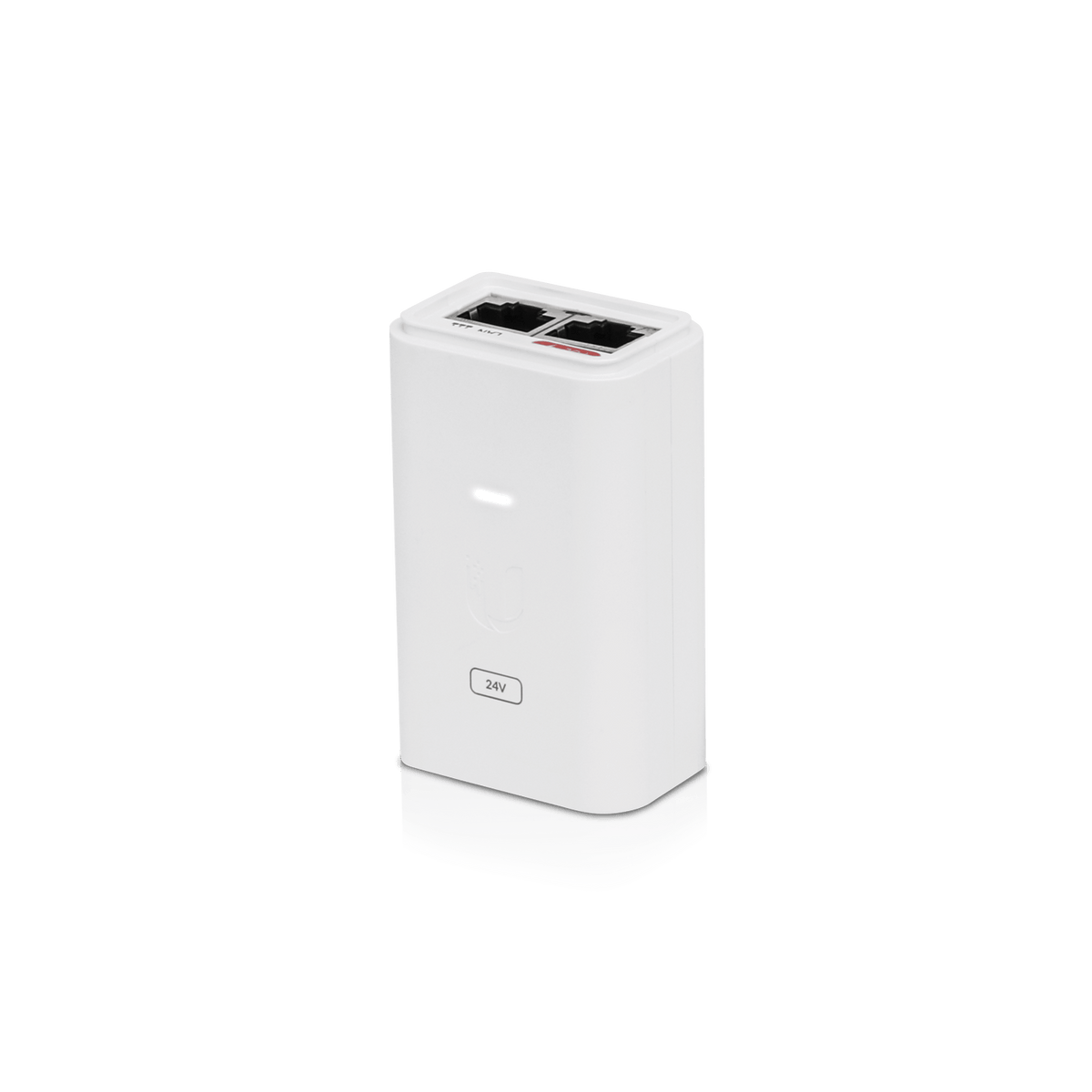

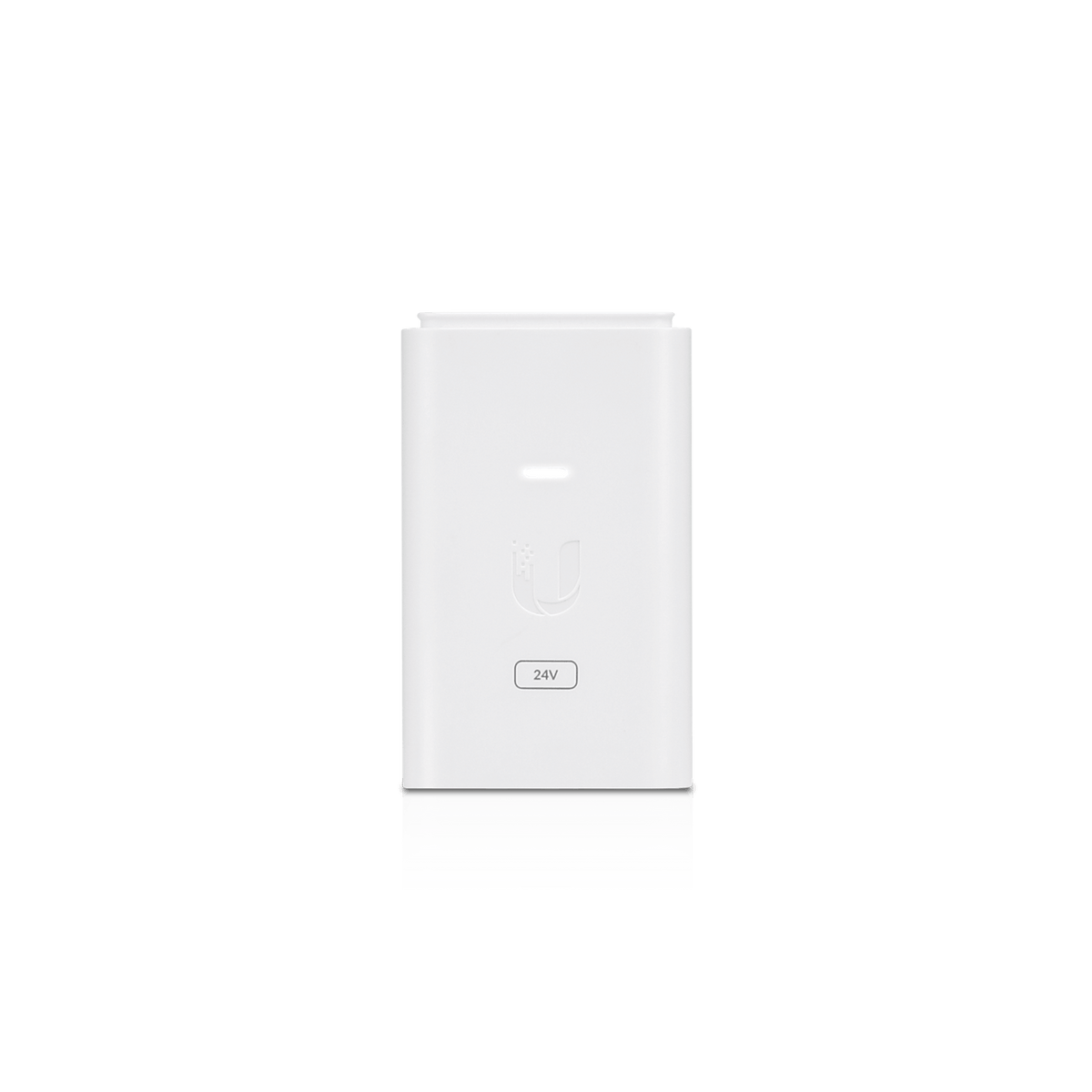

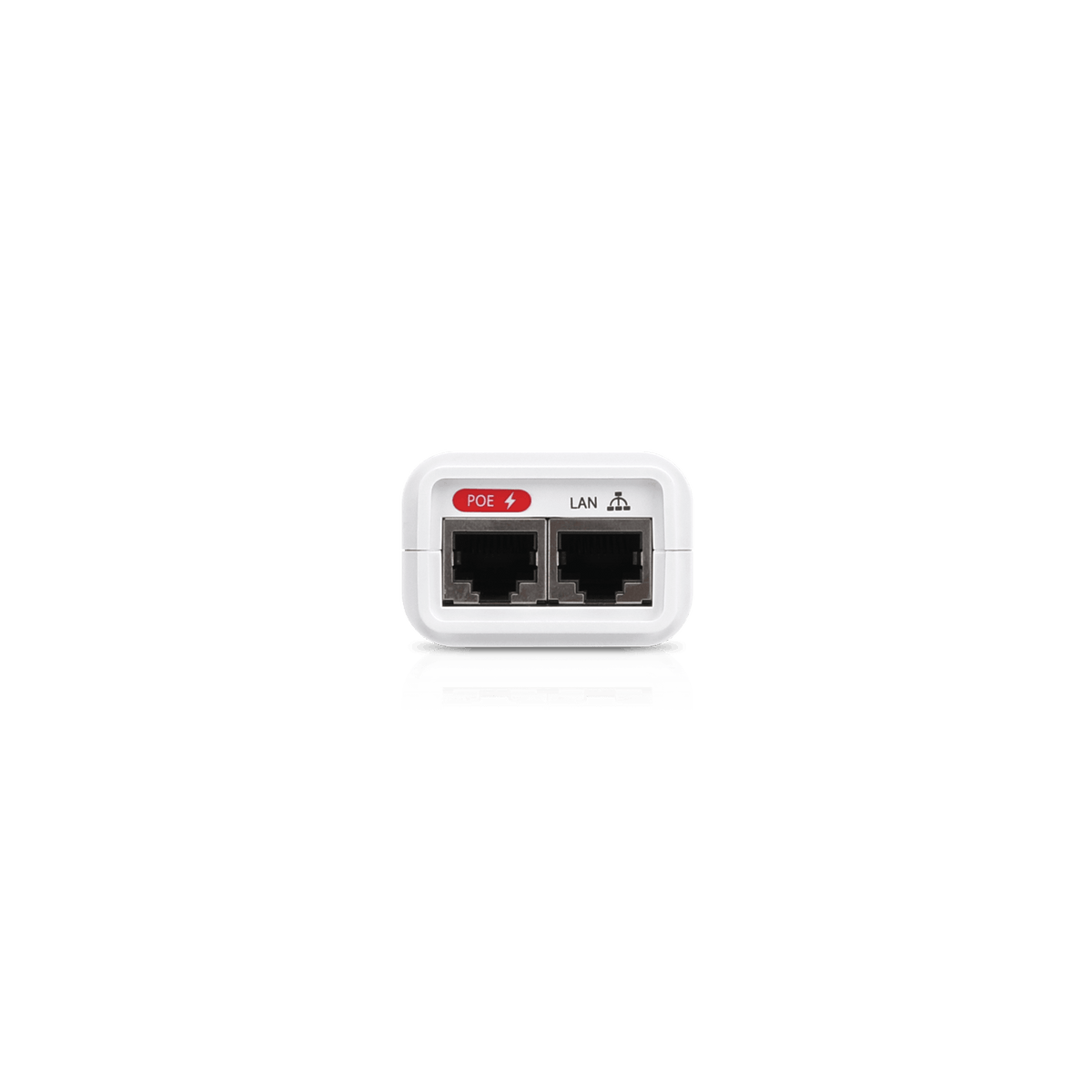

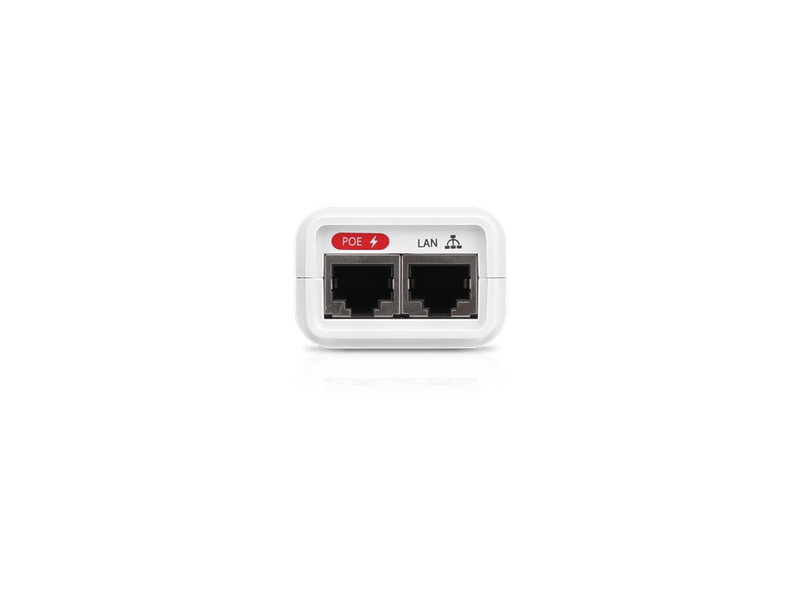

Ubiquiti POE-24-7W-G-WH 24VDC 3A 7W Gigabit PoE Adapter - White
- 24VDC Output Voltage Rating
- 3A Output Current Capacity
- 7W Power Rating
- Gigabit Ethernet Compatibility
- Wide 100-240VAC Input Range
- Compact Form Factor: 87x44x29mm
- Lightweight Construction: 91.7g
- Certified by CE, FCC, IC, UL
THE UBIQUITI POE-24-7W-G-WH POE ADAPTER (FOCUSES ON BENEFIT) COMBINES POWER AND PROTECTION IN WHITE.
Power over Ethernet (PoE) adapter, in sleek white, from Ubiquiti offers an elegant and easy way to power your compatible devices. It guarantees seamless functioning for numerous Ubiquiti products by providing 24VDC at 0.3A. Surge protection ensures the safety of your equipment, and the waterproof design (IP certification) permits flexible indoor or outdoor placement.
Its size does not deceive you. Strong as hell is the Ubiquiti POE-24-7W-G-WH PoE Adapter. Numerous Ubiquiti devices can be powered by this Gigabit PoE injector, which provides 24VDC at 0.3A. With its waterproof structure and small design, it provides a dependable and adaptable solution for your network requirements. The clean elegance of the white finish fits well in any setting.

DEVICE PROTECTION
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
CONVENIENT WALL-MOUNTING
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.
SEAMLESS AIRGATEWAY COMPATIBILITY
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway to bridge airMAx connections to Wi-Fi at customer locations.
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Specifications
Model | POE-24-7W-G-WH |
Dimensions | 72 x 45 x 33 mm (2.84 x 1.75 x 1.33") |
Weight | 72.1g (2.54 oz) |
Output Voltage | 24VDC @ 0.3A |
LAN Activity Indicator | No |
Gigabit LAN Port | Yes |
Remote Reset Capability | Yes |
Reset Button | Yes |
Rated Voltage | 100-240VAC @ 50/60Hz |
Input Current | 0.3A @ 120VAC, 0.2A @240VAC |
Inrush Current | <40A Peak @ 120VAC, <70A Peak @ 230VAC |
Efficiency | 80+% |
Output Ripple | 1% Max. |
Switching Frequency | 65 kHz |
Line Regulation | ≤ 3% |
Load Regulation | ≤ 5% |
2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
4-Pair Powering | – |
Operating Temperature | 0 to 40°C (32 to 104°F) |
Storage Temperature | -30 to 70°C (-22 to 158°F) |
Operating Humidity | 35 to 95% Non-Condensing |
AC Connector | IEC-320 C6 |
Data IN / PoE | RJ45 Shielded Socket |
Surge Protection | Difference and Common Mode |
Clamping Protection | 11V Data, 60V Power |
Max. Surge Discharge | 1500A (8/20 μs) Power |
Peak Pulse Current | 36A (10/1000 μs) Data |
Shunt Capacitance | <5 pf data |
Response Time | <1 ns |
Certifications | CE, FCC, IC, UL |
