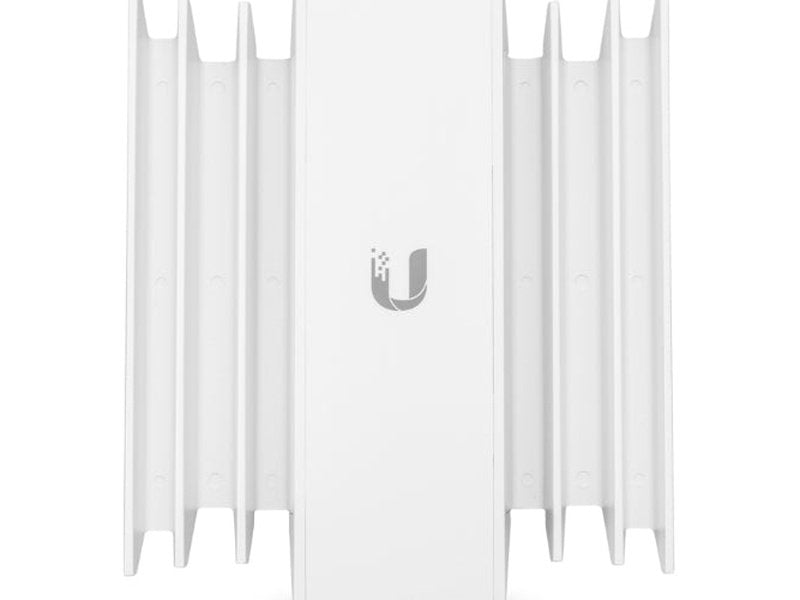

Ubiquiti airMAX Horn5 5GHz 90deg Horn Antenna - Horn-5-90

Save $50.00
UbiquitiSKU: Horn-5-90

UBIQUITI PRISM AP airMAX® ac Beamwidth Sector Isolation Antenna Horn 90 degree ( PrismAP-5-90)

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$88.00 Regular price$138.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description


Ubiquiti 5GHz 90 Degree Isolation Antenna Horns for airFiber LTU and airMAX (HORN-5-90)


Modular Design

With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam‑shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co‑location performance without sacrificing gain.

Scalability

There are two symmetrical horn antennas:

   Horn-5-30: 30 beamwidth

   Horn-5-45: 45 beamwidth

These models offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

There are two asymmetrical horn antennas:

   Horn-5-60: 60 beamwidth

   Horn-5-90: 90 beamwidth

These models have naturally attenuated side lobes and extremely low back radiation. They offer best

5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.
- Improved beam shaping
- Enhanced co-location performance
- Single button release for ease of changing antennas
- Compatible with airFiber, LTU and airMAX radios

Specifications

Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46")
Weight 920 g (2 lb)
Supported Frequency Range 5.15 -5.85 GHz
Gain 13 dBi
HPOL Beamwidth 90°
VPOL Beamwidth 90°
Elevation Beamwidth 45°
Maximum VSWR 2:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 46 N @ 200 km/h (10.3 lbf @ 125 mph)
Polarization Dual-Linear
Cross-Pol Isolation 17 dB
