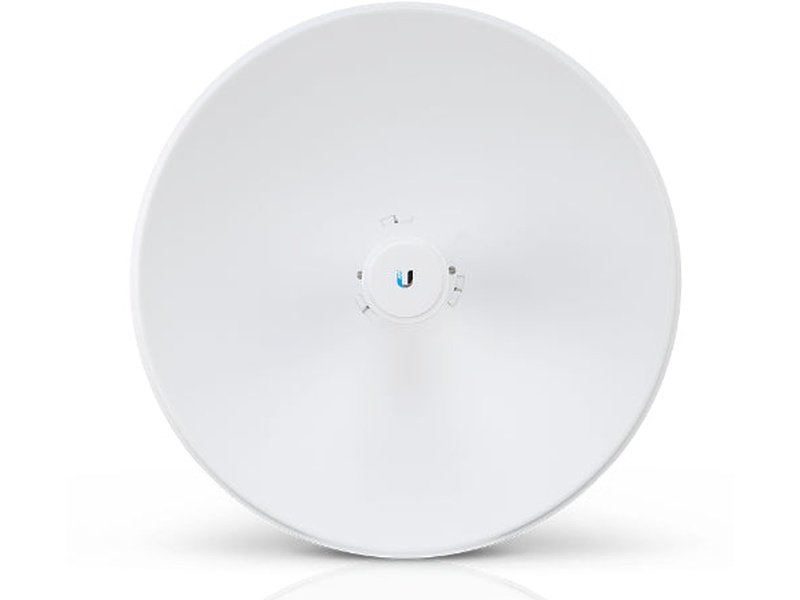

Ubiquiti airMAX PowerBeam 5AC Gen2 Antenna

UbiquitiSKU: PBE-5AC-GEN2

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$242.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

Overview

High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up to 450+ Mbps data throughput.
- 5 GHz, 15+ km link range
- 450+ Mbps throughput
- Improved mounting
- Dedicated spectral analysis radio
- Dedicated WiFi management radio

Specifications

Mechanical
Dimensions 420 x 420 x 230mm (16.54 x 16.54 x 9.06")
Weight 2.22 kg (4.89 lb)
Enclosure materials UV-stabilized plastic, powder-coated SPCC
Wind loading 380 N at 200 km/h (85.4 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Mounting Pole mount kit (Included)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. power consumption 8.5W
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range 20—26V DC
ESD/EMP protection Air/contact: ± 24 kV
LEDs (1) Power, (1) LAN, (4) WLAN
RoHS compliance Yes
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 70 C (-40 to 158 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 25 dBi
Channel sizes PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 - 2472 MHz
US/CA 2412 - 2462 MHz
