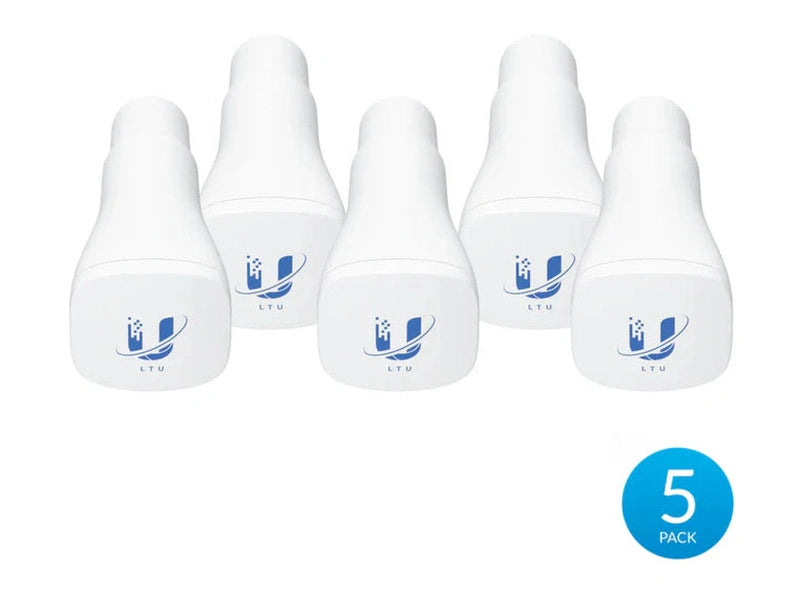

Ubiquiti LTU Instant Antenna 5-pack

UbiquitiSKU: LTU-Instant-5

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)ℹ️Item is currently not in PCLAN,
but is available from the supplier for you to order now.
(Dispatch time 1-3 business days)

🟢 Live Stock Availability: 20

Price:
Sale price$116.00

Checkout securely with

 More payment options

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview

5 GHz LTU client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.

900+ Mbps throughput*

22 dBi high-gain antenna with InnerFeed® technology

Easily integrates with LBE 5AC Gen 2 deployments

Includes (5) feeds and (5) PoE adapters

*FW version 2.3.0 and later.


Compatibility: LBE-5AC-GEN2

Technical Specification

Mechanical
Dimensions Feed: 201.5 x 64.2 x 56.2 mm (7.9 x 2.5 x 2.2")
Antenna: 358 x 271.9 x 288.5 mm (14.1 x 10.7x 11.4")
Weight Feed: 215 g (7.6 oz)
Antenna: 890 g (2 lb)
Antenna with mount: 1.1 kg (2.4 lb)
Enclosure material UV-stabilized polycarbonate
Wind loading 275 N at 200 km/h (61.8 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Supported voltage range 22—27V DC
Max. power consumption 9W
RF connections Internal
LEDs Power/Ethernet
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Modes PtMP CPE, PtP*
*1.5.1 and later 1.5.x series firmware.
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment Yes
Auto power adjustment Yes
Network Bridge/Router* mode
*Router mode is available in PtMP CPE mode only.
Security Yes
Statical reporting Yes
Management interface Bluetooth management for easy setup over UISP App
WEB UI
Minimum software requirements Any modern web browser
iOS™ or Android™ based smartphone
System
Maximum throughput 900+ Mbps*
*FW version 2.3.0 and later.
Encryption WPA2-PSK (AES)
Uplink/downlink ratio 25/75, 33/67, 50/50
RF
Operating frequency* 5.15 to 5.95 GHz
*Depends on regulatory region.
Max. conducted TX power 22 dBm (per chain)
Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later.
Antenna gain 22 dBi
Isolation 20 dB
