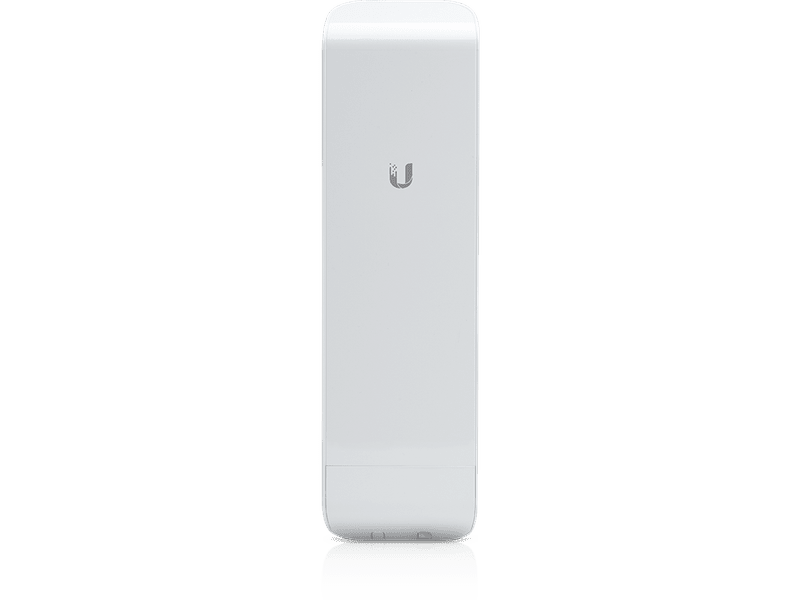

Ubiquiti Nanostation NSM2 802.11b/g/n MIMO Antenna

UbiquitiSKU: NSM2

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$173.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

Overview

Indoor/Outdoor airMAX 2.4 GHz CPE.

2.4 GHz frequency band

Cost-effective, high-performance

Plug-and-play integration with airMAX antennas




Technical Specification

Mechanical
Dimensions 294 x 31 x 80 mm (11.6 x 1.2 x 3.2")
Weight 400 g (14.1 oz)
Enclosure material Outdoor UV-stabilized plastic
Mounting Pole-mount (Kit included)
Hardware

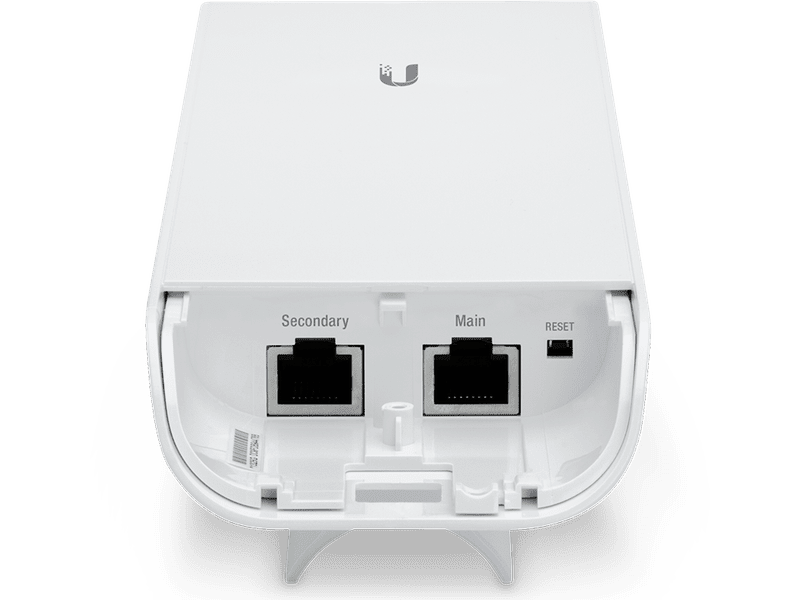

Networking interface (2) 10/100 MbE RJ45 ports
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A PoE adapter (Included)
Supported voltage range 22–27V DC
Max. power consumption 5.5W
Ambient operating temperature -30 to 75° C (-22 to 167° F)
Ambient operating humidity 5 to 95% noncondensing
Shock & vibration ETSI300-019-1.4
Certifications FCC, ICC, CE, RoHS
System
Frequency 2.4 GHz
Operating frequency 2412-2462 MHz
Gain 10.4-11.2 dBi
Cross-pol isolation 23 dB Min.
Max. VSWR 1.6:1
Beamwidth 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization Dual linear
