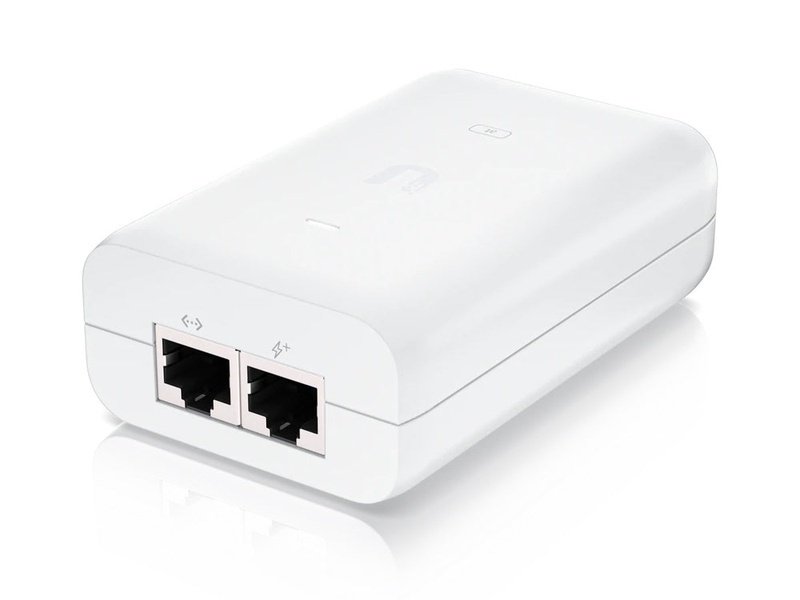

Ubiquiti Networks UniFi 802.3at 30W PoE+ Injector

UbiquitiSKU: U-POE-at

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$44.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

Overview

An adapter that can power UniFi PoE+ devices with wireless mesh applications, or offload PoE switch power dependencies.
- Delivers up to 30W of PoE+
- Additional power drives devices such as U6 LR, U6 Enterprise, Camera DSLR, and other PoE+ devices
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring

Specifications

Model U-POE-at
Dimensions 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
Weight 156 g (5.5 oz)
Output voltage 48V DC @ 0.65A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 0.75A Max.
Inrush current <100A peak at 26_
Efficiency 87%
Output ripple 1% max.
Switching frequency 70 kHz max.
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and 7, 8 (-)
4-pair powering No
AC connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 _s) power
Peak pulse current 36A (10/1000 _s) data
Shunt capacitance <5 pF data
Response time <1 ns
Operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL
