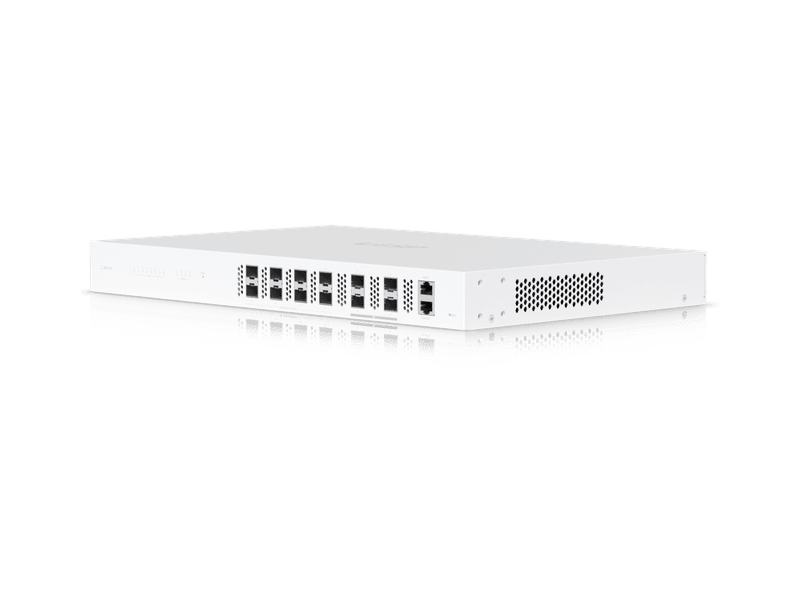

Ubiquiti UISP Fiber OLT XGS Eight-port Optical Line Terminal Deliver 10 Gbps Uplink/Downlink Speeds

UbiquitiSKU: UISP-FIBER-OLT-XGS

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$3,222.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

Overview

An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.

XGS-PON 10 Gbps bi-directional capacity

2048 Client capacity (8 ports)

(4) 25G SFP28 uplink ports

1U rack mount

AC/DC power module redundancy support


Technical Specification

Mechanical
Dimensions 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight 5.29 kg (11.7 lb)
Enclosure material SGCC steel
Hardware
Networking interface (8) XGS/XG/GPON ports
(4) 1/10/25G SFP28 ports*
*The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Management interface Ethernet out-of-band
Ethernet in-band
RJ45 serial console port
Bluetooth
Memory 512 MB DDR3
Onboard flash storage 64 MB NOR + 512 MB NAND
Power method (1) Universal AC input, 100-240V AC, 50/60 Hz
Power supply (2) Hotswap AC/DC PSU
Supported voltage range 100–240V AC
Max. power consumption 70W
Button (1) Factory reset
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 10 to 95% non-condensing
Certifications CE, FCC, IC
LEDs
System Slow blinking white: system is booting
Fast blinking white: reset to default
Blinking white/blue: system is upgrading
Slow blinking blue: system is connecting to UISP
Fast blinking blue: locate system
Steady white: system is ready
Steady blue: system is ready and connected to UISP
MGMT port (1) White, steady on after link is up
PON ports (8) Steady white: PON link
SFP28 ports (4) White, steady on after link is up
