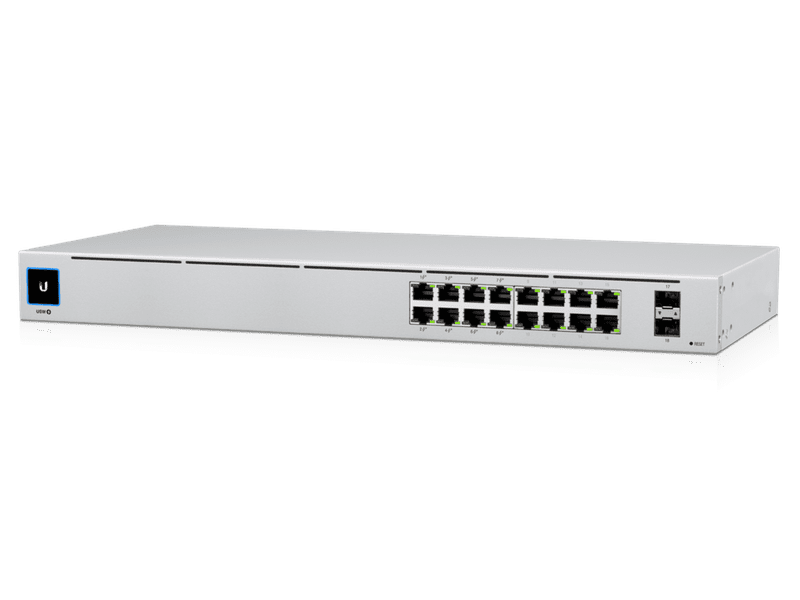

Ubiquiti UniFi USW-16-POE 16-Port Gigabit Managed Switch w/ 8-Port PoE+ 42W

UbiquitiSKU: USW-16-POE

Ubiquiti Unifi Gigabit PoE Switch, 8x Gigabit PoE Ports, 8x Gigabit Ports, Up to Layer 2 Management, Total PoE Budget 42 Watt

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$576.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

Ubiquiti UniFi 16-Port Managed PoE+ 42W Gigabit Switch [USW-16-POE]



A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.
- (8) GbE PoE+, (8) GbE ports
- (2) 1G SFP ports
- 42W total PoE availability
- Fanless, silent cooling

Specifications


Mechanical
Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Weight Without mounting brackets: 2.8 kg (6.2 lb)
With mounting brackets: 2.9 kg (6.4 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 18 Gbps
Switching capacity 36 Gbps
Forwarding rate 26.78 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 60W
Supported voltage range 100—240V AC
Max. power consumption 18W (Excluding PoE output)
Total available PoE 42W
Max. PoE wattage per port by PSE PoE+: 32W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
