Ubiquiti UniFi USW-PRO-48-POE 48-Port Gigabit PoE+ 195W Managed Switch w/ 4x SFP Port

UbiquitiSKU: USW-48-POE

Ubiquiti Unifi Gen 2 Gigabit PoE+ Switch, 16x Gigabit Ports, 32x Gigabit PoE+ Ports, 4x SFP Ports, Up to Layer 2 Management, Total PoE Budget 195 Watt

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,139.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store or have access to your credit card details.
Enjoy 0% surcharge on credit card payments.

Description

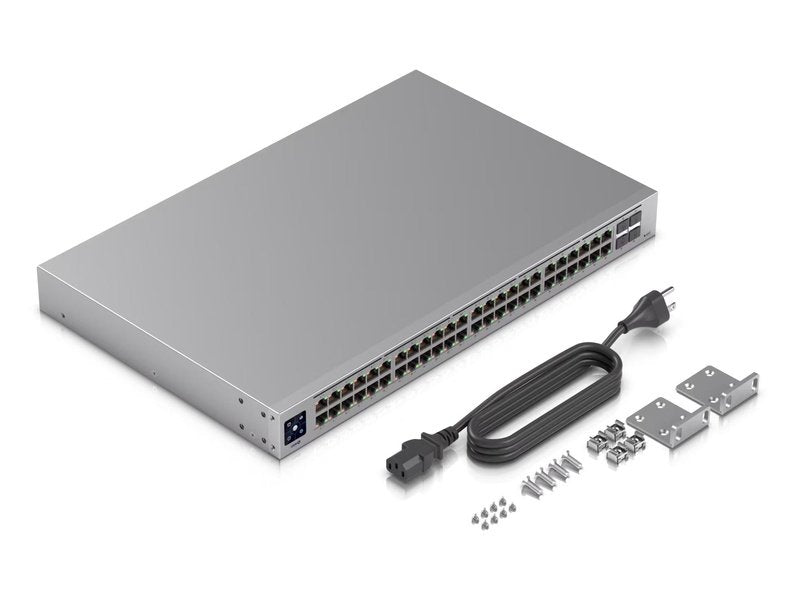

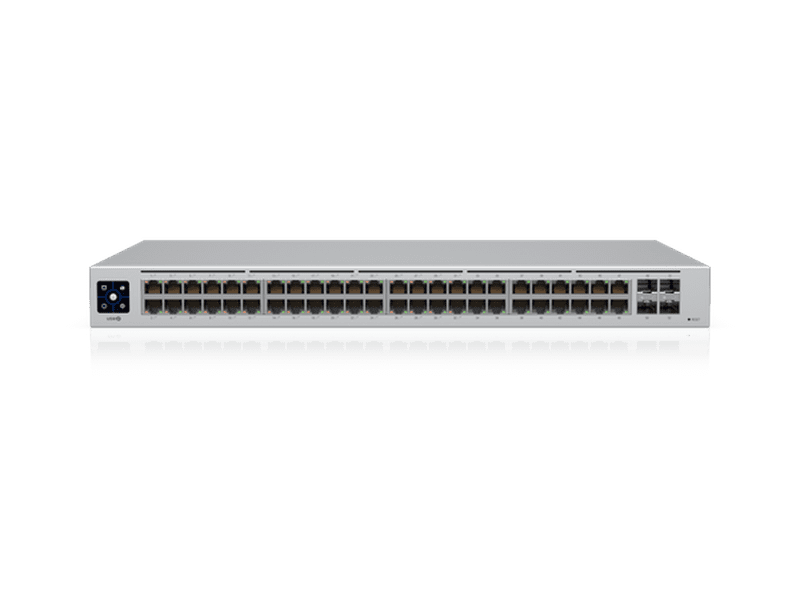

Ubiquiti UniFi 48-Port Gigabit PoE+ 195W Managed Switch [USW-48-POE]

Standard 48 PoE
USW-48-POE (195W)


A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.

  • (32) GbE PoE+, (16) GbE ports
  • (4) 1G SFP ports
  • 195W total PoE availability
  • Fanless, silent cooling



Specifications

Mechanical
Dimensions 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
Weight Without mounting brackets: 4.52 kg (9.97 lb)
With mounting brackets: 4.61 kg (10.16 lb)
Enclosure material SGCC steel
Hardware
Networking interface (48) GbE RJ45 ports
(4) 1G SFP Ethernet ports
Management interface Ethernet In-Band
Total non-blocking throughput 52 Gbps
Switching capacity 104 Gbps
Forwarding rate 77.38 Mpps
Power method 100—240V AC, 50/60 Hz, universal input
Power supply AC/DC, internal, 240W
Supported voltage range 100—240V AC
Max. power consumption 45W (Excluding PoE output)
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
PoE
Total available PoE 195W
PoE interfaces
Ports 1-32

PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE wattage per port by PSE
PoE+

32W
Voltage range PoE mode 44—57V
Voltage range PoE+ mode 50—57V
Application Requirements
UniFi Network Version 7.2.94 and later
