Description
Please note this is used switch with minor scratch power cable included come with 3 months warranty.
WS-C2960X-48LPD-L Overview
Cisco catalyst 2960X-48LPD-L LAN Base Layer 2 stackable switch is comprised of 48 Ethernet 10/100/1000 ports with POE+ and 2 x 10G SFP+ uplink interfaces.
Quick Specs
Figure 1 shows the appearance of WS-C2960X-48LPD-L.
Table 1 shows the Quick Specs
Product Code |
WS-C2960X-48LPD-L |
Enclosure Type |
Rack-mountable - 1U |
Feature Set |
LAN Base |
Uplink Interfaces |
2 x 10G SFP+ |
Ports |
48 x 10/100/1000 |
Available PoE Power |
370W |
Maximum stacking number |
8 |
Stack bandwidth |
80G |
Forwarding Performance |
130.9Mpps |
Switching Bandwidth |
216Gbps |
RAM |
512 MB |
Flash Memory |
128 MB |
Dimensions |
44.5 x cm x 36.8 cm x 4.5 cm |
Package Weight |
10.65 Kg |
Product Details

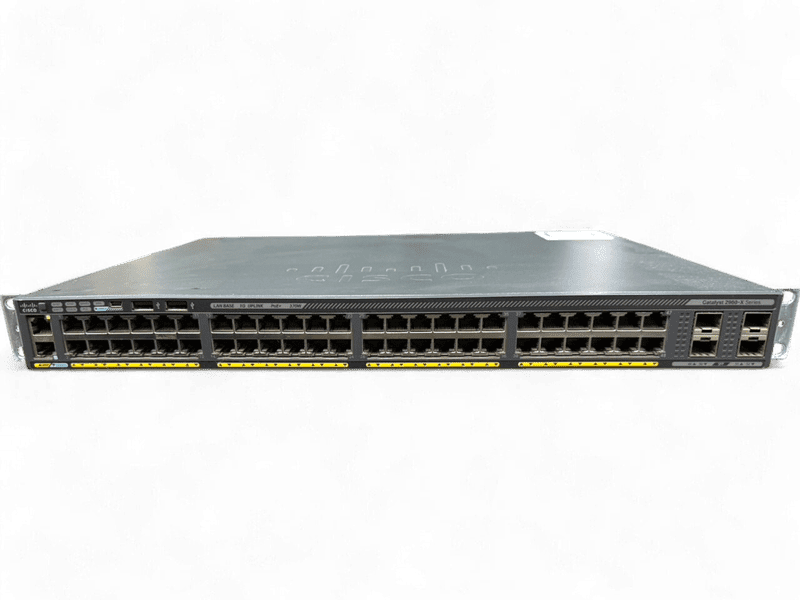

Figure 2 shows the front panel of the Cisco Catalyst 2960X-48LPD-L switch.
Note:
① Ethernet management port ② Mode button ③ Switch LEDs ④ USB mini-Type B (console) port ⑤ USB Type A ports
⑥ SFP module ports ⑦ 48 x 10/100/1000 ports ⑧ CONSOLE LED ⑨ MGMT LED ⑩ RJ-45 console port
·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.
·Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port
Figure 3 shows the back panel of the Cisco Catalyst 2960X-48LPD-L switch.
Note:
① FlexStack-Plus module slot and cover ② Fan Exhaust ③ RPS Connector ④ AC power connector
·External RPS supports redundant power.
Figure 4 shows the stackable capacity.
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
The Accessories
Table 2 shows some accessories of WS-C2960X-48LPD-L.
Models |
Description |
Catalyst 2960-X FlexStack Plus Stacking Module |
|
Cisco FlexStack Stacking Cables |
|
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
Console Cable 6ft with RJ45 and DB9F |
|
Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison of similar items.
Models |
WS-C2960X-48LPD-L |
|
Ports |
48 x 10/100/1000 |
48 x 10/100/1000 |
Uplinks |
2 x 10G SFP+ |
4 x 1G SFP |
Available PoE Power |
370W |
370W |
FlexStack-Plus Stacking |
Optional |
Optional |
Get more information
Do you have any question about WS-C2960X-48LPD-L?
Contact us now via Live Chat or sales@router-switch.com.
WS-C2960X-48LPD-L Specification
WS-C2960X-48LPD-L Specification |
|
Enclosure type |
Rack-mountable - 1U |
Ports |
48 x 10/100/1000 + 2 x 10G SFP+ |
Network management Interface |
10/100 Mbps Ethernet (RJ-45) |
Available PoE Power |
370W |
Forwarding bandwidth(Gbps) |
108Gbps |
Maximum stacking number |
8 |
Stack Bandwidth |
80 G |
Forwarding Performance |
130.9Mpps |
Switching bandwidth |
216Gbps |
Maximum active VLANs |
1023 |
MAC Address Table Size |
16K (default) |
CPU |
APM86392 600MHz dual core |
RAM |
256 MB |
Flash Memory |
64 MB |
Status Indicators |
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
Expansion / Connectivity |
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
Stacking cable |
Optional |
Power Redundancy |
Option (PWR-RPS2300) |
Voltage range (Auto) |
110V-240V |
Power Consumption Operational |
0.48KVA |
Miscellaneous |
|
Width |
17.5 Inches (44.5 cm) |
Depth |
14.5 Inches (36.8 cm) |
Height |
1.75 Inches (4.5 cm) |
Weight |
12.9 lb (5.9 Kg) |
Package Weight |
23.48 lb (10.65 Kg) |
Rack Mounting Kit |
optional |
MTBF in hours |
277,960 |
Compliant Standards |
● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.3 10BASE-T |
System software / license |
|
System software |
IOS LAN BASE |
license |
NERGY-MGT-100-K9, EW-DO-100-DE |
features |
●Jumbo Frames ●VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ●802.3ad LACP ●PVST/PVST+ ●802.1W/802.1S ●Port Fast/Uplink Fast ●port CoS Trust and Override ●Scheduling ●Priority Queuing ●Configure CoS Priority Queues ●Weighted Tail Drop ●DSCP transparency |
Network security |
●SSH, SSL and SCP ●RADIUS and TACACS+ ●SNMPv3 crypto ●802.1x ●802.1x Accounting / MIB ●802.1x w/ port security ●802.1x w/Voice VLAN ●802.1x Guest VLAN ●802.1x VLAN assignment ●802.1x MAC-Auth Bypass ●BPDU/Root Guard ●Port Security ●Private VALN Edge ●Storm Control ●Block unknown unicast and multicast ●IGMP Snooping ●IGMP Filter/Throttle |
Management and Troubleshooting |
●Auto-MDOX ●TDR ●UDLD ●IP SLA Responder ●layer 2 / IP Traceroute ●SPAN ●RSPAN ●Express Setup ●Device Manager ●Cisco Network Assistant ●Smartports + Advisor ●Troubleshooting Advisor ●Drag-and-drop Cisco IOS Upgrade ●IP Address DHCP ●Autoinstall with saved configuration ●Configuration Replace ●DHCP Auto Image Upgrade ●DHCP Port Based Allocation ●Error Disable MIB |
Environmental Ranges |
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to 40ºC) |
Short-term exception at sea level* |
23ºF to 131ºF (-5ºC to 55ºC) |
Short-term exception up to 5000 feet (1500 m)* |
23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m)* |
23ºF to 113ºF (-5ºC to 45ºC) |
Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF (-5ºC to 40ºC) |
Storage temperature up to 15,000 feet (4573 m) |
-13º to 158ºF (-25º to 70ºC) |
Operating altitude |
Up to 10,000 Feet (Up to 3000 Meters) |
Storage altitude |
Up to 13,000 (Up to 4000 Meters) |
Operating relative humidity |
10% to 95% noncondensing |
Storage relative humidity |
10% to 95% noncondensing |
