Description

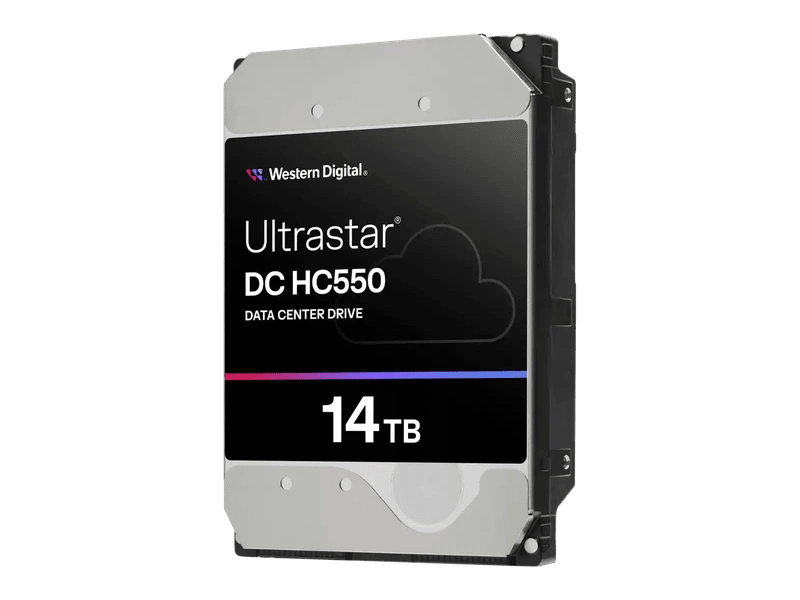

WD Ultrastar DC HC550 14TB 3.5" SATA 7200RPM SE Hard Drive [0F38581]
Internal hard drives with higher capacities and lower TCO
Data center decisions are driven by TCO. The Ultrastar DC HC550, with 14TB, 16TB & 18TB1, play a leading role in reducing TCO.
Total Cost of Ownership (TCO) Drives the Data Center Architecture
Data center decisions are driven by TCO. Higher capacity hard drives play a leading role in reducing TCO. An 18TB data center internal hard drive provides 29% more capacity in the same form factor as a 14TB HDD. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware and system level costs when compared to lower capacity drives. Helium-sealed, low power, high reliability drives reduce energy and maintenance costs, contributing to OpEx savings. For example, a data center using 18TB HDDs vs. 14TB HDDs can require 22% fewer racks while consuming 21% less power per TB at idle, resulting in significant overall TCO reduction for data center environments.
Raising the Capacity Bar with New Technologies
Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. 18TB capacity is achieved by combining technologies that improve areal density working together with technologies that improve performance and reduce power consumption.
● The first internal hard drives in the industry to harness Energy-Assisted Magnetic Recording (EAMR) technology improves writability and therefore increases areal density.
● The industry’s first Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density.
● HelioSeal® technology is the foundation for Western Digital’s high capacity HDDs and this is the 6th generation of HelioSeal product. Western Digital has shipped >65 million HelioSeal products to date.
Specifications
Capacity | 14TB |
Form Factor | 3.5-Inch |
Connector | SATA |
Interface | SATA, SAS |
Transfer Rate | Up to 262MB/s |
Disk Speed (RPM) | 7200 RPM |
Recording Technology | Energy Assisted Magnetic Recording (EAMR) |
Cache Size | 512MB |
Security | SE |
Warranty | 5-Year Limited Warranty |
Dimensions (L x W x H) | 147mm x 101.6mm x 26.1mm |
Weight | 690g |
Operating Temperature | 5°C to 60°C |
Non-Operating Temperature | -40°C to 70°C |
Drive | 3.5" |
Certifications | BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL |
Product Features | - CMR technology for enterprise applications - First HDD with EAMR technology - First with Triple Stage Actuator - HelioSeal design for power efficiency |
Compatibility | Windows, Windows Server, Linux |
