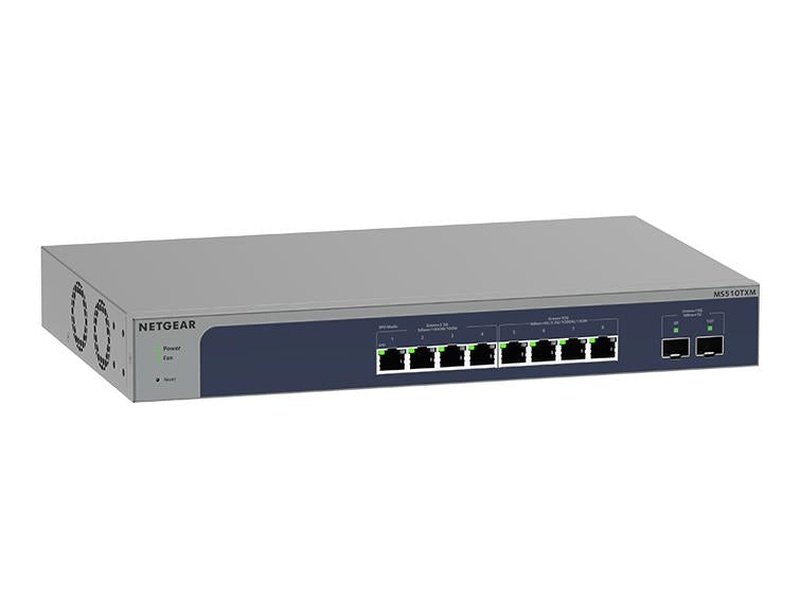

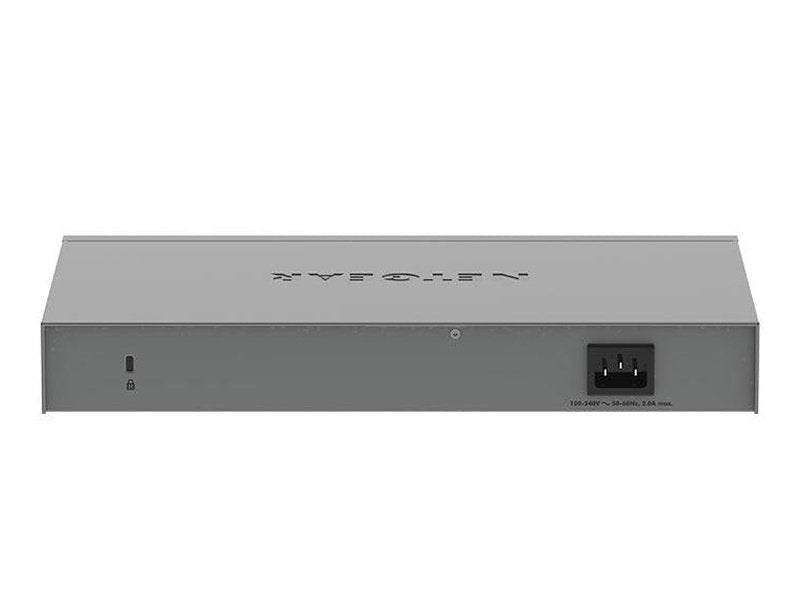

Netgear MS510TXM 8-Port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ Port

NetgearSKU: MS510TXM-100AJS

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$931.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

8-Port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ Ports - MS510TXM-100AJS

Everest_MS510TXM_PDP_Hero-Image

Multi-Gigabit Ethernet Smart Switches (MS510TXM)

Provides 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. Includes 1-year of Insight Premium or Pro subscription.

Video

Meet the NETGEAR 8-Port Multi-Gigabit Switch (MS510TXM) & 8-Port Ultra60 PoE++ Switch (MS510TXUP)


Features

everest-ms510txm-pdpcarousel-swimlane-image-1

NETGEAR IP Camera and WiFi Automation

  • Simplify the onboarding process of IP cameras and wireless access points to provide better Quality of Service (QoS) and auto-enabling multicast with the Auto-Camera and Auto-WiFi feature
  • Provides classification for digital camera and wireless access point packets
  • Automatically placed in a camera and wireless access point VLAN and then be prioritized above other packets




everest-ms510txm-pdp-carousel-swimlane-image-2

Room to Move

5 different ports available: 1G, 2.5G, 5G, 10G; SFP+ and Copper



everest-ms510txm-pdp-carousel-swimlane-image-3

Secure Your Data

Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection


everest-ms510txm-pdpcarousel-swimlane-image-4

Cloud Management

Optional remote access for configuration, management, and monitoring through the NETGEAR Insight Cloud Portals

MANAGEMENT

Traffic Management

  • Auto Negotiation of speed and duplex modes
  • IEEE 802.3x Flow Control
  • Dynamic MAC address management
  • IEEE 802.1Q-based VLAN
  • Auto Voice VLAN
  • Auto Video VLAN (selected models)
  • VLAN routing (selected models)
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 801.2p-based QoS
  • TCP/UDP-based QoS
  • DiffServ
  • IPv4 and IPv6-based QoS (selected models)
  • DSCP Support
  • Rate Limiting (ingress, or egress)
  • Link Aggregation and LACP

Switch Management

  • Insight mobile app or Insight Cloud Portal
  • Web browser-based management GUI
  • Smart Control Center Software for multi-switch management
  • IP Access List
  • IPv6 Management
  • Configurable Management VLAN
  • SNMP v1/v2c and v3
  • Standard MIBs (RFC1213, RFC1643, and RFC1493)
  • RMON group 1, 2, 3, 9
  • Firmware Upgrade through Smart Control Center (TFTP)
  • Firmware download (to switch) and upload (to server) through TFTP/HTTP
  • Configuration and Image Upload (to PC) through HTTP
  • Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
  • Memory & FLASH log
  • Syslog (server)
  • System password protection

SECURITY

Security

  • MAC lockdown
  • MAC lockdown by number of MACs
  • IEEE 802.1x port authentication
  • Dynamic VLAN Assignment
  • Guest VLAN
  • TACACS+
  • 3 HTTPS /SSL versions
  • TLS session
  • Trusted MAC
  • IPv4, L4-based Access Control List (ACL)
  • IPv6-based ACL (selected models)

Multicast Efficiency

  • IGMP snooping, v1, v2 and v3
  • IGMP Snooping querier
  • Blocking of unknown multicast traffic
  • MLD snooping

Spanning Tree, Routing and Stacking

  • IEEE 802.1D, IEEE 802.1w RSTP and MSTP
  • Option to enable/disable BPDU flooding when STP is disabled
  • Static routing with 32 static routes (Selected models)
  • Hosted ARP table size of 512 (Selected models)

RELIABILITY

Reliability, Performance and Troubleshooting

  • Port mirroring both on ingress and egress traffic
  • Jumbo frame support
  • Broadcast Storm control
  • Cable diagnostics
  • Loop Detection
  • DoS Prevention
  • IEEE 802.1ab LLDP
  • LLDP-MED
  • Dual Image
  • SNTP
  • Option to enable/disable the flooding of EAPOL when 802.1x is disabled
  • Protected ports
  • DNS client
  • DHCP clients
  • DHCP snooping
  • Ping and traceroute client
  • Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)



Specifications

Feature Description
Multi-gigabit copper ports 4 (1G/2.5G)
Multi-gigabit/10 Gigabit copper ports 4 (1G/2.5G/5G/10G)
SFP+ ports 2
Max MAC entries 32K
Buffer size 16Mbit
VLAN (Number Supported) 256
VLAN routing Yes
Dynamic VLAN assignment Yes
MLD Snooping Yes
Static route Yes (32)
Host ARP table 512 ARP
EEE Yes
DoS Prevention Yes
Internal/External PSU Internal
Max power (worst case, all ports used, line-rate traffic) 47W
Fans 2
Acoustic Noise Level @25C 25.0 dBA
Operating Temperature 0 to 50°C (32 to 122°F)
MTBF 1,059,519 hrs (121 yrs)
Dimensions (W x D x H) 330 x 206 x 43 mm (13.0 x 8.12 x 1.7 in)
Weight 2.08 kg (4.25 lb)
Warranty This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability, and terms and conditions.
Support ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days. Remote diagnostics performed by technical experts for prompt resolution of technical issues. ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
